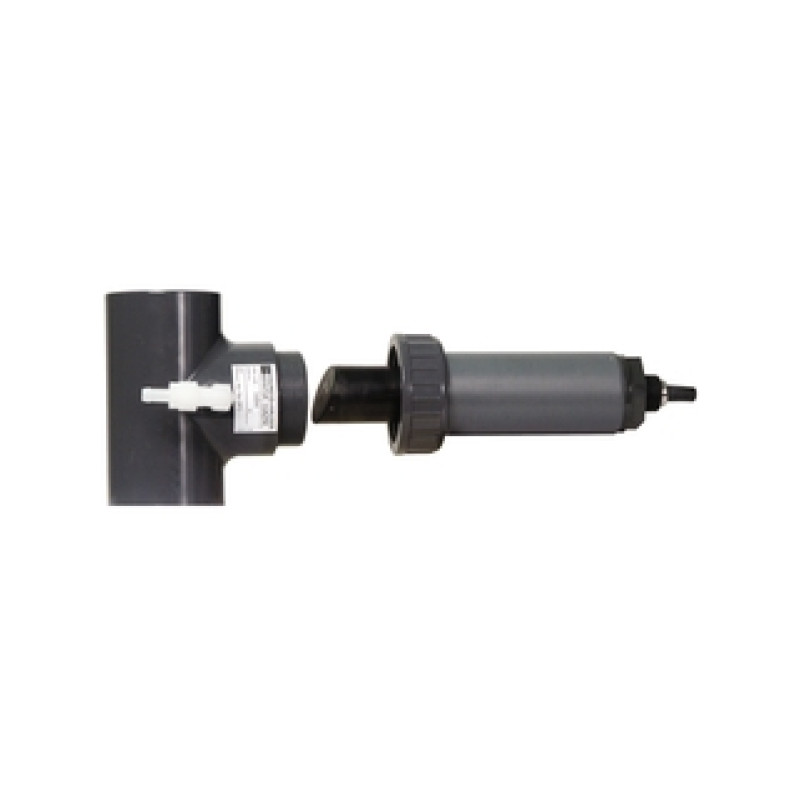

CUA250 Flowfit Turbidity assembly

Flow assembly for water and wastewater applications

• Measuring principle

  Single beam scattered light

• Application

  Waste water, industrial water

• Installation

  Flow through holder for pipe or bypass installations

• Characteristic

  Flow through holder for the turbidity sensors CUS31/41, blackened inside to minimize light reflexions.

• Design

  Flow through holder optional with spray head for a manual or automatic cleaning of the sensor head inside the holder with the cleaning device CUR3.

• Material

  Holder body : PVC
  Sealing : EPDM

• Dimension

  Diameter : 100mm
  (3.94inch)Height : 196mm
  ( 7.64inch)

• Process temperature

  max. 50°C
  (max. 122°F)

• Process pressure

  max. 6bar
  (max.87psi)

• Connection

  Process connections :- Screw type : DN20/d25- Mounting in GF DN50/d63-pipe.
