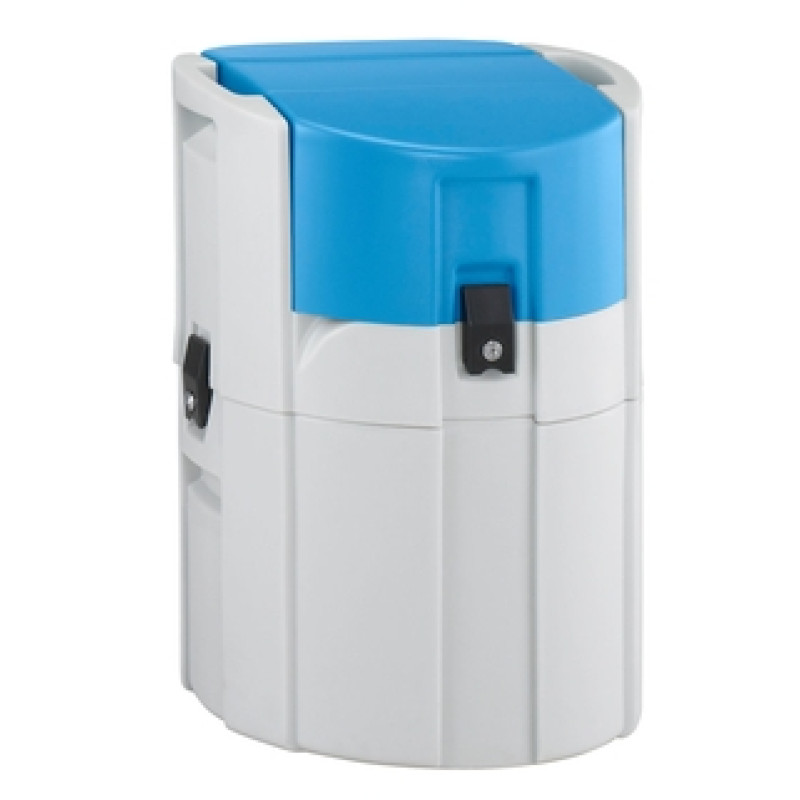

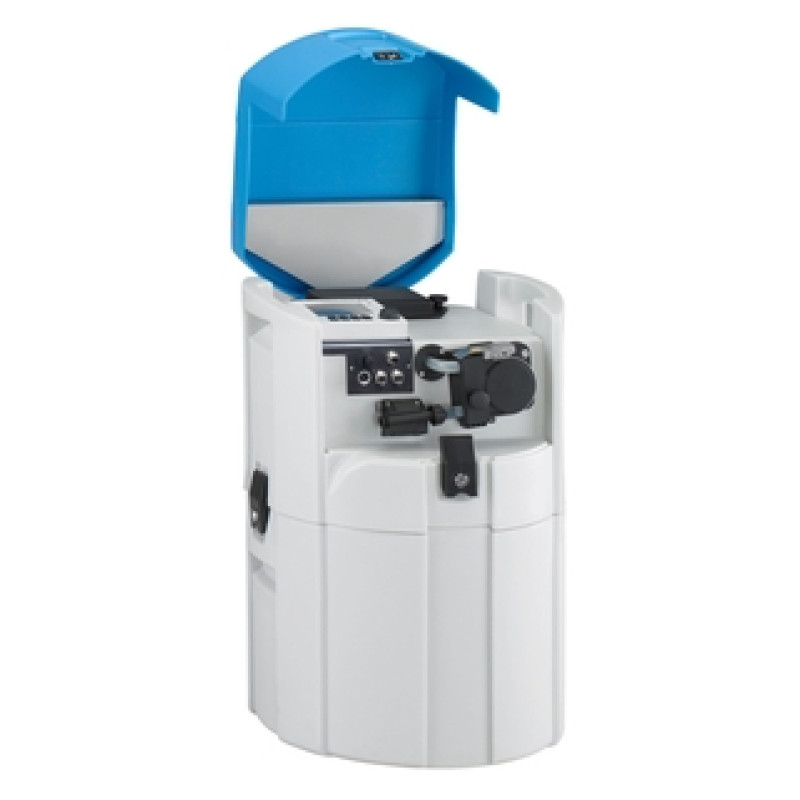

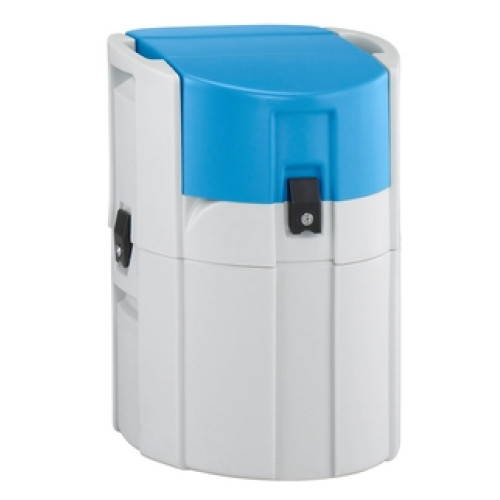

CSP44 Liquiport Portable automatic water sampler

Fully automatic sampling in water, wastewater and industrial applications

Previous: MultiSens C600R, RPC10, RPT10, Liquiport 2000 RPT20, RPORD, RPORA

• Measuring principle

  Sampler

• Functions

  Portable sampler

• Dosing system

  Peristaltic pump

• Suction height

  8 m (26.25 ft) Suction height

• Cabinet

  Plastic LDDPE

• Distribution

  Possible

• Cooling

  Passive: crashed ice
  Freezer cartridge

• Input

  Analog: 2, galvanically isolated
  Binary: 2, galvanically isolated

• Output / communication

  Binary: 2, galvanically isolated

• Data logger

  Logbook for all data
  Sampling statistics

• Power supply

  90 to 260VAC (charging/operation)
  24VDC battery

• Dimension

  480 x 675 mm (dxh)
  (18.90 x 26.57 inch)

• Weight

  19 kg (41.88 lb) with battery

• Accessories

  Battery charger
  Suspension harness
  Suction line

• Options

  M12 connection to digital sensors with Memosens protocol
