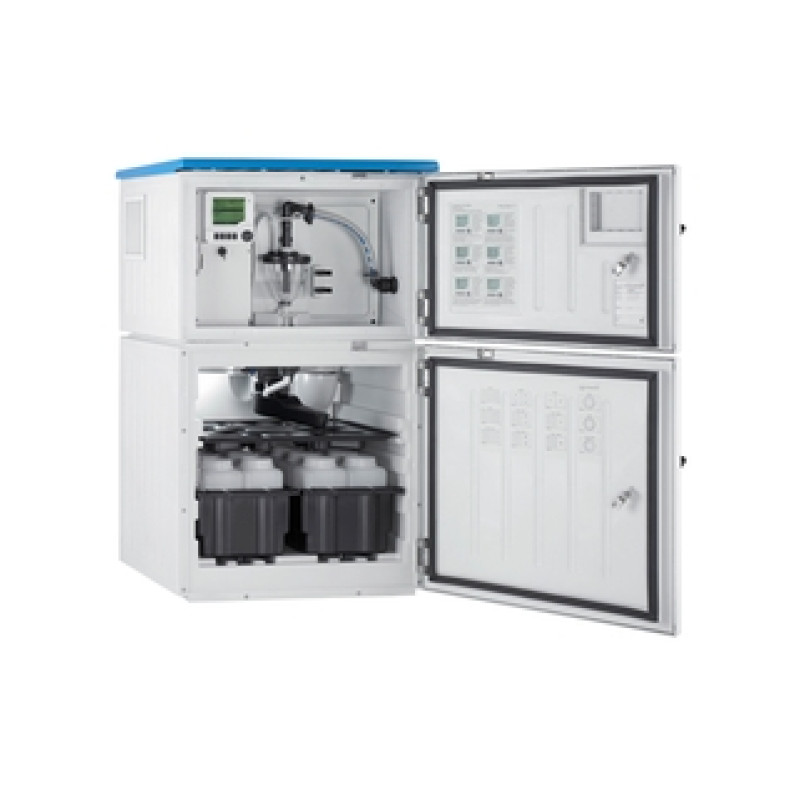

CSF34 Liquistation Automatic water sampler

PLEASE ASK FOR PRICE!

Fully automatic sampling in water, wastewater and industrial applications

• Measuring principle

  Sampler

• Functions

  Stationary sampler

• Application

  Sampling from liquids

• Dosing system

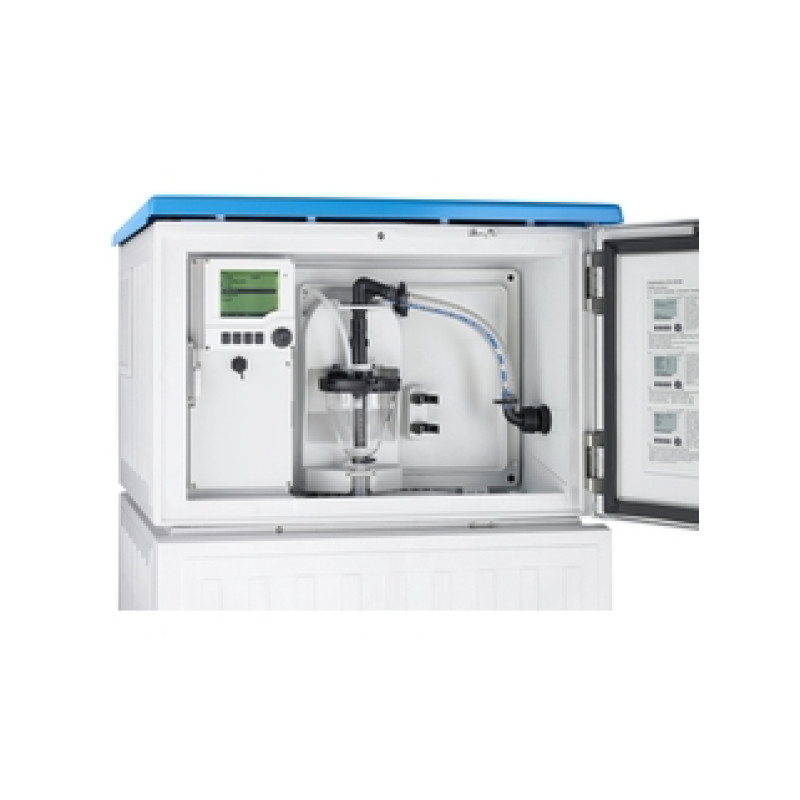

  Vacuum pump system

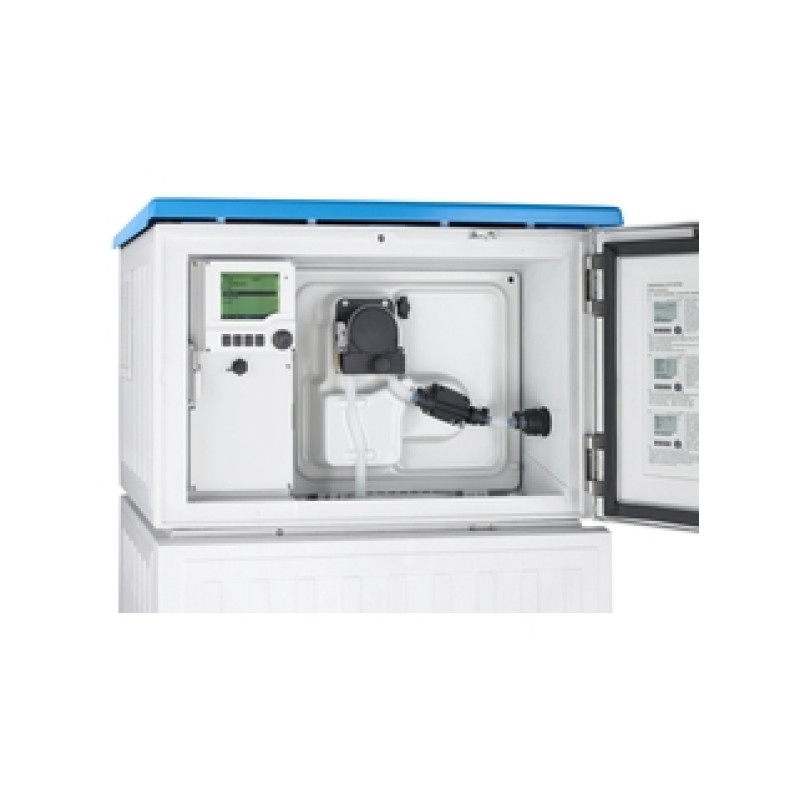

  Peristaltic pump system

• Suction height

  8m (26.25ft)

• Installation

  all weather outdoors

• Cabinet

  Plastic ASA+PC

• Distribution

  possible

• Process temperature

  Sample temperature 2 to 50°C (36 to 122°F)

• Cooling

  active, dynamic cooling unit

• Process pressure

  max 0,8bar ( 11.6PSI)

• Heating

  Evaporator and defrosting unit mounted in compact housing

• Input

  Analogue: 2, galvanically isolated
  Binary: 2, galvanically isolated
  Optionl: 1 to 4 digital sensor inputs

• Output / communication

  Binary: 2, galvanically isolated
  Optionl: 2 to 6 relay, 2 to 6 current outputs

• Interface

  CDI
  Optional Ethernet, PROFIUS DP, Modbus RS485, Modbus TCP

• Data logger

  All events and data
  Sampling statistics

• Power supply

  100 to 120/200 to 240 VAC +-10%, 50/60Hz

• Dimension

  1258 x 753 x 625 mm (h x b x t)
  49.5 x 29.7 x 24.6 inch (h x w x d)

• Weight

  101kg
  223lbs

• Accessories

  Dosing system
  Housing equipment
  Electrical equipment

• Options

  Interface to digial sensors
  Fieldbuscommunication
