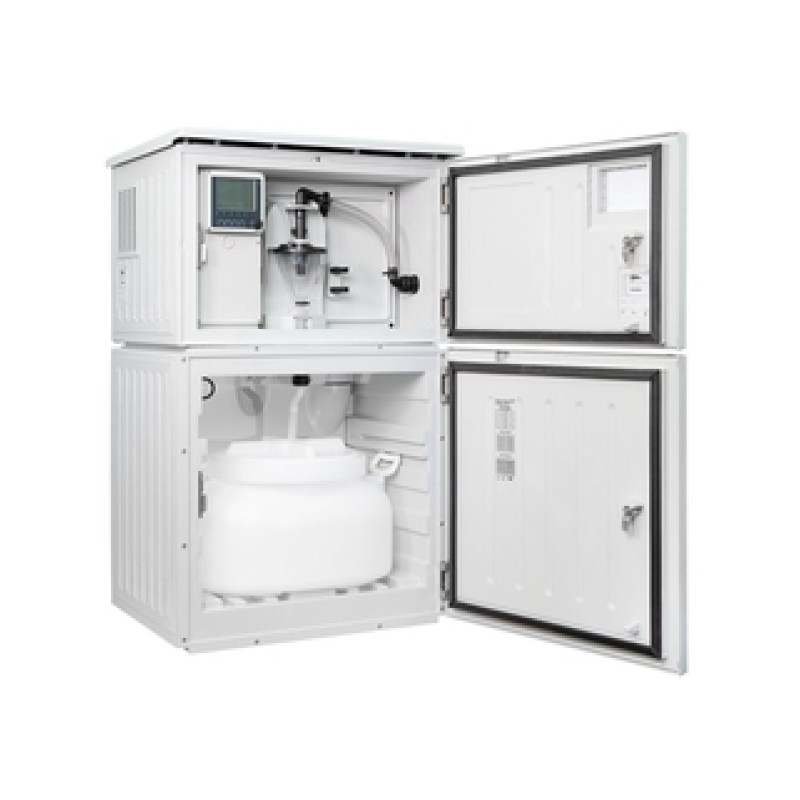

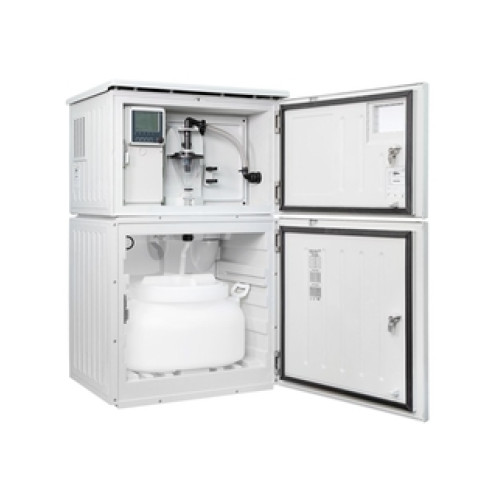

CSF28 Liquistation Automatic water sampler

Target-oriented and easy automatic sampling in water and wastewater applications

Previous: ASP Station 2000 RPS20B, CSF33

• Measuring principle

  Sampler

• Functions

  Stationary sampler

• Application

  Municipal and industrial wastewater treatment plants:
  - Self-monitoring
  - Process monitoring
  - Monitoring of dischargers
  Monitoring of wastewater systems, authorities and water management offices:
  - Water pollution control and water quality
  - Monitoring of dischargers

• Dosing system

  Vacuum pump system
  Peristaltic pump system

• Suction height

  6 m (19.69 ft) suction height
  8 m (26.25 ft) suction height

• Cabinet

  Plastic ASA+PC

• Distribution

  Possible

• Process temperature

  Sample temperature: 2 to 50 °C
  (36 to 122 °F)

• Cooling

  Active, dynamic cooling unit

• Process pressure

  Max. 0.8 bar
  (Max. 11.6 psi)

• Heating

  Evaporator and defrosting unit mounted in compact housing

• Input

  Analogue: 1, galvanically isolated
  Binary: 1, galvanically isolated

• Output / communication

  Alarm relay

• Interface

  CDI
  Optional: Webserver

• Data logger

  All events and data
  Sampling statistics

• Power supply

  100 to 120/200 to 240 V AC ±10 %, 50/60 Hz

• Dimension

  1.258 x 753 x 625 mm (h x w x d)
  49.5 x 29.7 x 24.6 inch (h x w x d)

• Weight

  101 kg

• Accessories

  Housing equipment
  Bottle configurations
  Hoses

• Options

  Webserver
