CSA420 Samplefit Sampling assembly

Assembly for taking samples in process applications

• Measuring principle

  Sampler

• Functions

  Pneumatic sampling assembly

• Application

  sampling from pressurized pipes

• Dosing system

  fixed sample volume 10, 30, or 50 ml

• Installation

  process connection Triclamp 2" or flange DN50

• Process temperature

  0 - 50°C

• Process pressure

  up to 6 bar

• Material

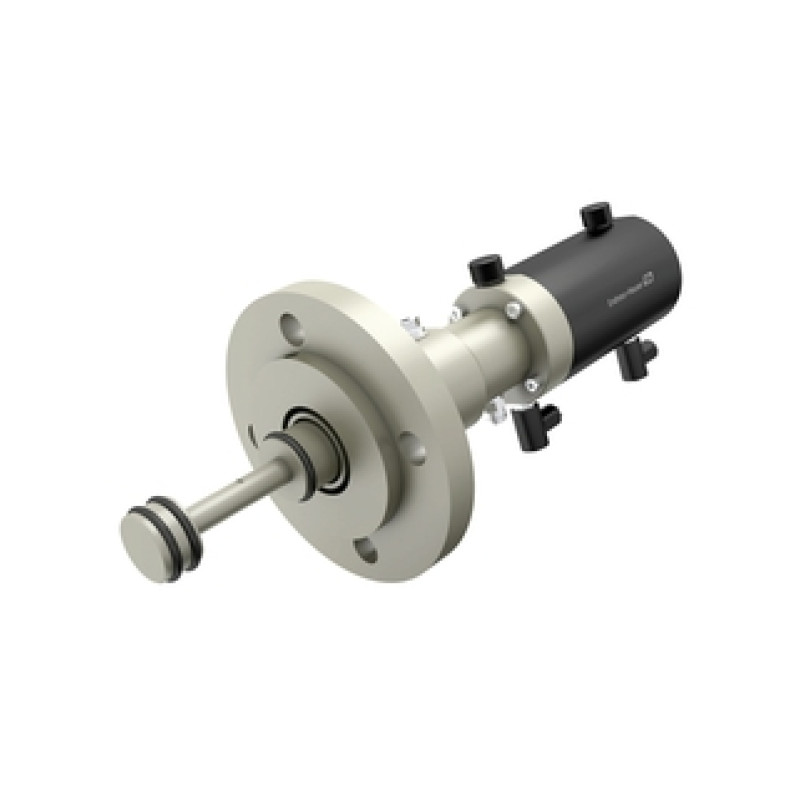

  plunger PP; housing Polyamid PA

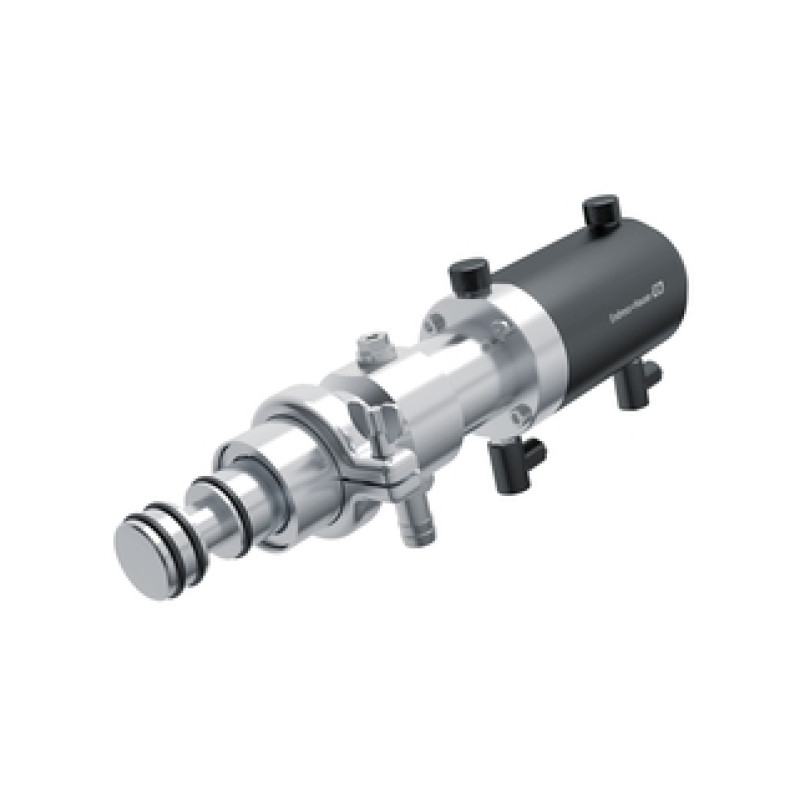

  plunger 1.4404/316L; housing Polyamid PA

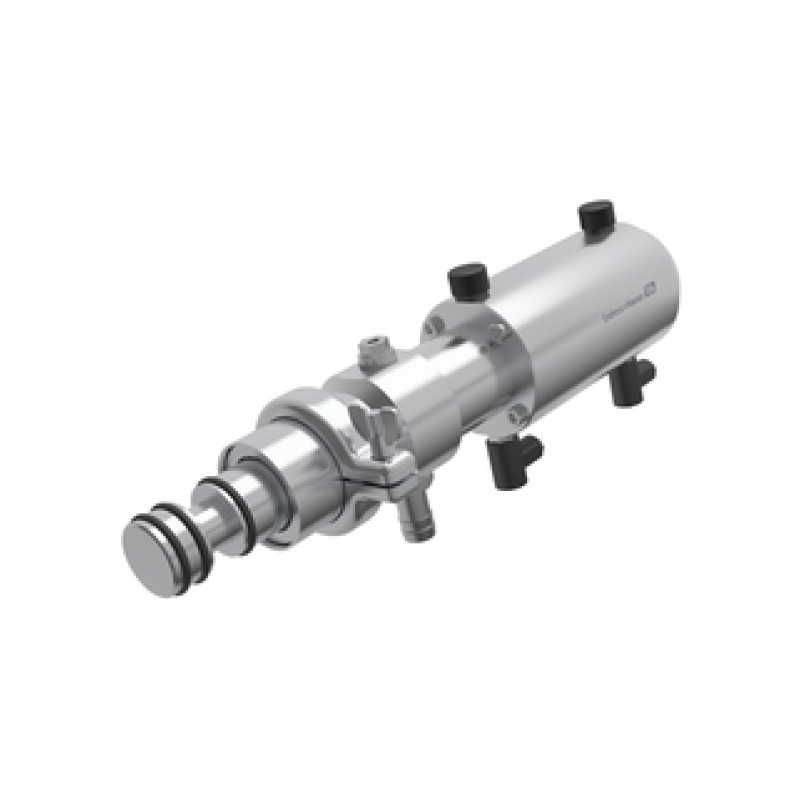

  plunger 1.4404/316L; housing 316Ti

• Dimension

  lenght 381 mm x diameter 75 mm

• Weight

  dependent on version 1,55 kg to 6,1 kg

• Options

  optional cleaning valve
