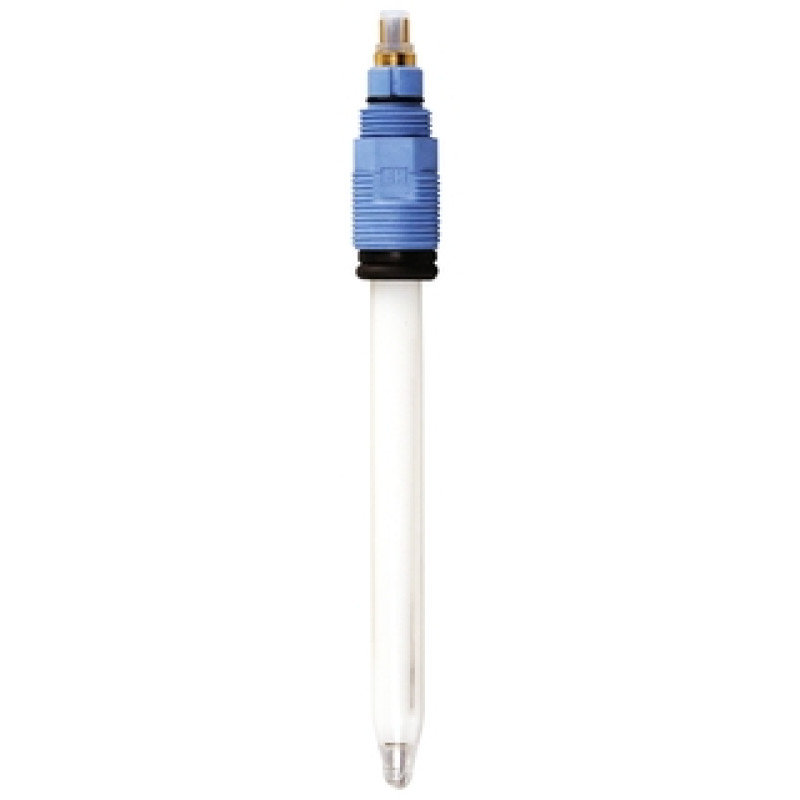

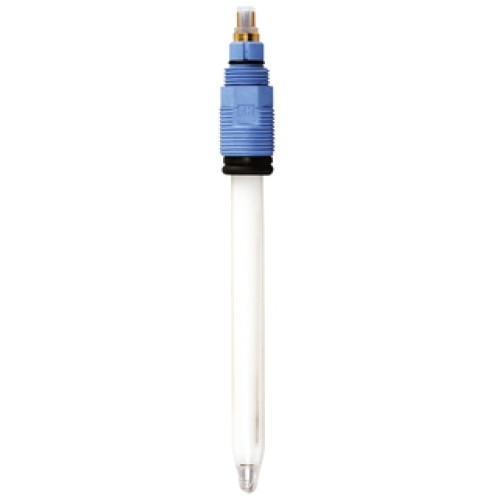

CPS91 Orbipore Analog pH sensor

Glass electrode for heavily polluted media in chemical processes, paper or paint production

• Measuring principle

  Potentiometric

• Application

  - Process applications - media with high contamination: emulsions, suspensions, precipitation reactions - min. conductivity >500µS/cm.

• Characteristic

  - rapid response - new, stabilised gel insensitive to contaminations

• Measurement range

  pH 0-14

• Measuring principle

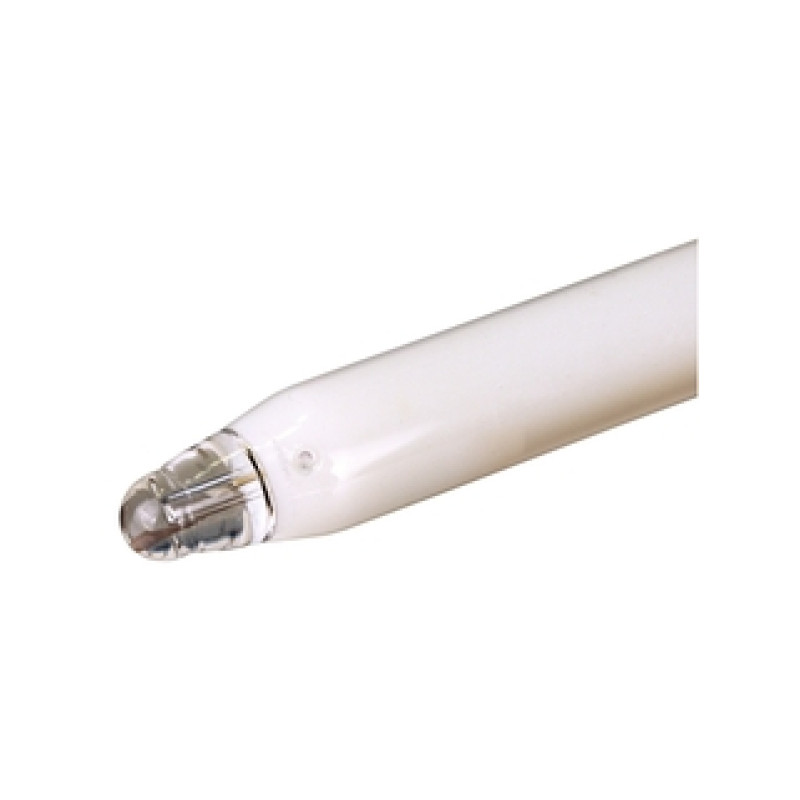

  - Open aperture - double gel reference

• Design

  - all shaft lengths with temperature sensor - advanced gel technology

• Material

  Glass

• Dimension

  Diameter: 12 mm (0.46 inch)
  Shaft lengths: 120, 225, 360 and 425 mm
  (4.68, 8.77, 14.04 and 16,57 inch)

• Process temperature

  max. 110°C
  (230°F)

• Process pressure

  max. 10 bar
  (145 psi)

• Temperature sensor

  Optional with integrated Pt100 or Pt1000.

• Ex certification

  Simple operational equipment, no certification necessary.

• Connection

  TOP68 plug-in head

• Ingress protection

  IP68
