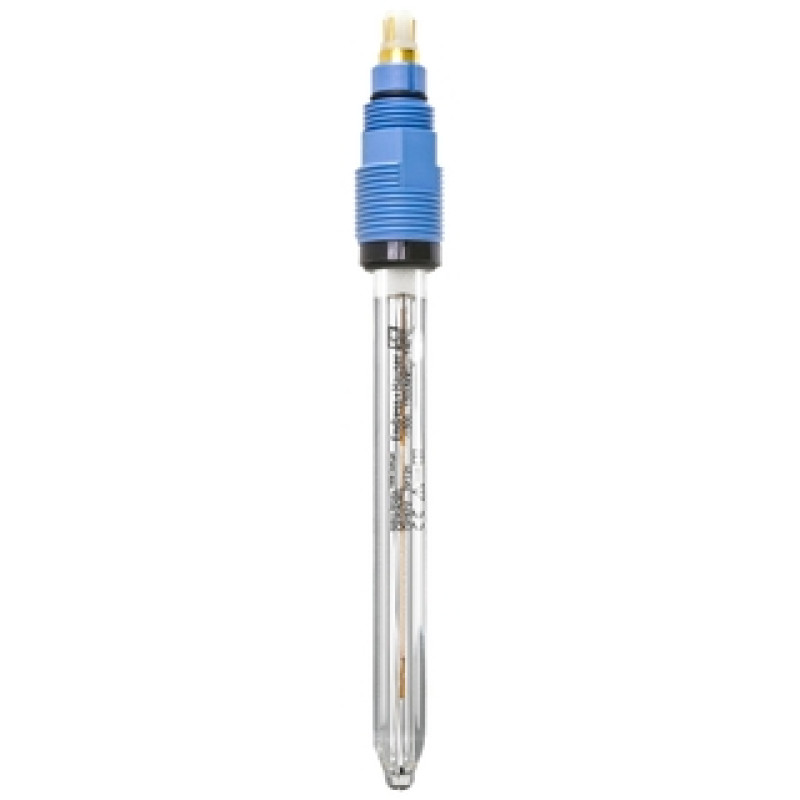

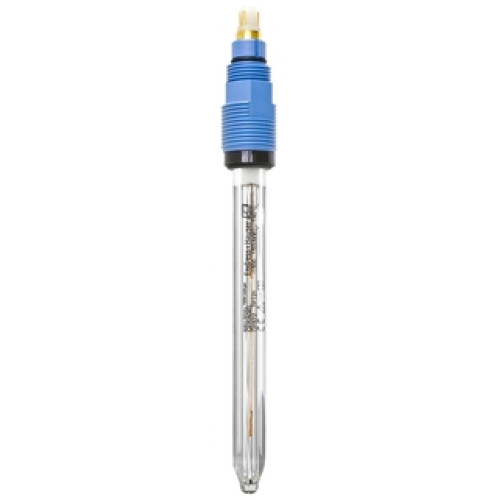

CPS72 Ceragel Analog ORP sensor

Glass electrode for food and life sciences industries

Previous: CPS32

• Measuring principle

  Sensor ORP / Redox

• Application

  - Hygienic and sterile applications - pharmaceuticals, biotechnology, fermenters, contaminating media.

• Characteristic

  - Gel-compact-electrode with ceramic diaphragm - Platinum-cap - CIP/SIP and autoclavable - high accuracy

• Measurement range

  -1500 mV - +1500 mV

• Measuring principle

  - ceramic diaphragm - double chamber and double gel reference - platinum-ring

• Material

  Glass electrode with ceramic diaphragm and platinum ring.

• Dimension

  Diameter: 12 mm
  Shaft lengths: 120, 225, 360 mm

• Process temperature

  -15°C - 135°C

• Process pressure

  max. 16bar

• Ex certification

  Simple operational device, no certification necessary.

• Connection

  TOP68 connection head

• Ingress protection

  IP68

• Additional certifications

  Biocompatibility acc. ISO 10993-5 and USP (current version).
  TÜV certificate for pressure resistance up to 16 bar with triple overpressure safety.
