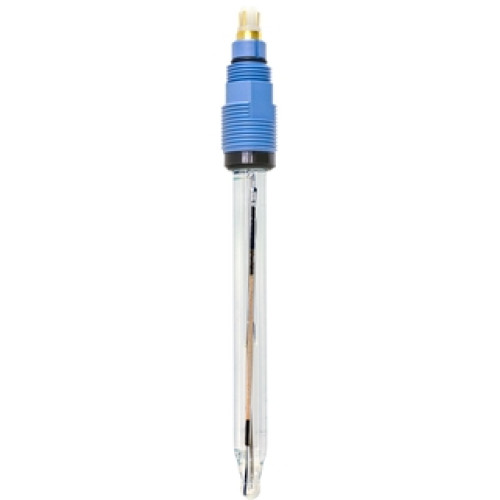

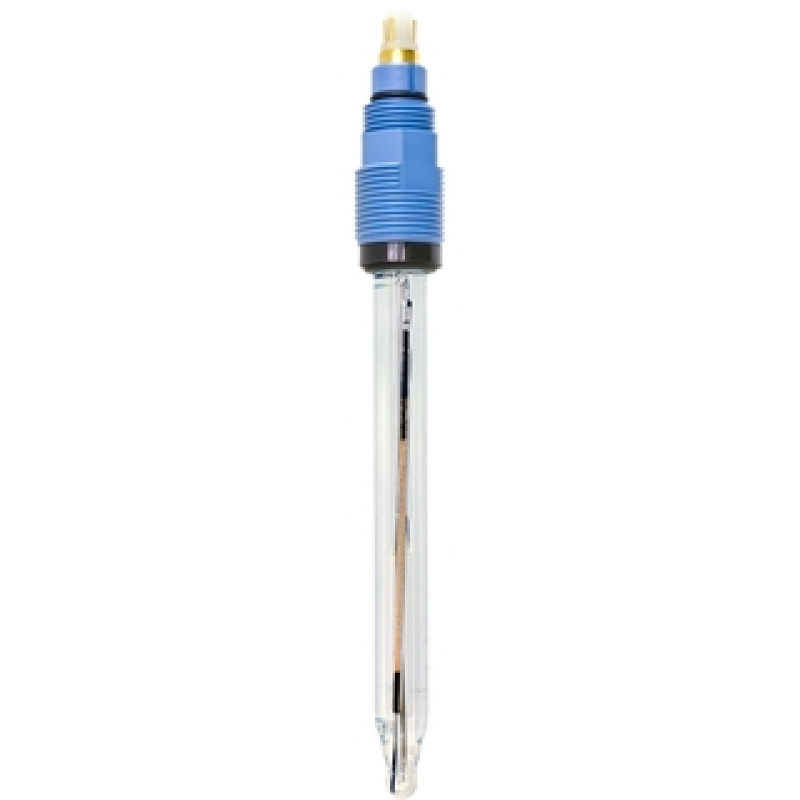

CPS71 Ceragel Analog pH sensor

Glass electrode for food and life sciences industries

• Measuring principle

  Potentiometric

• Application

  Hygienic and sterile applications, process

• Characteristic

  - resistant against reference poisoning - CIP/SIP and autoclavable - high accuracy - biocompatibility of the gel inside - version upside-down installation available - pressurized reference (6 bar) available

• Measurement range

  pH 0-14

• Measuring principle

  - ceramic diaphragm - ion-trap

• Design

  - All shaft lengths with temperature sensor - Memosens - advanced gel technology

• Material

  glass / ceramic

• Dimension

  Diameter: 12mm (0.46inch)
  Shaft lengths: 120, 225, 360 and 425 mm
  (4.68, 8.77, 14.04 and 16,57 inch)

• Process temperature

  -15°C ... 140°C
  (5°F - 284°F)

• Process pressure

  max. 13 bar
  (188 psi)

• Temperature sensor

  optional with integrated Pt100 or Pt1000

• Ex certification

  Simple operational equipment, no certification necessary.

• Connection

  TOP68 connection head

• Ingress protection

  IP 68

• Additional certifications

  3A, biocompatibility
