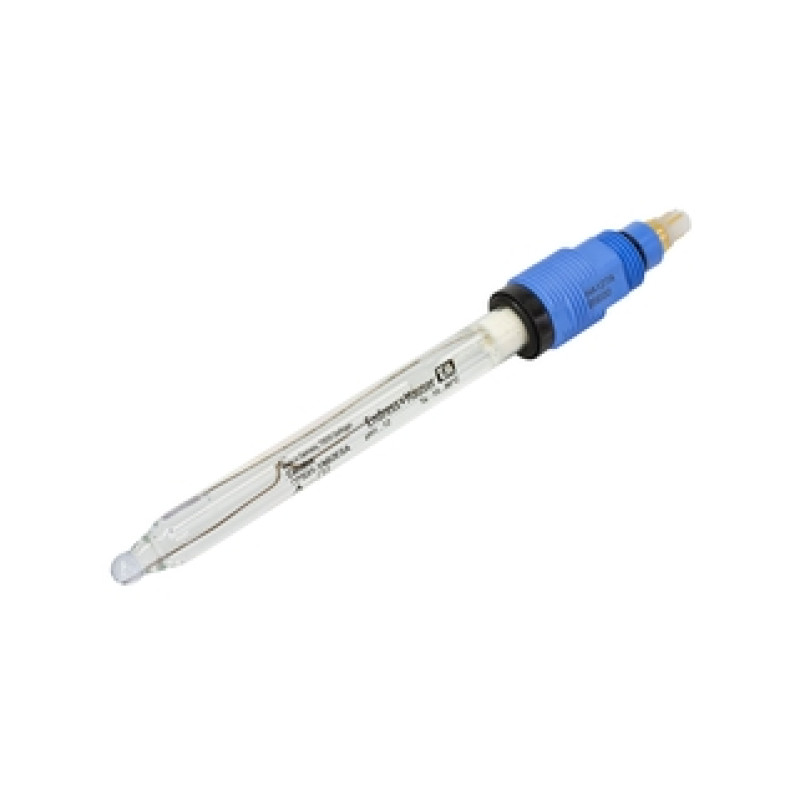

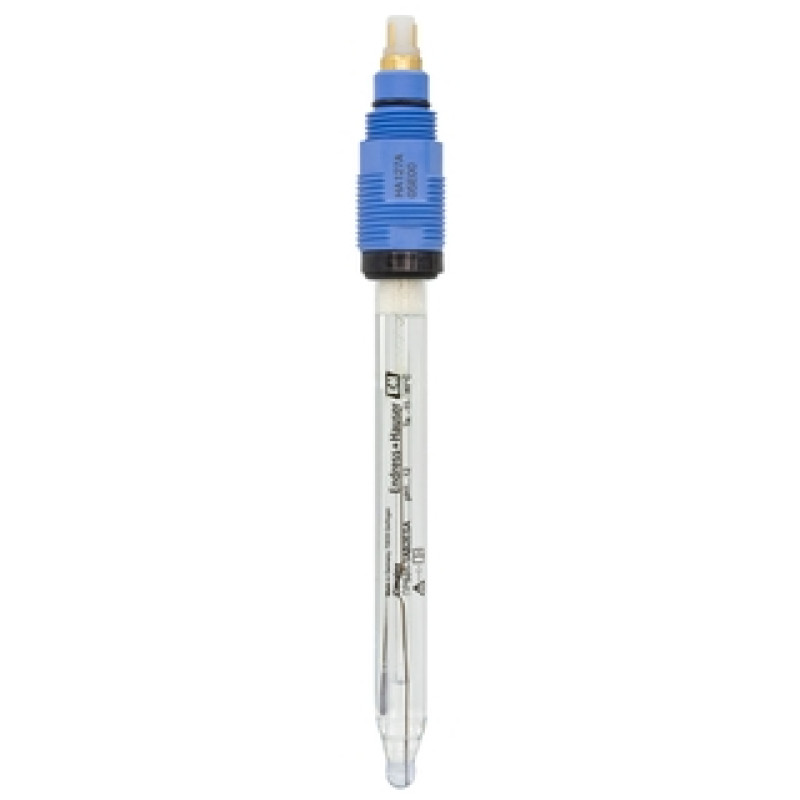

CPS31 Ceratex Analog pH sensor

Glass electrode for application in drinking water and swimming pools

• Measuring principle

  Potentiometric

• Application

  Drinking water and swimming pool water, pH compensation to measure free chlorine

• Characteristic

  Standard applications in water, long lifetime

• Measurement range

  pH 1 - 12

• Measuring principle

  Gel filled reference with one or three diaphragms, option saltring

• Design

  Shaft length 120 mm, with or w/o temperature sensor

• Material

  Glass / Ceramics

• Dimension

  Shaft length 120 mm

• Process temperature

  0 - 80 C (32 - 176 F)

• Process pressure

  1 - 4 bar abs (15 - 60 psi)

• Temperature sensor

  None or Pt 100

• Ex certification

  No

• Connection

  GSA or Top 68

• Ingress protection

  IP68
