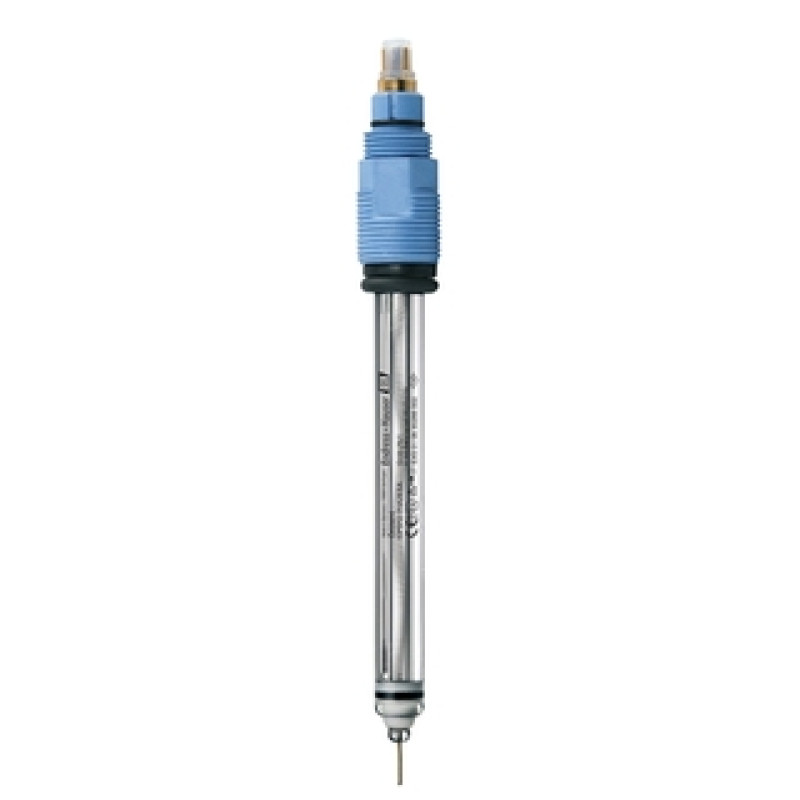

CPS12 Orbisint Analog ORP sensor

Glass electrode for standard applications

Previous: CPS22

• Measuring principle

  Sensor ORP / Redox

• Application

  Standard applications in process and environment. Long-term monitoring, processes with little changes.

• Characteristic

  Very robust, heavy-duty / high pressure, integrated potential matching.

• Measurement range

  -1500 mV to +1500 mV

• Measuring principle

  Gel compact electrode with teflon diaphragm and double gel reference
  Measuring part as gold-pin or platinum-ring.

• Design

  All shaft lengths with temperature sensor
  Advanced gel technology

• Material

  Glass electrode with PTFE diaphragm and gold pin or platinum ring.

• Dimension

  Diameter: 12 mm (0.46 inch)
  Shaft lengths: 120, 225, 360 and 425 mm
  (4.68, 8.77, 14.04 and 16,57 inch)

• Process temperature

  max. 135°C (274°F)

• Process pressure

  max. 16bar (230psi)

• Ex certification

  Simple operational device, no certification necessary.

• Connection

  TOP68 connection head

• Ingress protection

  IP68

• Additional certifications

  Biocompatibility acc. ISO 10993-5 and USP (current version).
  TÜV certificate for pressure resistance with min. triple overpressure safety.
