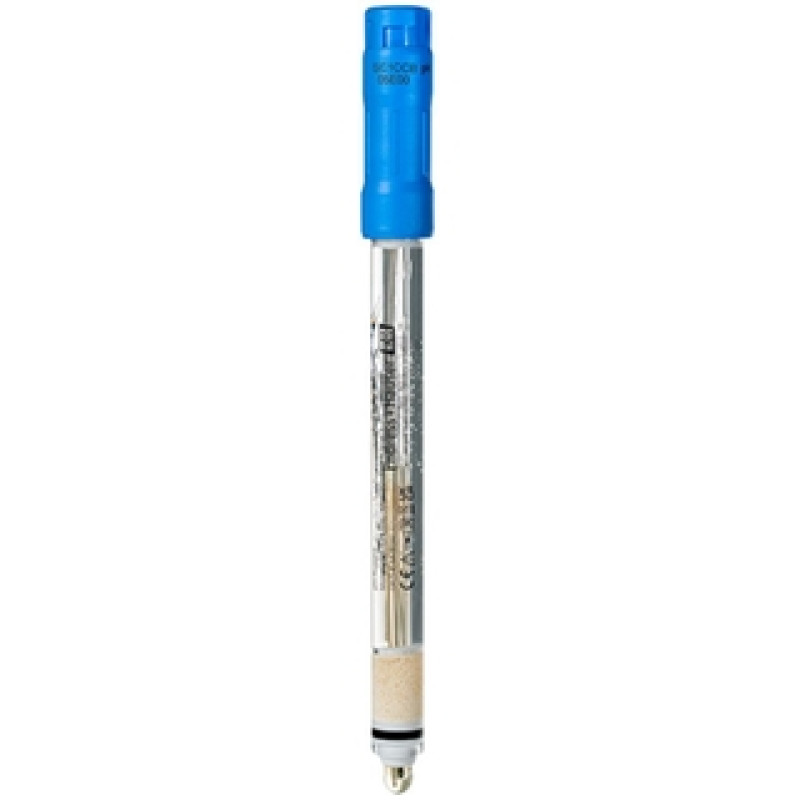

CPL59E Memosens Digital pH sensor

Rugged Memosens 2.0 pH sensor for laboratory measurements and random sampling in demanding media

• Measuring principle

  Potentiometric

• Application

  Measurements in demanding media in the chemical and process industry

• Characteristic

  Digital Memosens 2.0 compact gel pH glass sensor for laboratory measurements
  and random sampling
  Rugged pH sensor with PTFE junction and ion trap

• Measurement range

  pH 0 to 14

• Material

  Glass

• Dimension

  Diameter: 12 mm (0.47 inch)
  Shaft length: 120 mm (4.72 inch)

• Process temperature

  0 to 135 °C (32 to 275 °F) (0 to 100 °C (32 to 212 °F) application range)

• Process pressure

  1 bar, not intended for continues measurement in process

• Temperature sensor

  NTC 30kΩ

• Connection

  Inductive, digital connection head with Memosens 2.0 technology

• Ingress protection

  IP68
