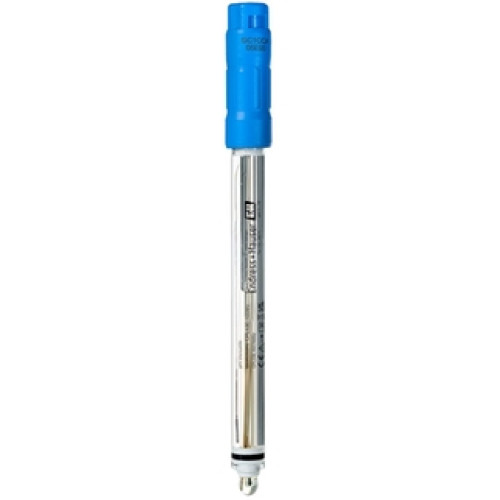

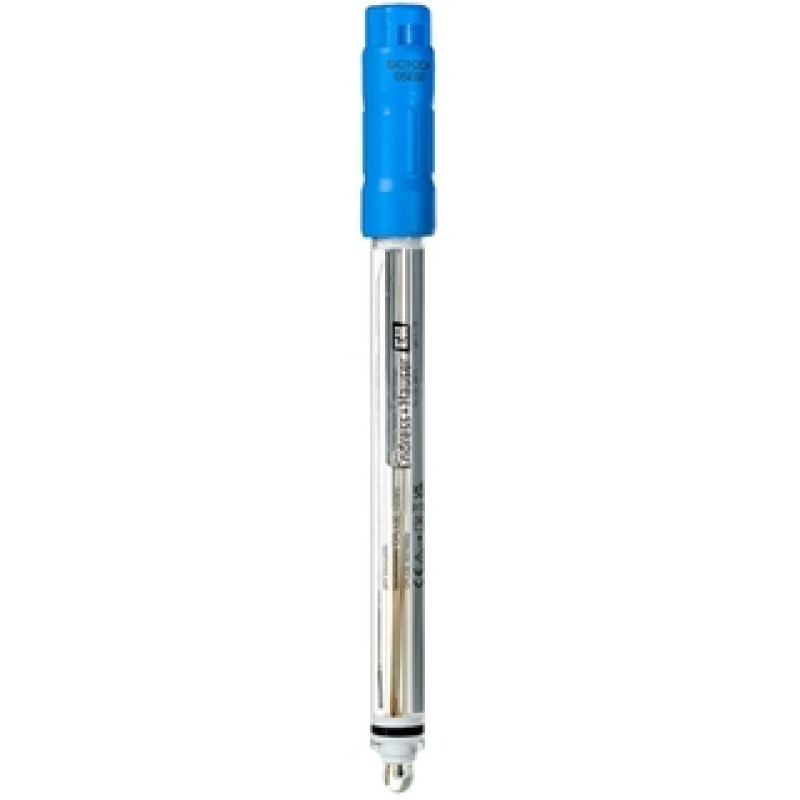

CPL53E Memosens Digital pH sensor

Versatile Memosens 2.0 pH glass sensor for laboratory measurement and random sampling

• Measuring principle

  Potentiometric

• Application

  Measurements in standard applications in the laboratory

• Characteristic

  Digital Memosens 2.0 compact gel pH glass sensor for standard use in laboratories
  Versatile pH sensor with very fast response time

• Measurement range

  pH 0 to 14 (1 to 12 application range)

• Material

  Glass

• Dimension

  Diameter: 12 mm (0.47 inch)
  Shaft length: 120 mm (4.72 inch)

• Process temperature

  –5 to 100 °C (23 to 212 °F) (0 to 80 °C (32 to 176 °F) application range)

• Process pressure

  1 bar, not intended for continues measurment in process

• Temperature sensor

  NTC 30kΩ

• Connection

  Inductive, digital connection head with Memosens 2.0 technology

• Ingress protection

  IP68
