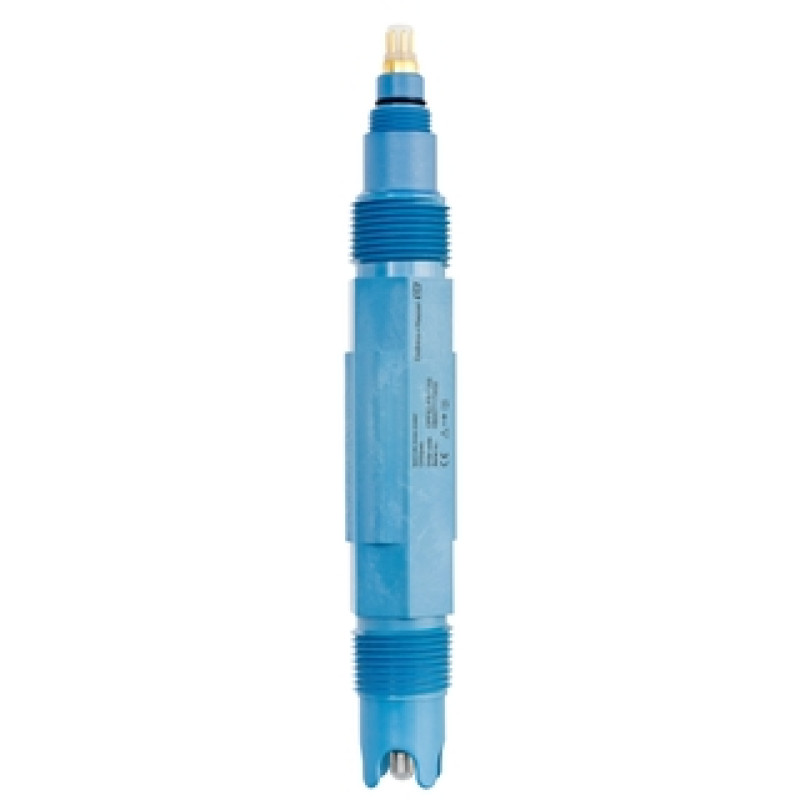

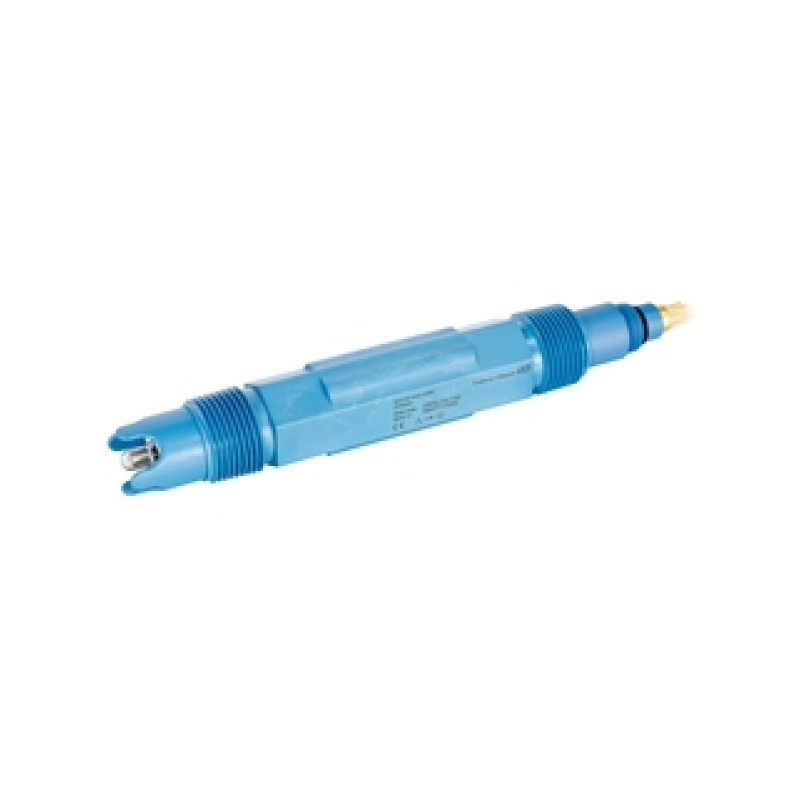

CPF82 Orbipac Analog ORP sensor

Compact electrode for wastewater, primaries and metal

Previous: Orbipore CPS92, CPF92

• Measuring principle

  Sensor ORP / Redox

• Application

  Water, waste water, process, galvanic

• Characteristic

  Resistent against electrolyte poisoning and dirt repellent gel-electrode including process connection NPT 3/4".

• Measurement range

  -1500mV - -1500mV

• Measuring principle

  Gel-compact electrode with double chamber reference system, potassium nitrate bridge electrolyte and PTFE-diaphragm, platinum pin

• Design

  Compact electrode in PPS housing with NPT3/4" process connection.

• Material

  PPS / glass / PTFE, platinum

• Dimension

  Length: 120´mm
  (4.68 inch)

• Process temperature

  -10°C - 110°C
  (14°F - 230°F)

• Process pressure

  max. 10 bar
  (145 psi)

• Connection

  TOP68 connection head

• Ingress protection

  IP68
