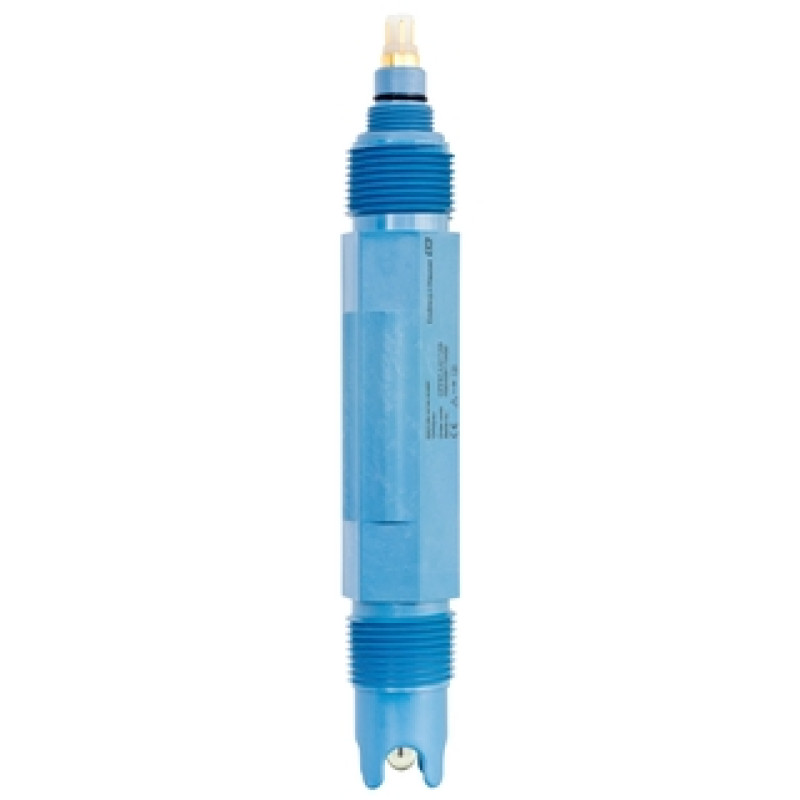

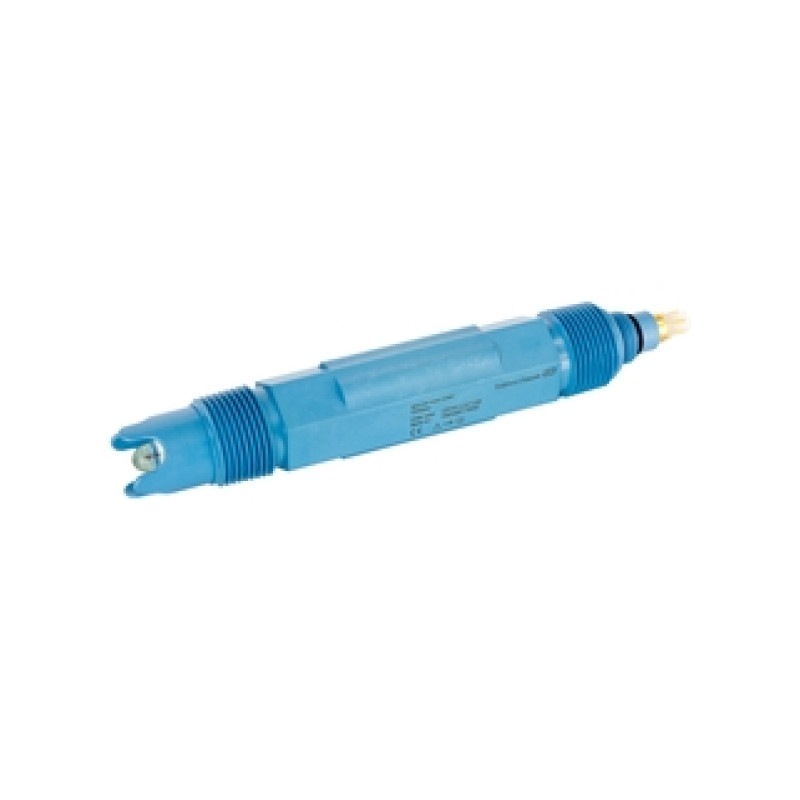

CPF81 Orbipac Analog pH sensor

Compact electrode for wastewater, primaries and metal

Previous: CPF91, CPF10

• Measuring principle

  Potentiometric

• Application

  Water, waste water, process, galvanic

• Characteristic

  Resistent against electrolyte poisoning and dirt repellent gel-electrode including process connection NPT 3/4". Optional with amplifier.

• Measurement range

  pH 0-14

• Measuring principle

  Gel-compact electrode with double chamber reference system, kalium nitrate bridge electrolyte and PTFE-diaphragm.

• Design

  Compact electrode in PPS housing with NPT3/4" process connection.

• Material

  PPS / glass / PTFE

• Dimension

  Length: 120´mm
  (4.68 inch)

• Process temperature

  -10°C - 110°C
  (14°F - 230°F)

• Process pressure

  max. 10 bar
  (145 psi)

• Temperature sensor

  Optional with integrated Pt100.

• Ex certification

  ATEX
  FM

• Connection

  TOP68 connection head or fixed cable

• Ingress protection

  IP68
