CPF201 Purisys Analog pH sensor

Compact electrode for power and life sciences industries

• Measuring principle

  Potentiometric

• Application

  Ultra pure water (<100µS/cm); power plants

• Characteristic

  Bypass measurement system made of stainless steel with gel electrode and salt storrage for measurements in ultra pure water.

• Measurement range

  pH 1-13 (<100µS/cm)

• Measuring principle

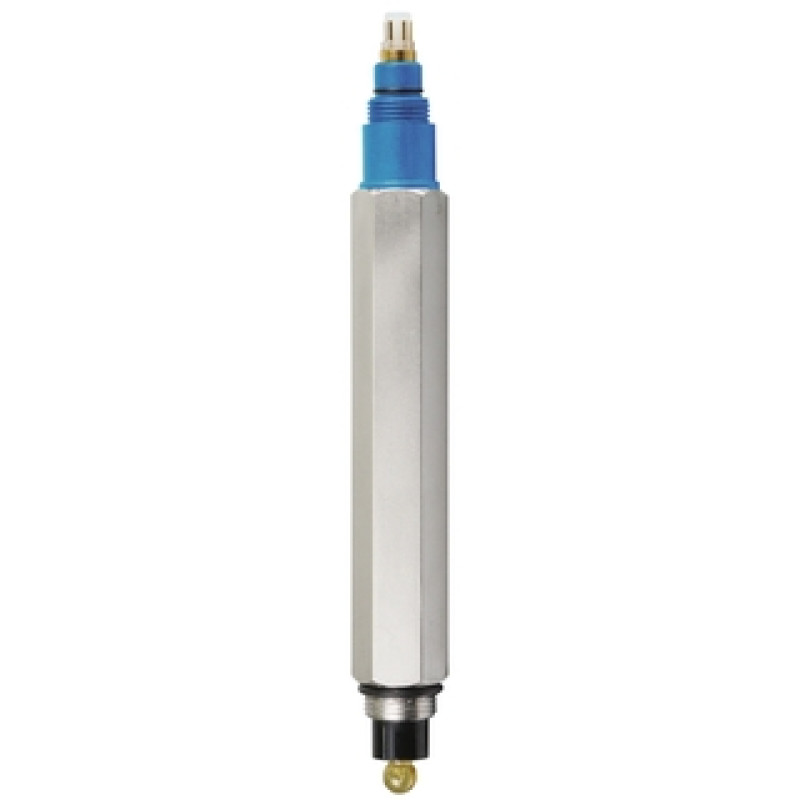

  Glass-gel compact electrode with PTFE diaphragm and salt (KCl) storrage

• Design

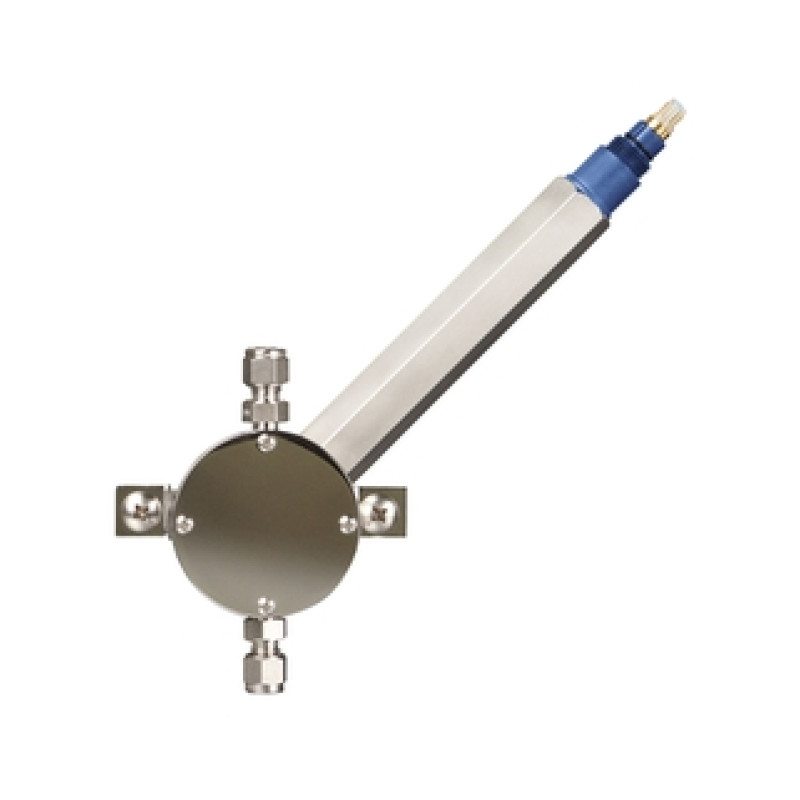

  Electrode in stainless steel boundary surface installed in a stainless steel flow assembly for potential free measurements in ultrapure water with lowest conductivity.

• Material

  Glass, stainless steel

• Dimension

  Installation on a plate (305 mm x 305 mm).
  (11.89 inch x 11.89 inch)

• Process temperature

  2°C - 75°C
  (36°F - 167°F)

• Process pressure

  max. 3 bar
  (43.5 psi)

• Temperature sensor

  Optional with integrated Pt100 oder Pt1000.

• Connection

  TOP68 connection head or fixed cable connection.

• Ingress protection

  IP68
