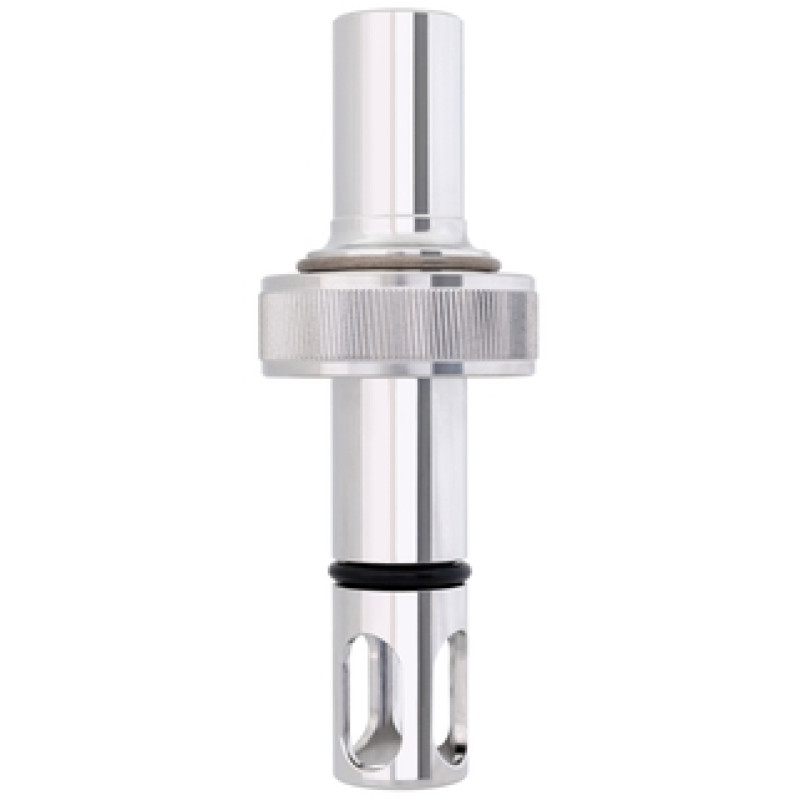

CPA842 Unifit Process assembly

Hygienic assembly for the life sciences, food & beverage industries

Previous: Unifit H CPA442

• Measuring principle

  Potentiometric

• Application

  Food & Beverage, Life Science, Process

• Installation

  Fixed installation assembly

• Characteristic

  Open and closed tank, piping

• Design

  Hygienic assembly with corresponding process connections
  12 mm electrodes
  Optional with protection guard
  Optional with leakage control

• Material

  Holder: stainless steel 1.4404
  Seals: EPDM, FKM, FFKM, all seals are FDA conform, USP Class VI

• Dimension

  Immersion depth: 29.5 to 86.5 mm (1.16 to 3.4 inch)

• Process temperature

  -15 to 140 °C (5 to 280 °F)

• Process pressure

  16 bar up to 140 °C (232 psi up to 284 °F)

• Connection

  DN25 standard, DN25 B.Braun, Clamp 1.5" (short and long), Clamp 1.5'' angled at 15°, Clamp 2", Varivent flange N, dairy fitting DN50
