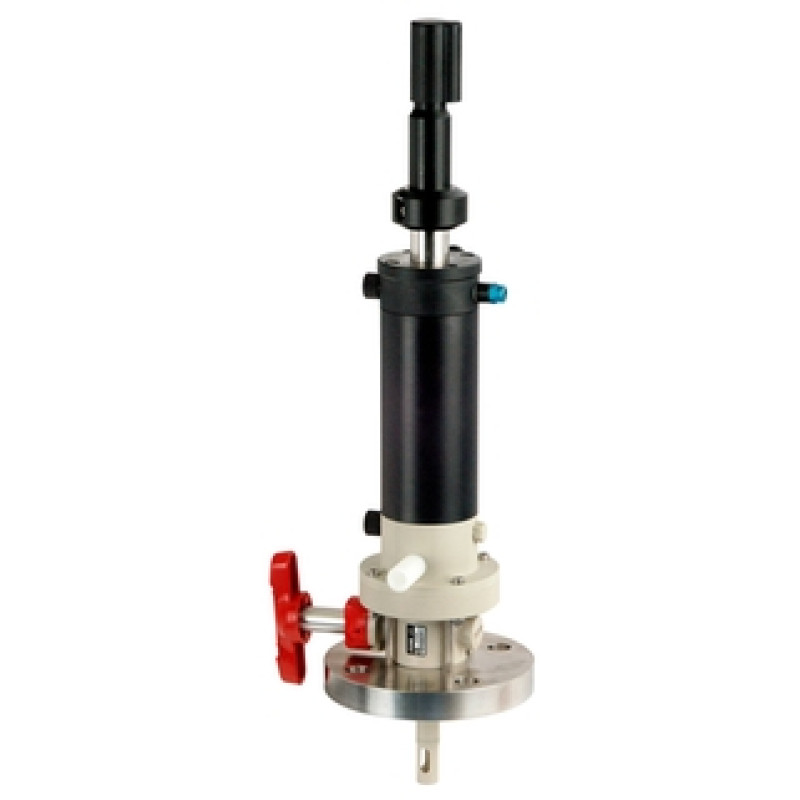

CPA474 Cleanfit Manual or automatic retractable assembly

Assembly with ball valve for chemical and industrial wastewater applications

Previous: CPA463

• Measuring principle

  Potentiometric

• Application

  Chemical industry, wastewater, industrial water, power plants, refuse incinerators

• Installation

  Retractable assembly with ball valve

• Characteristic

  Open and closed tank, piping (min. DN80)

• Design

  Manual or pneumatic
  Manual or pneumatic ball valve
  Can be fully automated with CPC30 / 300
  Integrated rinse chamber with connection G1/4" or NPT1/4"

• Material

  Seals: EPDM / FPM / perfluoroelastomer
  Electrode holder: PP / PEEK / PVDF
  Ball valve: PP / PVDF
  Inlet safety seal: PVDF, PTFE, Viton®
  Outlet safety seal: PVDF
  Rinse connection socket: PVDF

• Dimension

  Immersion depth: 71 to 207 mm
  (2.8 to 8.15 inch)

• Process temperature

  PA version: max. 80 °C (max. 176 °F)
  Stainless steel pressure cylinder: max. 120 °C (248 °F)

• Process pressure

  PA pressure cylinder: max. 6 bar (87 psi)
  Stainless steel pressure cylinder: max. 10 bar (145 psi) at 40 °C (104 °F)

• Connection

  Process connection DN50, ANSI 2"

• Additional certifications

  Inspection certificate 3.1 acc. to EN 10204 on demand
