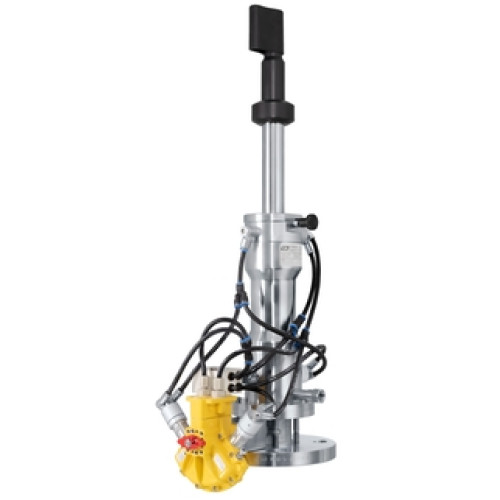

CPA473 Cleanfit Manual or automatic retractable assembly

Assembly with ball valve for the chemical, paper, and wastewater industries

Previous: Cleanfit P CPA477, CPA463

• Measuring principle

  Potentiometric

• Application

  Chemical industry, paper industry, wastewater, industrial water, power plants, refuse incinerators, sugar industry

• Installation

  Retractable assembly with ball valve

• Characteristic

  Open and closed tank, piping (min DN80)

• Design

  Manual or pneumatical
  Manual or pneumatical ball valve
  Can be fully automated with CPC30 / 300
  Integrated rinse chamber with connection G 1/4" or NPT 1/4"

• Material

  Seals: EPDM / FPM / perfluoroelastomer
  Electrode holder: stainless steel 1.4404
  Ball valve: Stainless steel 1.4401, PTFE
  Inlet safety seal: PVDF, PTFE, Viton®
  Outlet safety seal: PVDF, Stainless steel 1.4404
  Rinse connection socket: Stainless steel 1.4404

• Dimension

  Immersion depth: 61 to 235mm
  (2.4 inch to 9.25 inch)

• Process temperature

  PA pressure cylinder (manually only):
  Max. 80 °C (176 °F)
  Stainless steel pressure cylinder: up to 100°C (212 °F) with continuous operation up to 6 bar (87 psi)

• Process pressure

  PA pressure cylinder: Max. 6 bar (87 psi)
  Stainless steel pressure cylinder: Max. 10 bar (145 psi)
  Pneumatic outlet safety seal:
  6 bar at 100 °C (87 psi at 212 °F)

• Connection

  G1¼ internal thread, DN50, DN65, ANSI 2"

• Additional certifications

  3.1. acc. to EN 10204
