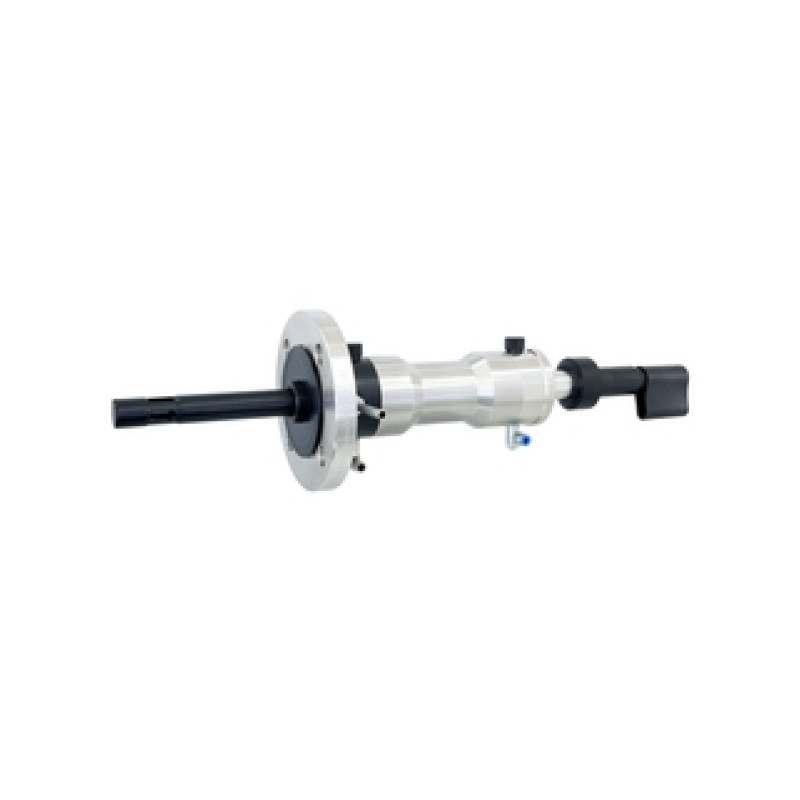

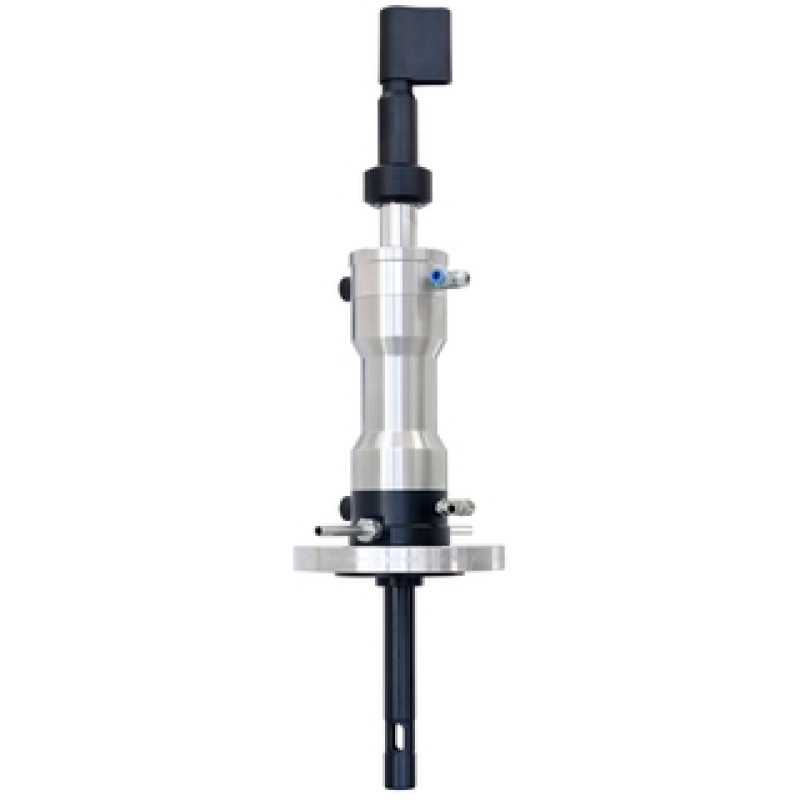

CPA472D Cleanfit Manual or automatic retractable assembly

Heavy-duty assembly for chemical and power industries

• Measuring principle

  Potentiometric

• Application

  Chemical industry, biodiesel plants, power plants, plant design, tanks, process vats or pipes

• Installation

  Retractable holder

• Characteristic

  For tanks and process vats and pipelines or pipes (min. DN80)
  The robust retractable assembly permits replacement of the electrode while the tank is full or under process conditions with pressures of up to 6 bar

• Design

  Manual or pneumatical

• Material

  Electrode holder, rinse chamber and raised face:
  PEEK, PVDF, conductive PVDF, Alloy C22, stainless steel 1.4571
  Seals: EPDM, FPM (Viton) or FFKM (Kalrez®)

• Dimension

  Immersion depth: 146 or 280 mm (5.75 or 7.87 inch)

• Process temperature

  0 to 140 °C (32 to 284 °F)

• Process pressure

  0 to max. 4 bar (0 to max. 58 psi) overpressure for manual actuation
  0 to 10 bar (0 to 145 psi) overpressure for pneumatic actuation

• Connection

  Process connections: Flange DN 50, DN 80, ANSI 2", JIS IS10K50A, internal thread G1¼
