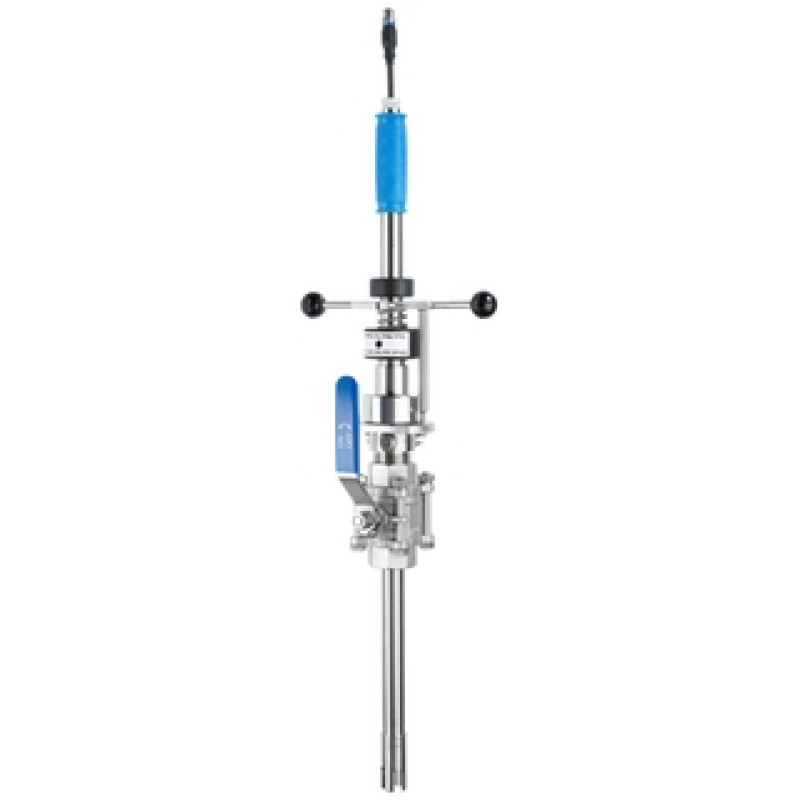

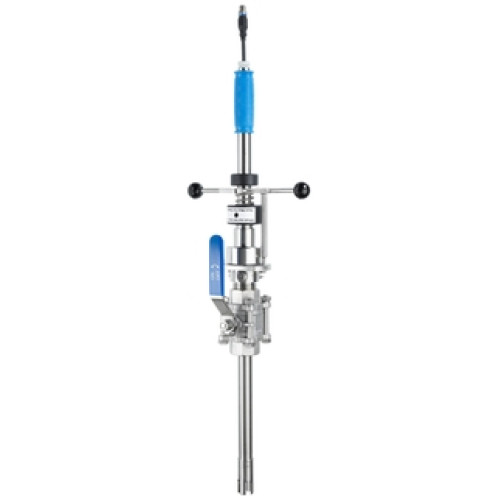

CPA450 Cleanfit Manual retractable assembly

Basic assembly for the water & wastewater, chemical, pulp & paper and power industries

Previous: CPA461

• Measuring principle

  Potentiometric

• Application

  Power stations, chemical industry, industrial water treatment, supply technology

• Installation

  Manually retractable assembly

• Characteristic

  Open and closed tank, piping

• Design

  Manually retractable assembly for 120 mm electrodes, rinse chamber connection G1/4"

• Material

  Immersion tube: stainless steel 1.4404, Alloy C22, titanium 3.7035
  O-rings: EPDM, Viton or Kalrez

• Dimension

  Immersion depth: up to 700 mm (27.56 inch)

• Process temperature

  -15 to 130 °C (5 to 266 °F)

• Process pressure

  Max. 12 bar at 100 °C (175 psi at 212 °F)

• Connection

  Thread G 1 1/4", thread NPT 1 1/4"flange DN32 PN16; flange ASME 1 1/4"

• Additional certifications

  3.1B EN 10204
