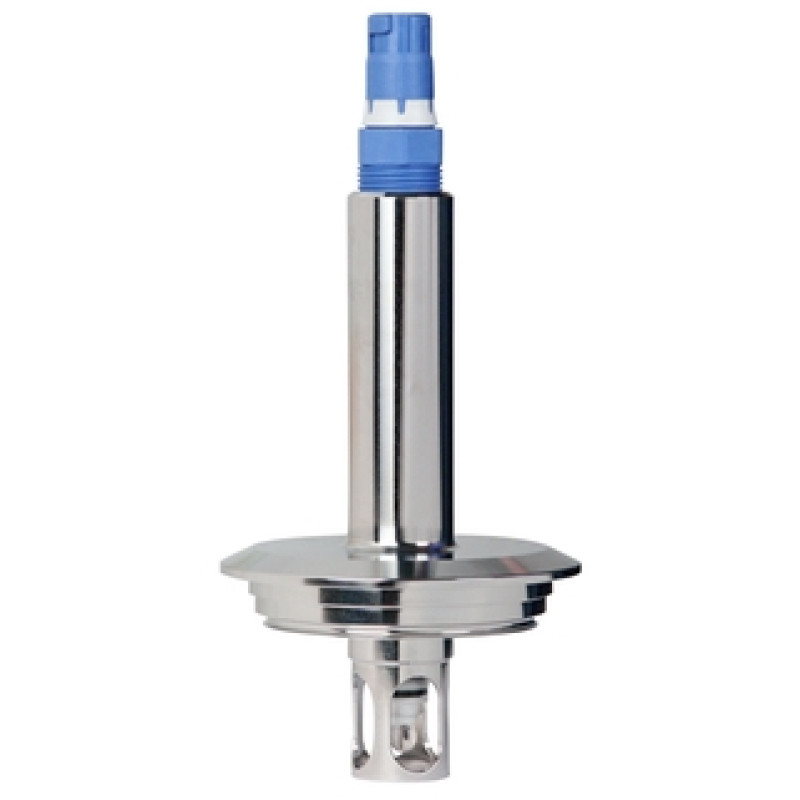

CPA442 Unifit Process assembly

Hygienic assembly for the life sciences, food & beverage industries

Previous: CPA440, CPA441

Next: Unifit CPA842

• Application

  Process, food, pharmaceuticals

• Installation

  Fixed installation assembly

• Characteristic

  Open and closed tank, piping.

• Design

  - Hygienic assembly with corresponding process connections - 120 mm electrodes - optional with protection guard - optional with leakage control

• Material

  Holder: stainless steel sealing : different materials available (FDA conform)

• Dimension

  10 - 86 mm
  (0.39 - 3.47 inch)

• Process temperature

  max. 140°C
  (284°F)

• Process pressure

  max. 10 bar
  (145 psi)

• Connection

  DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, Neumo Bi°Control.

• Additional certifications

  - Material certification 3.1.B EN 10204- 3A / EHEDG (steam sterilisability + cleanability)- Surface roughness Ra<0,8 (0,4).
