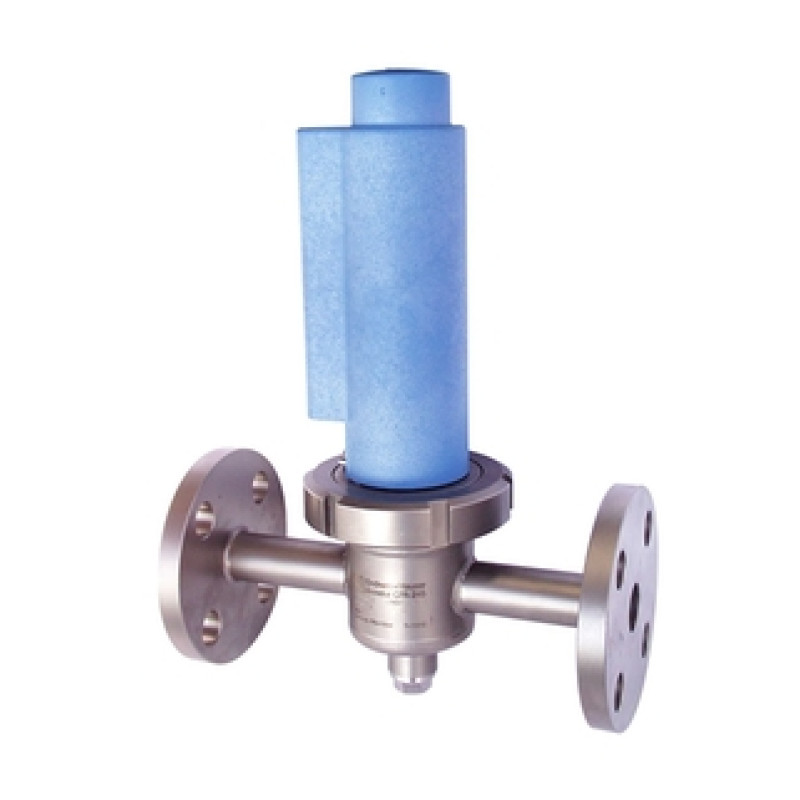

CPA240 Flowfit Flow assembly

Durable assembly for the chemical, petrochemical, and power industries

Previous: CPA320

• Measuring principle

  Potentiometric

• Application

  Drinking water treatment plants, boiler feedwater and ultra-pure water plants, cooling-water circuits, fertiliser production, sugar production, gas scrubbers, petrochemical plants

• Installation

  Flow assembly

• Characteristic

  Piping, bypass

• Design

  3 electrode installation locations, 120mm electrodes, flow direction horizontal or from the bottom, thread connection G1/2" for spray cleaning

• Material

  Flow vessel: PVDF or stainless steel 1.4404
  O-rings: EPDM, Viton, Chemraz or Fluoraz

• Process temperature

  PVDF version: 0 to 120 °C (32 to 248 °F)
  Stainless steel version: -15 to 150 °C (5 to 302 °F)
  With EPDM: -15 to 140 °C (5 to 284 °F)

• Process pressure

  PVDF version: max. 8 bar at 50 °C (max. 116 psi at 122 °F)
  Stainless steel version: max. 10 bar (max. 145 psi)

• Connection

  Pressurized flange DN25/PN16, ASME 1" lbs 150, JIS 10K25A

• Additional certifications

  Material certification 3.1.B EN 10204
