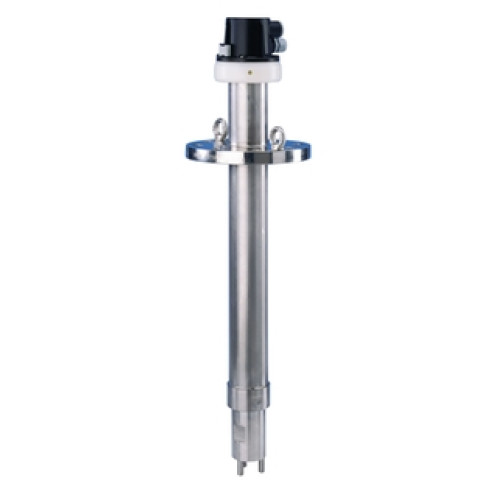

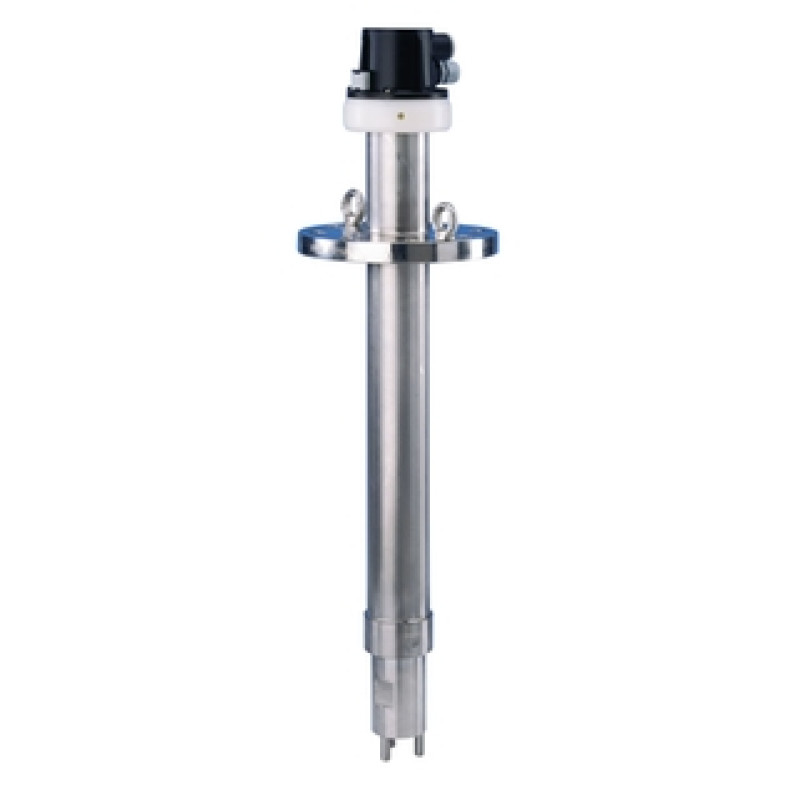

CPA140 Dipfit Immersion assembly

Durable assembly for the chemical, petrochemical, life sciences and power industries

• Measuring principle

  Potentiometric

• Application

  Chemical industry, power stations and incinerator plants, metal extraction and metal processing

• Installation

  Immersion assembly

• Characteristic

  Closed tank

• Design

  Bayonet technology, 3 electrode installation locations, 120 mm electrodes, integrated spray cleaning CPR31

• Material

  Immersion tube, sensor holder:
  PVDF or stainless steel 1.4404
  O-rings: EPDM, VITON, Chemraz or Fluoraz

• Dimension

  Immersion depth: 500 to 2500 mm (19.7 to 98.4 inch), special lengths on request

• Process temperature

  Max. 150 °C (302 °F)

• Process pressure

  Max. 10 bar (145 psi)

• Connection

  Pressurized flange DN80/PN16, ASME 3" lbs150, JIS 10K80A

• Additional certifications

  Material certification 3.1B EN 10204
