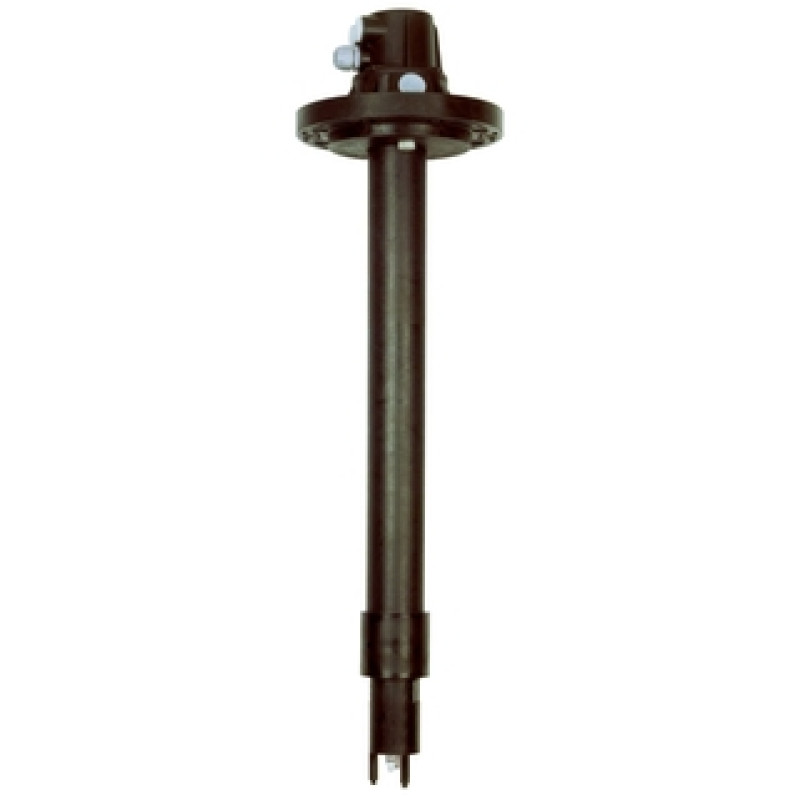

CPA111 Dipfit Immersion assembly

Universal assembly for the water and wastewater industry

Previous: CPA110, CPA120

• Measuring principle

  Potentiometric

• Application

  Water, waste water, process

• Installation

  Immersion assembly

• Characteristic

  For open and closed tanks and channels

• Design

  Bayonet technology, 3 electrode installation locations,
  120 mm electrodes, variable holder length, integrated spray cleaning CPR31, external spray cleaning CPR30, process connection with fix or adjustable flange

• Material

  Sensor holder: PP-GF 20
  Immersion tube: PP

• Dimension

  Length: 500 to 3000 mm (19.7 to 118 inch), special lengths on request

• Process temperature

  Max. 80 °C (176 °F)

• Process pressure

  Max. 4 bar at 20°C
  (Max. 58 psi at 68°F)

• Connection

  Suspended assembly, lap joint flange DN100
  Pressurized flange DN100/PN4, adjustable flange DN100
