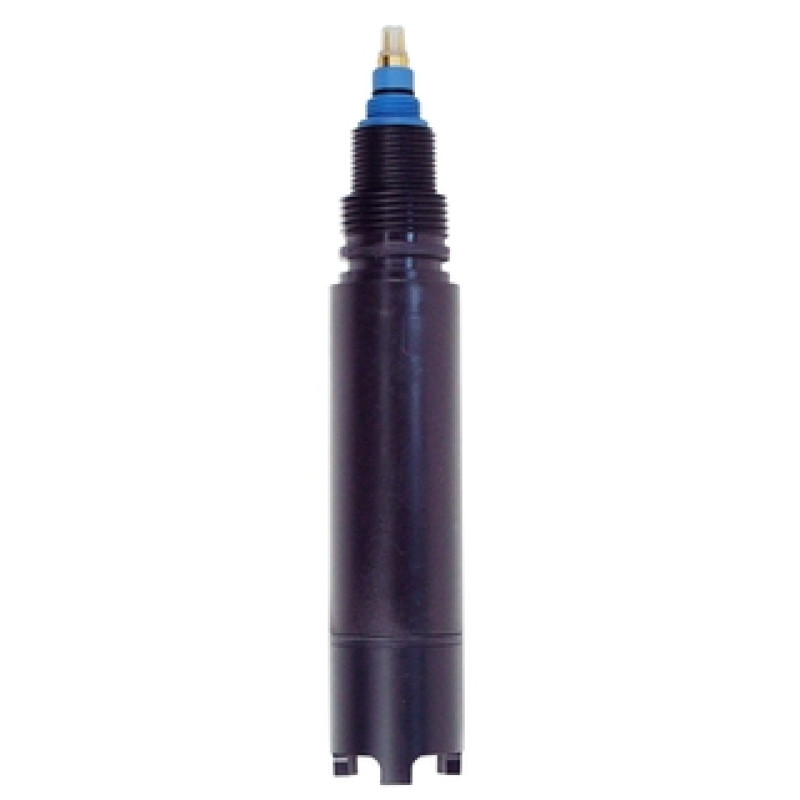

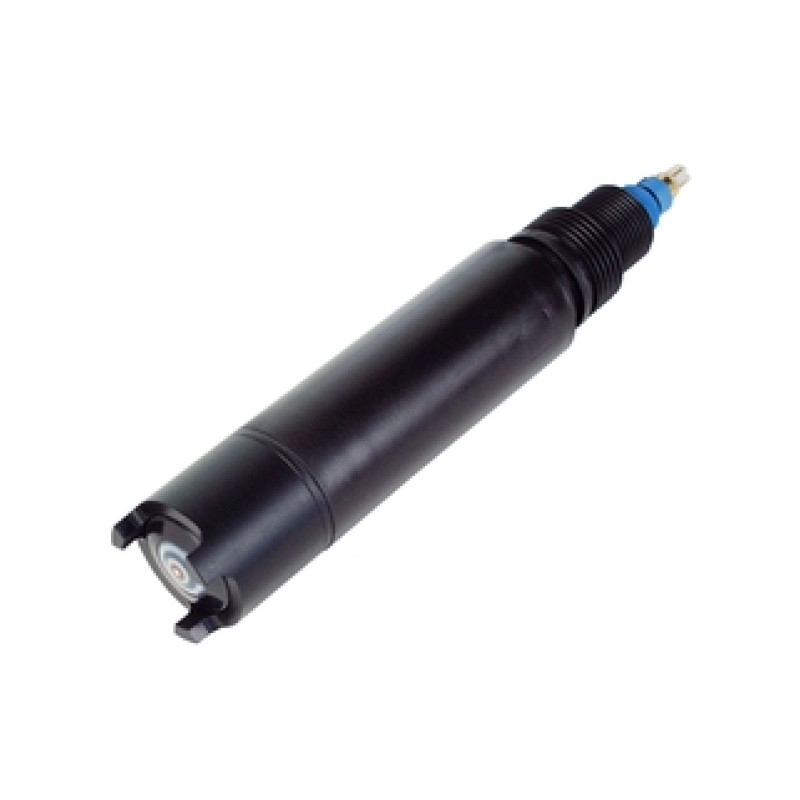

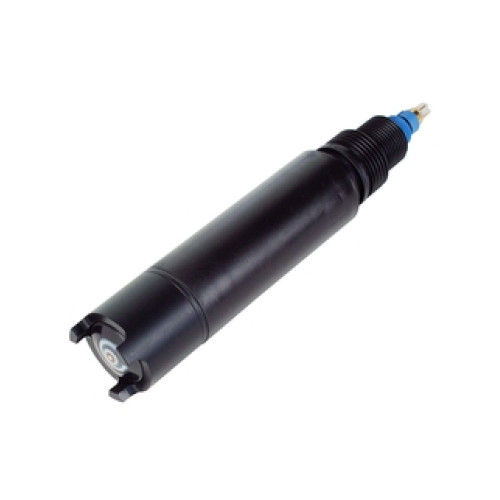

COS41 Oxymax Dissolved oxygen sensor
- Brand: EH
- Product Code: COS41
- Availability: In Stock
-
3,294.72€
- Ex Tax: 2,745.60€
-
Measuring principle
Amperometric oxygen measurement
-
Application
Aeration tank, river monitoring, water treatment, fish farming.
-
Characteristic
Amperometric 2-electrode system to measure dissolved oxygen.
-
Measurement range
0,05 - 20mg/l
-
Measuring principle
Closed (membrane covered) amperometric 2-electrode sensor.
-
Design
- Extreme stable membrane- Analog communication
-
Material
Sensor body : POMMembrane cap : POM
-
Dimension
Diameter : 40mm
(1.56inch)Length : 220mm
(8.85inch) -
Process temperature
max. 50°C
(122°F) -
Process pressure
max. 10bar
(145psi) -
Temperature sensor
Integrated NTC-sensor
-
Connection
Process connection : G1"Cable : Fixed cable or TOP68 connector
