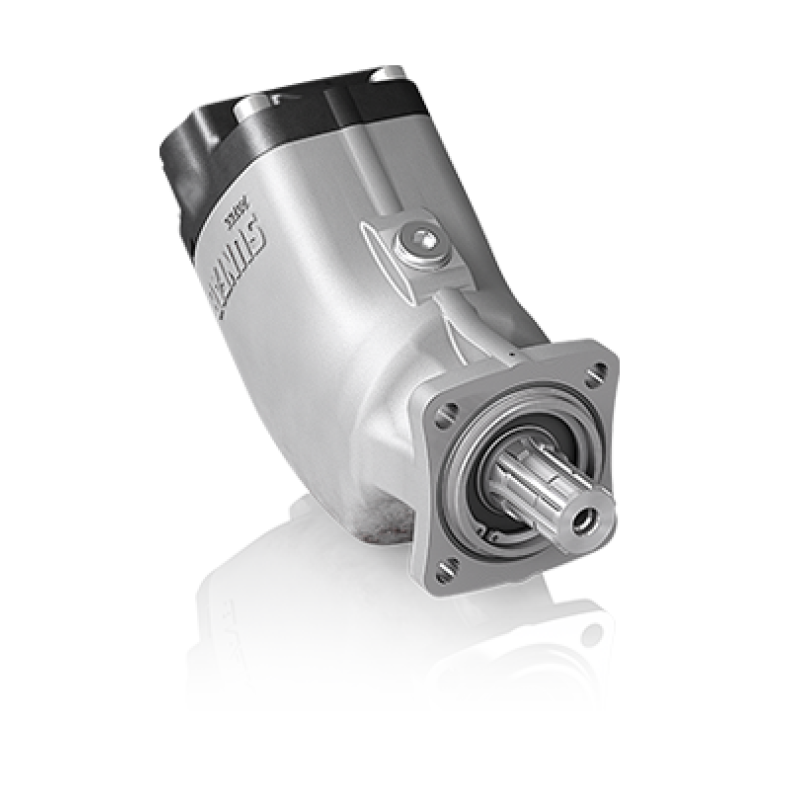

SAPT-090L-N-DL4-L35-S0S-000 INCLINED AXIS (MOBILE) PISTON PUMP
- Brand: Sunfab
- Product Code: SAPT-090L-N-DL4-L35-S0S-000
- Availability: In Stock
- 2,095.20€
1,735.20€
- Ex Tax: 1,446.00€
The Sunfab SAPT-090L-N-DL4-L35-S0S-000 is a fixed-displacement axial piston hydraulic pump designed for demanding mobile hydraulic systems, particularly tipper trucks and other vehicle-mounted applications. It delivers a geometric displacement of 90 cm³/rev and supports a maximum working pressure of 300 bar.
Part of the Sunfab SAPT tipper pump series, this model features a DIN 4-hole mounting flange, a splined drive shaft conforming to DIN 5462 / ISO 14, and nitrile (NBR) seals. Its left-hand rotation configuration is designed for hydraulic systems requiring this direction of rotation.
Key Features
-
Fixed-displacement axial piston tipper pump
-
90 cm³/rev geometric displacement
-
Maximum working pressure: 300 bar
-
Maximum continuous speed: 1,500 rpm
-
Maximum intermittent speed: 2,000 rpm
-
Left-hand rotation
-
DIN 4-hole mounting flange, ISO 7653-D
-
Splined shaft: 8 × 32 × 34.9 mm
-
G 3/4 BSP pressure connection
-
Sunfab standard connection configuration
-
Lightweight aluminium pump housing with rear connection cover
Suitable for tipper trucks and other mobile hydraulic applications when the pump's pressure, flow, rotation, and mounting specifications match the system requirements.
Before ordering, verify the full part number, rotation direction, shaft dimensions, mounting flange, suction connection arrangement, and operating conditions.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Brand |
Sunfab |
|
Product Series |
SAPT |
|
Full Product Code |
SAPT-090L-N-DL4-L35-S0S-000 |
|
Pump Type |
Fixed-displacement axial piston tipper pump |
|
Displacement |
90 cm³/rev |
|
Maximum Continuous Speed |
1,500 rpm |
|
Maximum Intermittent Speed |
2,000 rpm |
|
Maximum Working Pressure |
300 bar |
|
Theoretical Flow at 500 rpm |
45 L/min |
|
Theoretical Flow at 1,000 rpm |
90 L/min |
|
Theoretical Flow at 1,500 rpm |
135 L/min |
|
Rotation Direction |
Left-hand (L) |
|
Seal Material |
Nitrile (NBR) |
|
Mounting Flange |
DIN 4-hole, ISO 7653-D |
|
Shaft Standard |
DIN 5462 / ISO 14 |
|
Shaft Spline Dimensions |
8 × 32 × 34.9 mm |
|
Pressure Connection |
G 3/4 BSP |
|
Connection Cover |
S0, 40° Sunfab standard |
|
Connection Configuration |
Sunfab standard (S) |
|
Housing |
Lightweight aluminium housing with rear cover |
|
Approximate Product Weight |
9.8 kg |
What type of pump is the Sunfab SAPT-090L-N-DL4-L35-S0S-000?
It is a fixed-displacement axial piston hydraulic pump from the Sunfab SAPT tipper pump series.
What is the displacement of the SAPT-090L?
The pump has a geometric displacement of 90 cm³ per revolution.
What is the maximum working pressure?
The maximum working pressure is 300 bar.
What is the maximum continuous operating speed?
The maximum continuous speed is 1,500 rpm, with a maximum intermittent speed of 2,000 rpm.
What is the theoretical flow rate?
The theoretical flow is 90 L/min at 1,000 rpm and 135 L/min at 1,500 rpm. Actual flow depends on operating conditions and pump efficiency.
What is the rotation direction?
The “L” in the model code indicates left-hand rotation.
What mounting flange does this pump use?
It uses a DIN 4-hole mounting flange conforming to ISO 7653-D.
What shaft specification does it have?
The pump uses a splined shaft measuring 8 × 32 × 34.9 mm, conforming to DIN 5462 / ISO 14.
What is the pressure port size?
The pressure connection is G 3/4 BSP. Confirm the suction fitting configuration for the exact installation.
What applications is the SAPT-090L designed for?
It is intended for mobile hydraulic applications, particularly tipper trucks and similar vehicle-mounted hydraulic systems.
What should I check before purchasing?
Confirm the complete product code, rotation direction, mounting flange, shaft spline, suction and pressure connections, operating speed, and pressure requirements before installation.
