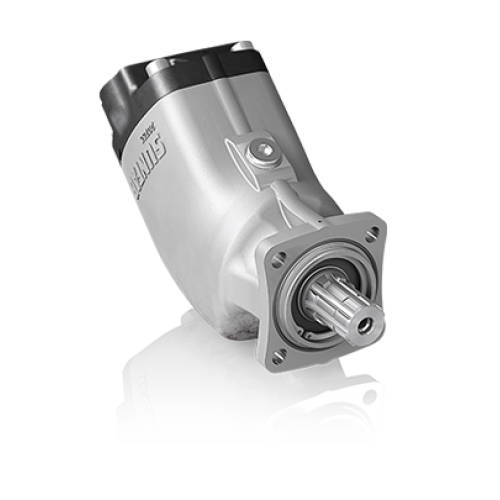

SAP-084L-N-DL4-L35-S0S-000 INCLINED AXIS (MOBILE) PISTON PUMP
- Brand: Sunfab
- Product Code: SAP-084L-N-DL4-L35-S0S-000
- Availability: In Stock
- 2,152.80€
1,792.80€
- Ex Tax: 1,494.00€
The Sunfab SAP-084L-N-DL4-L35-S0S-000 is a high-pressure, fixed-displacement axial piston hydraulic pump designed for demanding mobile hydraulic applications. With a displacement of 83.6 cm³/rev and a maximum working pressure of 400 bar, it delivers high hydraulic flow for truck-mounted cranes, lifting equipment, construction machinery, and other PTO-driven hydraulic systems.
This SAP-series pump features a lightweight metal housing, nitrile (NBR) sealing, a DIN 4-hole mounting flange, and a splined drive shaft conforming to DIN 5462 / ISO 14. The “L” designation identifies the left-hand rotation configuration. The specified S0S connection-cover arrangement is the Sunfab standard configuration for left-hand rotation.
Key Features
-
Fixed-displacement axial piston hydraulic pump
-
Geometric displacement: 83.6 cm³/rev
-
Maximum working pressure: 400 bar
-
Left-hand rotation
-
DIN 4-hole mounting flange, ISO 7653-D
-
Splined shaft: 8 × 32 × 34.9 mm
-
Pressure connection: 1 inch BSP
-
Suction connection: Ø58 mm connection fitting
-
Nitrile (NBR) seals
-
Lightweight metal housing
Before ordering, confirm the full part number, rotation direction, shaft spline, mounting flange, port sizes, and operating-speed requirements to ensure compatibility with your hydraulic system.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Brand |
Sunfab |
|
Product Series |
SAP |
|
Full Product Code |
SAP-084L-N-DL4-L35-S0S-000 |
|
OEM Reference |
23084 |
|
Pump Type |
Fixed-displacement axial piston pump |
|
Displacement |
83.6 cm³/rev |
|
Maximum Continuous Speed |
1,800 rpm |
|
Maximum Intermittent Speed |
2,300 rpm |
|
Maximum Working Pressure |
400 bar |
|
Theoretical Flow at 1,000 rpm |
83.6 L/min |
|
Theoretical Flow at 1,500 rpm |
125.4 L/min |
|
Theoretical Flow at 1,800 rpm |
150.5 L/min |
|
Rotation Direction |
Left-hand (L) |
|
Shaft Seal Material |
Nitrile (NBR) |
|
Mounting Flange |
DIN 4-hole, ISO 7653-D |
|
Shaft Standard |
DIN 5462 / ISO 14 |
|
Shaft Spline Dimensions |
8 × 32 × 34.9 mm |
|
Pressure Connection |
1 inch BSP |
|
Suction Connection |
Ø58 mm connection fitting |
|
Housing |
Lightweight metal housing |
|
Approximate Pump Weight |
13.9 kg |
What type of pump is the Sunfab SAP-084L-N-DL4-L35-S0S-000?
It is a fixed-displacement axial piston hydraulic pump from the Sunfab SAP series.
What is the displacement of the SAP-084L pump?
Its geometric displacement is 83.6 cm³ per revolution.
What is the maximum working pressure?
The maximum working pressure is 400 bar.
What is the maximum continuous operating speed?
The maximum continuous speed is 1,800 rpm, with a maximum intermittent speed of 2,300 rpm.
What is the rotation direction?
The “L” in the model code indicates left-hand rotation.
What mounting flange does this pump use?
It uses a DIN 4-hole mounting flange conforming to ISO 7653-D.
What shaft specification does it have?
It uses a splined shaft measuring 8 × 32 × 34.9 mm, conforming to DIN 5462 / ISO 14.
What are the hydraulic connections?
Product listings specify a 1-inch BSP pressure connection and a Ø58 mm suction fitting. Confirm the fitting configuration for your exact order.
What is the approximate weight?
The catalogue lists an approximate pump weight of 13.9 kg.
Where can the Sunfab SAP-084L be used?
It is suitable for mobile hydraulic applications such as truck-mounted cranes, lifting equipment, and PTO-driven machinery when the pump specifications match the system requirements.
What should I verify before ordering?
Check the full product code, rotation direction, mounting flange, shaft spline, hydraulic connections, operating speed, and pressure requirements before installation.
