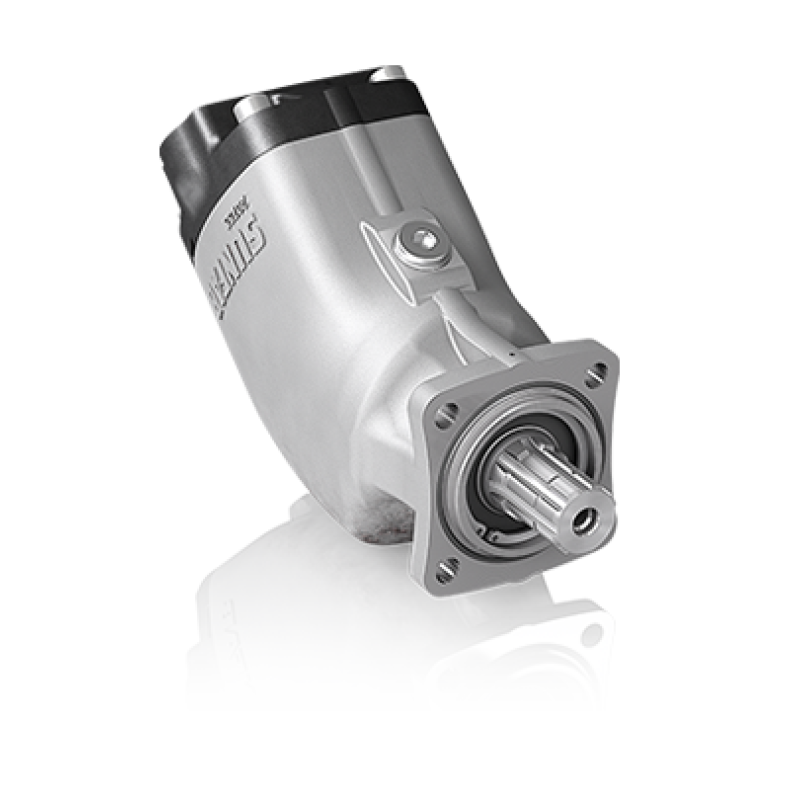

SAP-064L-N-DL4-L35-S0S-000 INCLINED AXIS (MOBILE) PISTON PUMP
- Brand: Sunfab
- Product Code: SAP-064L-N-DL4-L35-S0S-000
- Availability: In Stock
- 1,994.40€
1,634.40€
- Ex Tax: 1,362.00€
The Sunfab SAP-064L-N-DL4-L35-S0S-000 is a high-pressure, fixed-displacement axial piston hydraulic pump designed for demanding mobile hydraulic applications. With a geometric displacement of 63.6 cm³/rev and a maximum working pressure of 400 bar, it delivers high hydraulic flow for truck-mounted cranes, lifting equipment, construction machinery, and other PTO-driven hydraulic systems.
This Sunfab SAP-series pump features a lightweight aluminium housing, nitrile (NBR) seals, a DIN 4-hole mounting flange, and a splined drive shaft conforming to DIN 5462 / ISO 14. The model is configured for left-hand rotation and uses a G 3/4 pressure connection with a Ø45 mm suction connection.
Key Features
-
Fixed-displacement axial piston hydraulic pump
-
63.6 cm³/rev geometric displacement
-
Maximum working pressure of 400 bar
-
Maximum continuous speed of 1,900 rpm
-
Maximum intermittent speed of 2,500 rpm
-
Left-hand rotation configuration
-
DIN 4-hole mounting flange, ISO 7653-D
-
Splined shaft: 8 × 32 × 34.9 mm
-
G 3/4 pressure port
-
Ø45 mm suction connection
-
Lightweight aluminium housing
-
Nitrile (NBR) sealing
Before ordering, confirm the complete part number, rotation direction, shaft spline, mounting flange, port connections, and operating conditions to ensure compatibility with your hydraulic system.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Brand |
Sunfab |
|
Product Series |
SAP |
|
Full Product Code |
SAP-064L-N-DL4-L35-S0S-000 |
|
OEM Reference |
23064 |
|
Pump Type |
Fixed-displacement axial piston pump |
|
Displacement |
63.6 cm³/rev |
|
Maximum Continuous Speed |
1,900 rpm |
|
Maximum Intermittent Speed |
2,500 rpm |
|
Maximum Working Pressure |
400 bar |
|
Theoretical Flow at 500 rpm |
31.8 L/min |
|
Theoretical Flow at 1,000 rpm |
63.6 L/min |
|
Theoretical Flow at 1,500 rpm |
95.4 L/min |
|
Rotation Direction |
Left-hand (L) |
|
Seal Material |
Nitrile (NBR) |
|
Mounting Flange |
DIN 4-hole, ISO 7653-D |
|
Shaft Standard |
DIN 5462 / ISO 14 |
|
Shaft Spline Dimensions |
8 × 32 × 34.9 mm |
|
Pressure Connection |
G 3/4 |
|
Suction Connection |
Ø45 mm |
|
Housing Material |
Aluminium |
|
Approximate Product Weight |
9.8 kg |
What type of pump is the Sunfab SAP-064L-N-DL4-L35-S0S-000?
It is a fixed-displacement axial piston hydraulic pump from the Sunfab SAP series.
What is the displacement of the SAP-064L pump?
The geometric displacement is 63.6 cm³ per revolution.
What is the maximum working pressure?
The maximum working pressure is 400 bar.
What is the maximum continuous operating speed?
The maximum continuous speed is 1,900 rpm. The maximum intermittent speed is 2,500 rpm.
What is the rotation direction?
The “L” in the model code identifies the left-hand rotation configuration.
What mounting flange does this pump use?
It uses a DIN 4-hole mounting flange conforming to ISO 7653-D.
What shaft specification does it have?
The pump uses a splined shaft measuring 8 × 32 × 34.9 mm, conforming to DIN 5462 / ISO 14.
What are the inlet and outlet connections?
The suction connection is Ø45 mm, and the pressure connection is G 3/4.
How much does the Sunfab SAP-064L weigh?
The product-specific technical sheet lists an approximate weight of 9.8 kg.
Where can this hydraulic pump be used?
It is designed for mobile hydraulic applications such as truck-mounted cranes, lifting systems, and PTO-driven equipment, provided the system operating requirements match the pump specifications.
What should I check before purchasing?
Verify the full part number, rotation direction, shaft dimensions, mounting flange, suction and pressure connections, operating speed, and pressure requirements before installation.
