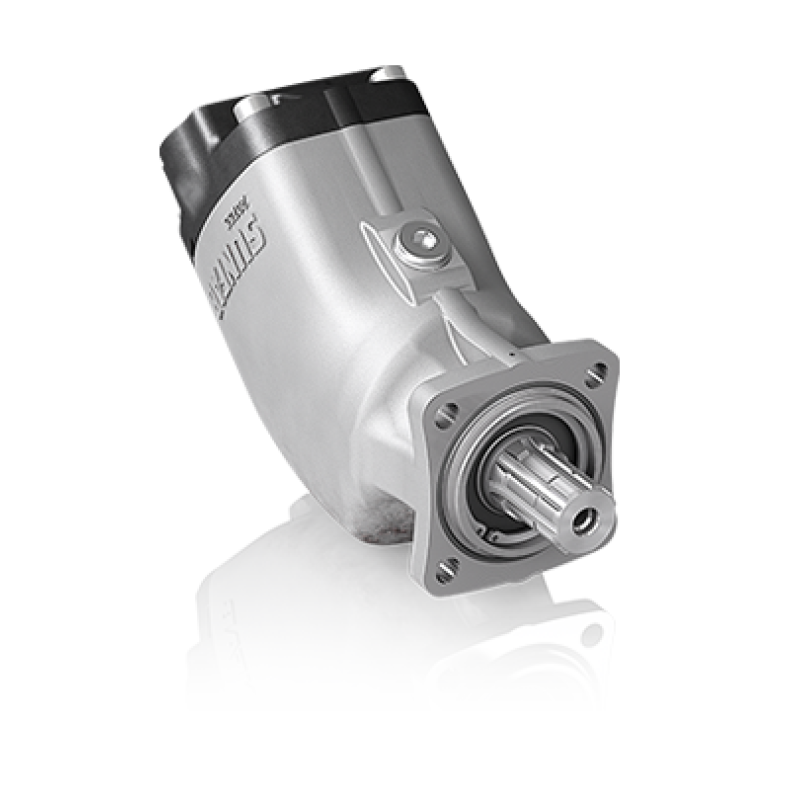

SAP-056L-N-DL4-L35-S0S-000 INCLINED AXIS (MOBILE) PISTON PUMP
- Brand: Sunfab
- Product Code: SAP-056L-N-DL4-L35-S0S-000
- Availability: In Stock
- 1,812.00€
1,572.00€
- Ex Tax: 1,310.00€
The Sunfab SAP-056L-N-DL4-L35-S0S-000 is a high-pressure, fixed-displacement axial piston hydraulic pump designed for demanding mobile hydraulic applications. With a displacement of 56.7 cm³/rev and a maximum working pressure of 400 bar, it delivers reliable hydraulic power for equipment such as truck-mounted cranes, lifting systems, construction machinery, and PTO-driven hydraulic installations.
The pump features a lightweight aluminium housing, nitrile (NBR) sealing, a DIN 4-hole mounting flange, and a splined drive shaft conforming to DIN 5462 / ISO 14. Its left-hand rotation configuration and G 3/4 pressure connection make it suitable for hydraulic systems designed around these specifications.
Key Features
-
Fixed-displacement axial piston hydraulic pump
-
Geometric displacement: 56.7 cm³/rev
-
Maximum working pressure: 400 bar
-
Continuous operating speed: up to 2,000 rpm
-
Left-hand rotation
-
DIN 4-hole mounting flange, ISO 7653-D
-
Splined shaft: 8 × 32 × 34.9 mm, DIN 5462 / ISO 14
-
G 3/4 pressure connection
-
Lightweight aluminium housing
-
Nitrile (NBR) shaft sealing
Before ordering, verify the complete part number, rotation direction, shaft spline, mounting flange, connection sizes, and operating conditions against your existing hydraulic system.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Brand |
Sunfab |
|
Product Series |
SAP |
|
Full Product Code |
SAP-056L-N-DL4-L35-S0S-000 |
|
Product Type |
Fixed-displacement axial piston pump |
|
Displacement |
56.7 cm³/rev |
|
Maximum Continuous Speed |
2,000 rpm |
|
Maximum Intermittent Speed |
2,600 rpm |
|
Maximum Working Pressure |
400 bar |
|
Theoretical Flow at 1,000 rpm |
56.7 L/min |
|
Theoretical Flow at 1,500 rpm |
85.1 L/min |
|
Theoretical Flow at 2,000 rpm |
113.4 L/min |
|
Rotation Direction |
Left-hand (L) |
|
Shaft Seal Material |
Nitrile (NBR) |
|
Mounting Flange |
DIN 4-hole, ISO 7653-D |
|
Shaft Standard |
DIN 5462 / ISO 14 |
|
Shaft Spline Dimensions |
8 × 32 × 34.9 mm |
|
Pressure Connection |
G 3/4 BSP |
|
Suction Connection |
Sunfab standard; confirm fitting configuration |
|
Housing Material |
Lightweight aluminium |
|
Approximate Pump Weight |
9.8 kg |
|
Reference Number |
23056 |
What type of pump is the Sunfab SAP-056L-N-DL4-L35-S0S-000?
It is a fixed-displacement axial piston hydraulic pump from the Sunfab SAP series.
What is the displacement of the SAP-056L pump?
Its geometric displacement is 56.7 cm³ per revolution.
What is the maximum working pressure?
The maximum working pressure is 400 bar.
What is the maximum continuous operating speed?
The manufacturer's catalogue lists a maximum continuous speed of 2,000 rpm for the SAP-056 model. Check the applicable operating conditions before use.
What is the rotation direction?
The “L” in the model code indicates left-hand rotation.
What mounting flange does this pump use?
It uses a DIN 4-hole mounting flange conforming to ISO 7653-D.
What shaft specification does it have?
The pump uses a splined shaft measuring 8 × 32 × 34.9 mm, conforming to DIN 5462 / ISO 14.
What is the pressure connection size?
The pressure connection is G 3/4 BSP.
Where can this hydraulic pump be used?
It is designed for mobile hydraulic applications, including PTO-driven equipment, truck-mounted cranes, and lifting systems when the pump's specifications match the system requirements.
What should I check before purchasing?
Confirm the complete part number, rotation direction, mounting flange, shaft spline, port configuration, operating speed, and pressure requirements before installation.
