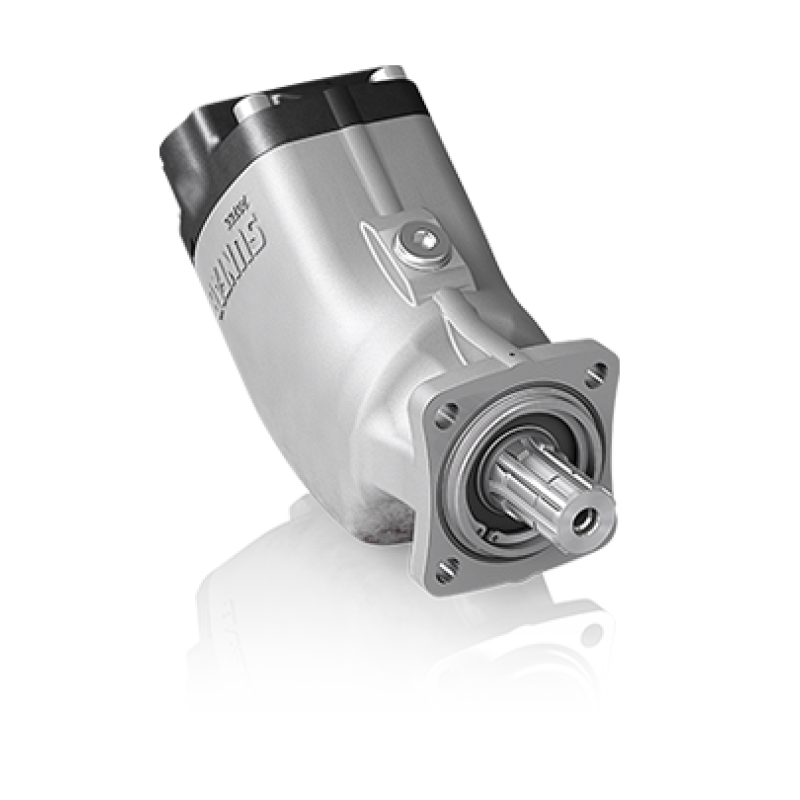

SAP-047L-N-DL4-L35-S0S-000 INCLINED AXIS (MOBILE) PISTON PUMP
- Brand: Sunfab
- Product Code: SAP-047L-N-DL4-L35-S0S-000
- Availability: In Stock
- 1,752.00€
1,512.00€
- Ex Tax: 1,260.00€
The Sunfab SAP-047L-N-DL4-L35-S0S-000 is a high-pressure, fixed-displacement axial piston hydraulic pump designed for demanding mobile hydraulic applications. With a displacement of 47.1 cm³/rev and a maximum working pressure of 400 bar, it provides reliable hydraulic power for equipment such as truck-mounted cranes, lifting systems, and other PTO-driven hydraulic machinery.
The pump features a lightweight aluminium housing, nitrile (NBR) shaft sealing, a DIN 4-hole mounting flange, and a splined shaft conforming to DIN 5462 / ISO 14. Its left-hand rotation configuration and G 3/4 pressure connection make it suitable for hydraulic systems designed around these specifications.
Key Features
-
Fixed-displacement axial piston pump
-
47.1 cm³/rev displacement
-
Maximum continuous working pressure: 400 bar
-
Left-hand rotation
-
DIN 4-hole mounting flange, ISO 7653-D
-
Splined shaft: 8 × 32 × 34.9 mm, DIN 5462 / ISO 14
-
G 3/4 pressure connection
-
Lightweight aluminium pump housing
-
Nitrile (NBR) sealing
Before ordering, verify the rotation direction, mounting flange, shaft dimensions, port configuration, and operating-speed requirements against your existing hydraulic system.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Brand |
Sunfab |
|
Product Series |
SAP |
|
Product Code |
SAP-047L-N-DL4-L35-S0S-000 |
|
Pump Type |
Fixed-displacement axial piston pump |
|
Displacement |
47.1 cm³/rev |
|
Maximum Continuous Speed |
1,900 rpm |
|
Maximum Intermittent Speed |
2,500 rpm |
|
Maximum Working Pressure |
400 bar |
|
Theoretical Flow at 1,500 rpm |
70.6 L/min |
|
Rotation Direction |
Left-hand (L) |
|
Shaft Seal Material |
Nitrile (NBR) |
|
Mounting Flange |
DIN 4-hole, ISO 7653-D |
|
Shaft Standard |
DIN 5462 / ISO 14 |
|
Shaft Spline Dimensions |
8 × 32 × 34.9 mm |
|
Pressure Connection |
G 3/4 BSP |
|
Suction Connection |
Ø45 mm connection; confirm fitting configuration |
|
Housing Material |
Aluminium |
|
Approximate Product Weight |
9.8 kg |
|
OEM Reference |
23047 |
What type of pump is the Sunfab SAP-047L-N-DL4-L35-S0S-000?
It is a fixed-displacement axial piston hydraulic pump from the Sunfab SAP series.
What is the displacement of the Sunfab SAP-047L pump?
The pump has a geometric displacement of 47.1 cm³ per revolution.
What is the maximum working pressure?
The maximum working pressure is 400 bar.
What is the rotation direction?
The model code includes “L,” indicating a left-hand rotation configuration.
What mounting flange does this pump use?
It uses a DIN 4-hole mounting flange conforming to ISO 7653-D.
What shaft does the SAP-047L use?
It uses a splined shaft measuring 8 × 32 × 34.9 mm, according to DIN 5462 / ISO 14.
What is the pressure port size?
The pressure connection is G 3/4 BSP.
Where can this hydraulic pump be used?
It is designed for demanding mobile hydraulic systems, including PTO-driven applications such as truck-mounted cranes and lifting equipment, provided the system requirements match the pump specifications.
What should I check before purchasing?
Check the full product code, rotation direction, shaft spline, mounting flange, connection sizes, operating speed, and pressure requirements before installation.
