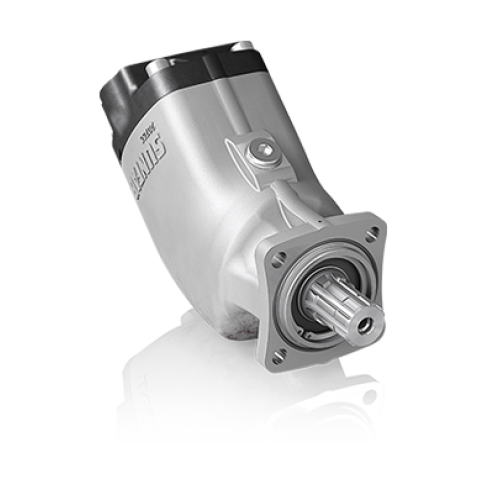

SAP-040L-N-DL4-L35-S0S-000 INCLINED AXIS (MOBILE) PISTON PUMP

The Sunfab SAP-040L-N-DL4-L35-S0S-000 is a fixed displacement axial piston hydraulic pump designed for demanding mobile hydraulic applications. Manufactured by Sunfab, this SAP 040 pump provides reliable hydraulic power for truck-mounted equipment, transport vehicles and compatible industrial hydraulic systems.

With a nominal displacement of 41.2 cm³/rev and a maximum continuous working pressure of 400 bar, the Sunfab SAP-040 hydraulic pump is designed for high-pressure hydraulic circuits requiring dependable performance and efficient power transmission.

This model features left-hand rotation, a DIN four-hole mounting flange and a splined shaft conforming to DIN 5462 / ISO 14. Its standard connection configuration supports installation in compatible mobile hydraulic systems.

The Sunfab SAP-040L-N-DL4-L35-S0S-000 is suitable for maintenance and replacement applications where the complete pump configuration matches the original equipment specifications.

Product Code: SAP-040L-N-DL4-L35-S0S-000
Brand: Sunfab
Product Series: SAP 040
Pump Type: Fixed Displacement Axial Piston Pump
Displacement: 41.2 cm³/rev
Rotation Direction: Left-hand (counterclockwise)
Maximum Continuous Speed: 2500 rpm
Maximum Continuous Working Pressure: 400 bar
Mounting Flange: DIN 4-hole, ISO 7653-D
Shaft Type: DIN 5462 / ISO 14
Shaft Spline Dimensions: 8 × 32 × 34.9 mm
Pressure Connection: G 3/4 BSP
Seal Material: Nitrile (NBR)

Before ordering, verify the shaft, mounting flange, hydraulic connections, rotation direction and operating conditions against your existing hydraulic system.

Technical Specifications

SAP-SAPT-012-130-DIN-Datasheet.pdf
