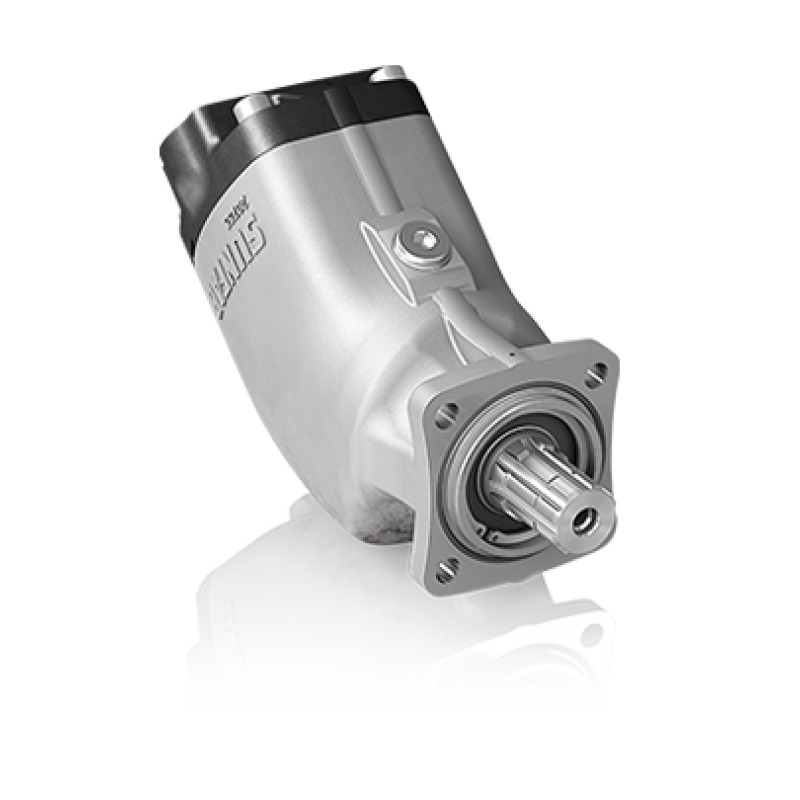

SAP-034L-N-DL4-L35-S0S-000 INCLINED AXIS (MOBILE) PISTON PUMP
- Brand: Sunfab
- Product Code: SAP-034L-N-DL4-L35-S0S-000
- Availability: In Stock
- 1,636.80€
1,396.80€
- Ex Tax: 1,164.00€
The Sunfab SAP-034L-N-DL4-L35-S0S-000 is a fixed displacement axial piston hydraulic pump designed for demanding mobile hydraulic applications. Its lightweight aluminium housing, compact design and high-pressure capability make it suitable for hydraulic systems requiring reliable performance and efficient power transmission.
With a displacement of 34.2 cm³/rev and a maximum continuous working pressure of 400 bar, this Sunfab SAP 034 hydraulic pump is designed for applications in transport, construction, forestry and truck-mounted hydraulic equipment.
The pump features left-hand rotation, a DIN 4-hole mounting flange and a splined shaft conforming to DIN 5462 / ISO 14. Its standard Sunfab connection configuration supports integration into compatible mobile hydraulic systems.
Product Code: SAP-034L-N-DL4-L35-S0S-000
Brand: Sunfab
Product Series: SAP 034
Pump Type: Fixed Displacement Axial Piston Pump
Displacement: 34.2 cm³/rev
Rotation Direction: Left-hand (counterclockwise)
Maximum Continuous Speed: 2300 rpm
Maximum Intermittent Speed: 3000 rpm
Maximum Continuous Working Pressure: 400 bar
Mounting Flange: DIN 4-hole, ISO 7653-D
Shaft Type: DIN 5462 / ISO 14, splined 8 × 32 × 34.9 mm
Pressure Outlet: G 3/4 BSP
Seal Material: NBR
The Sunfab SAP-034L-N-DL4-L35-S0S-000 is suitable for mobile hydraulic systems where its technical specifications and installation configuration meet the equipment manufacturer's requirements. Verify shaft, flange and port compatibility before ordering.
Technical Specifications Table
|
Product Specification |
Technical Details |
|---|---|
|
Product Code |
SAP-034L-N-DL4-L35-S0S-000 |
|
Manufacturer |
Sunfab |
|
Product Series |
SAP 034 |
|
Hydraulic Pump Type |
Fixed Displacement Axial Piston Pump |
|
Displacement |
34.2 cm³/rev |
|
Rotation Direction |
Left-hand (CCW) |
|
Maximum Continuous Speed |
2300 rpm |
|
Maximum Intermittent Speed |
3000 rpm |
|
Maximum Continuous Pressure |
400 bar |
|
Mounting Flange |
DIN 4-hole, ISO 7653-D |
|
Shaft Standard |
DIN 5462 / ISO 14 |
|
Shaft Dimensions |
8 × 32 × 34.9 mm |
|
Pressure Connection |
G 3/4 BSP |
|
Seal Material |
NBR |
|
Housing Material |
Aluminium |
|
Application |
Mobile and Truck-Mounted Hydraulic Systems |
SAP-SAPT-012-130-DIN-Datasheet.pdf
FAQ
What is the Sunfab SAP-034L-N-DL4-L35-S0S-000?
It is a fixed displacement axial piston hydraulic pump from Sunfab's SAP series, designed for demanding mobile hydraulic applications.
What is the displacement of the SAP-034 hydraulic pump?
The nominal displacement is 34.2 cm³ per revolution.
What is the maximum continuous working pressure?
The specified maximum continuous working pressure is 400 bar.
What is the rotation direction?
This model is configured for left-hand (counterclockwise) rotation.
What is the maximum operating speed?
The maximum continuous speed is 2300 rpm, and the maximum intermittent speed is 3000 rpm.
Which mounting flange and shaft does this pump use?
It uses a DIN 4-hole mounting flange conforming to ISO 7653-D and a splined shaft conforming to DIN 5462 / ISO 14.
Where is the Sunfab SAP 034 hydraulic pump used?
It is intended for mobile hydraulic applications, including compatible truck-mounted, transport and construction equipment.
