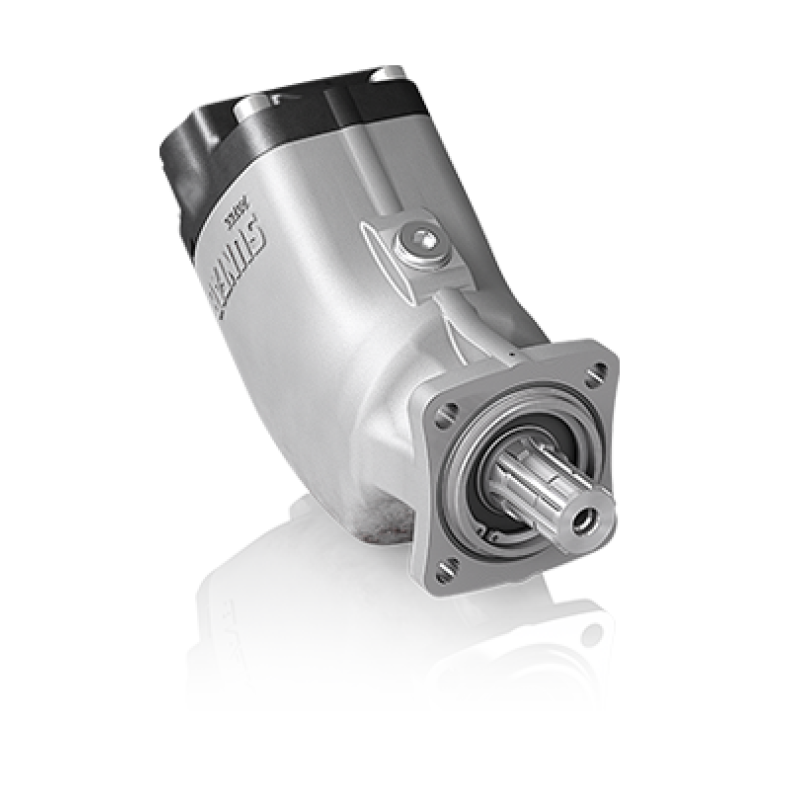

SAP-012L-N-DL4-L35-S0S-000 INCLINED AXIS (MOBILE) PISTON PUMP
- Brand: Sunfab
- Product Code: SAP-012L-N-DL4-L35-S0S-000
- Availability: In Stock
- 1,516.80€
1,276.80€
- Ex Tax: 1,064.00€
The Sunfab SAP-012L-N-DL4-L35-S0S-000 is a fixed displacement axial piston hydraulic pump designed for demanding mobile hydraulic applications. Featuring a compact, lightweight construction and reliable hydraulic performance, this pump is suitable for truck-mounted hydraulic systems and industrial equipment.
With a displacement of 12.6 cm³/rev, left-hand rotation and a maximum continuous working pressure of 400 bar, the Sunfab SAP 012 hydraulic pump provides efficient hydraulic power for applications requiring dependable performance and compact installation dimensions.
The pump features a DIN mounting flange, a splined shaft and a standard Sunfab connection cover. It can be used in applications such as tank trucks, concrete mixer trucks, vacuum trucks, waste collection vehicles and other mobile hydraulic systems, subject to system compatibility.
Product Code: SAP-012L-N-DL4-L35-S0S-000
Brand: Sunfab
Product Type: Fixed Displacement Axial Piston Pump
Series: SAP 012
Displacement: 12.6 cm³/rev
Rotation Direction: Left-hand (counterclockwise)
Maximum Continuous Speed: 2300 rpm
Maximum Intermittent Speed: 3000 rpm
Maximum Continuous Working Pressure: 400 bar
Mounting Flange: DIN 4-hole, ISO 7653-D
Shaft Type: DIN 5462 / ISO 14 splined shaft
Outlet Connection: G 3/4 BSP
Choose the original Sunfab SAP-012L-N-DL4-L35-S0S-000 hydraulic pump for your mobile hydraulic system. Verify mounting, shaft, port and operating requirements before ordering to ensure compatibility.
