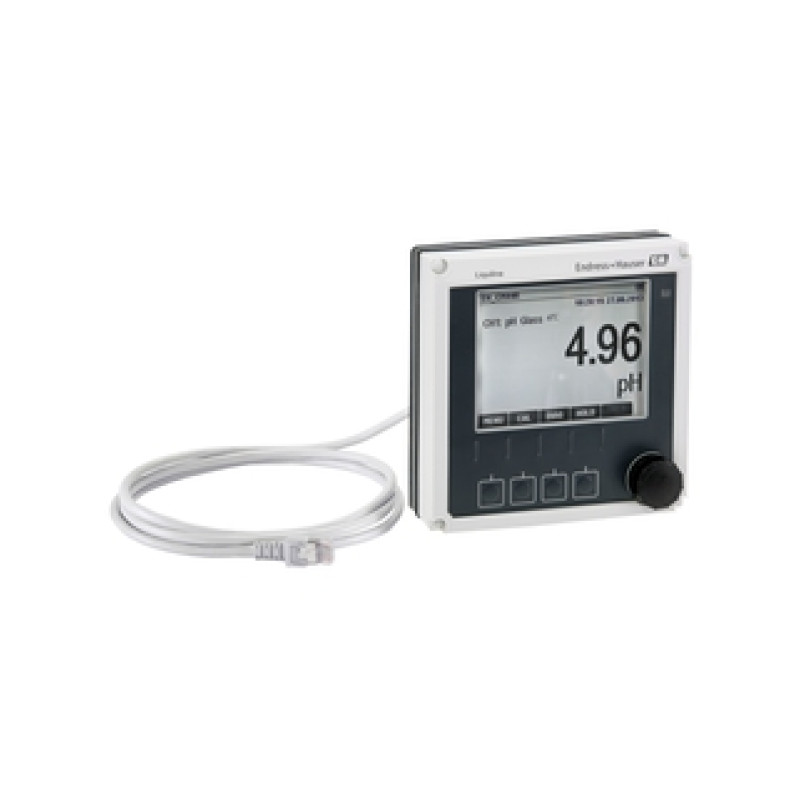

CM444R Liquiline 4-channel transmitter
- Brand: EH
- Product Code: CM444R
- Availability: In Stock
-
5,804.64€
- Ex Tax: 4,837.20€
-
Measuring principle
Potentiometric
-
Application
Modular 4 wire controller
Multichannel: 1 to 4 digital channels for Memosens protocol
Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
4 sensors connectable in any combination
Functionality modular extendable at any time
Plug and play for modules and sensors -
Characteristic
Robust plastic housing
All non-ex applications -
Design
2 to 4x Memosens input, 2 to 8x current output,
Alarmrelay, 4x relay, SD card for software update and copy & paste of setup -
Material
DIN rail housing: PC-FR
Display seal: EPDM -
Dimension
220 x 100 x 97 mm
8.66 x 3.94 x 3.82 inch -
Process temperature
0 to 55 °C (32 to 130 °F)
-
Ingress protection
Transmitter: IP20
Optional Display: IP66 -
Input
1 to 4x Memosens digital input
2x 0/4 to 20mA Input optional
2 to 4x Digital input optional -
Output / communication
2 to 8x 0/4 to 20 mA current outputs, alarmrelay,
4x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet -
Additional certifications
EAC, cCSAus
