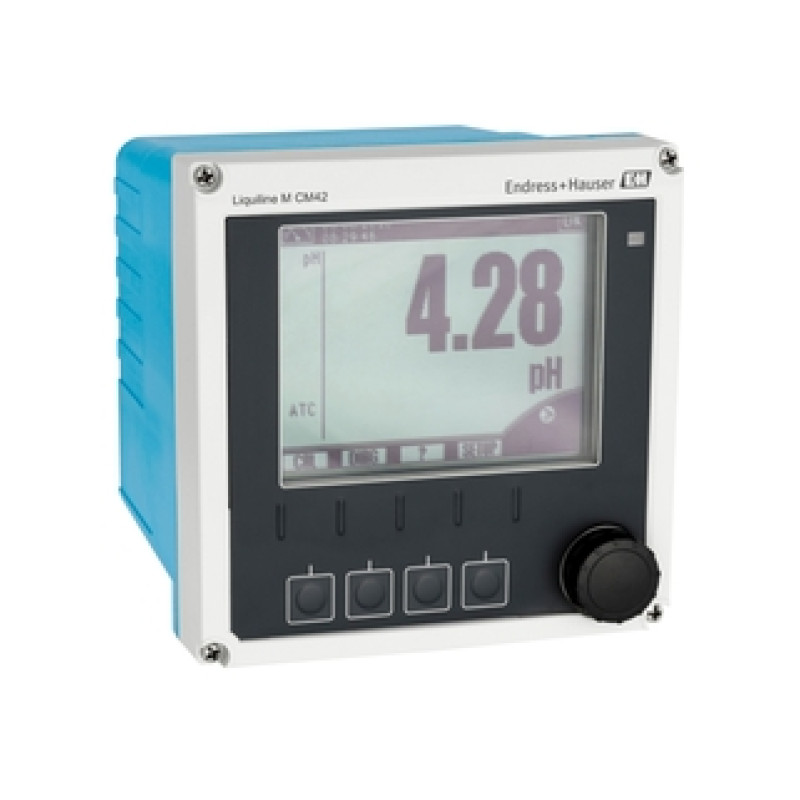

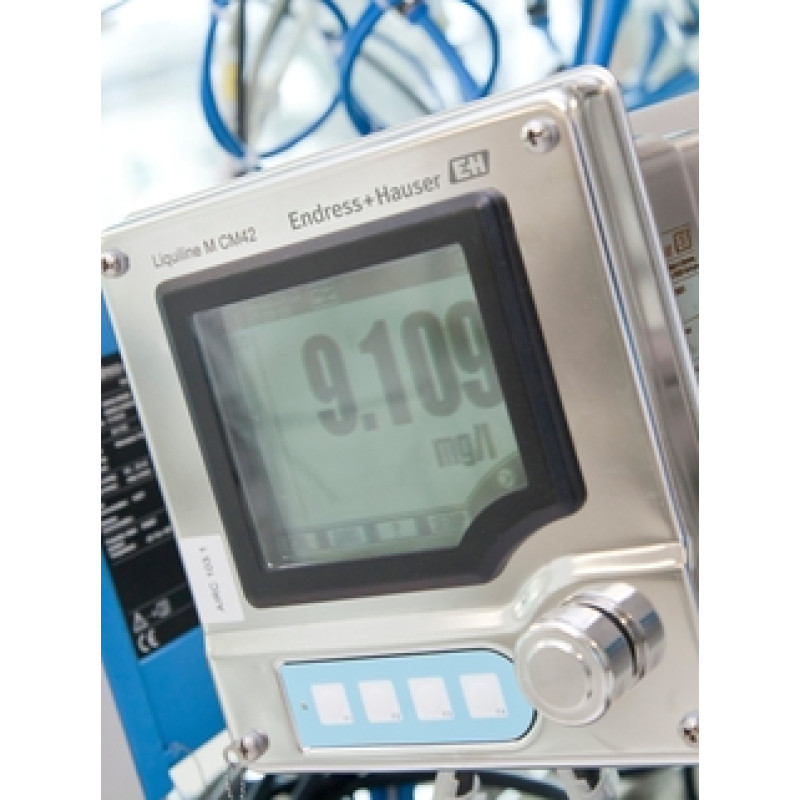

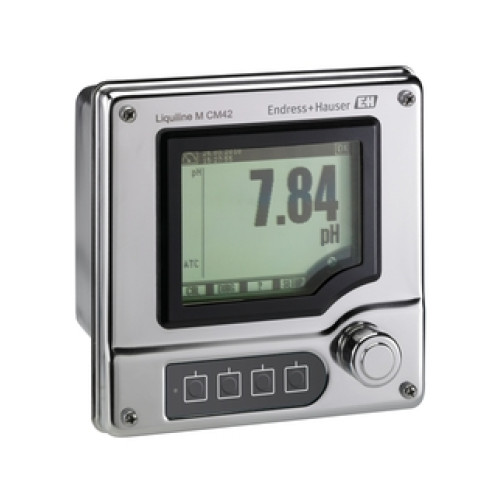

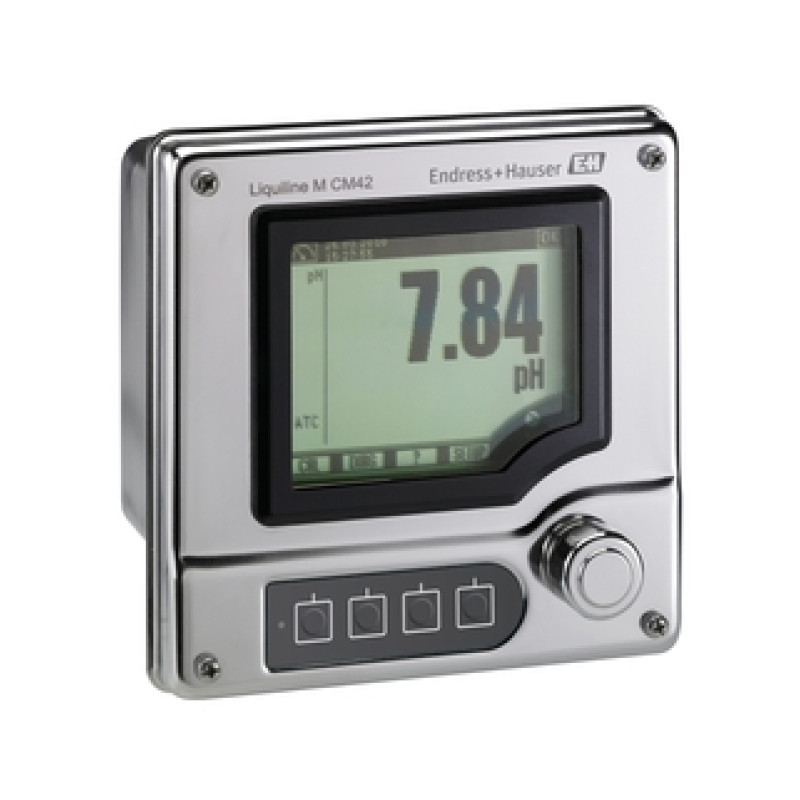

CM42 Liquiline M 1-channel transmitter

Previous: Mycom S CLM153, Mycom S CPM153, CLD431, Mypro CLM431, Mypro CPM431

• Measuring principle

  ISFET

• Application

  Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

• Characteristic

  Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

• Measuring principle

  Potentiometric pH measurement

• Design

  Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol
  Liquiline is developed acc. to the international safety standard IEC 61508

• Material

  Plastic or stainless steel housing with EPDM sealings

• Dimension

  Plastic housing:
  144 x 144 x 148 mm
  5.67 x 5.67 x 5.83 inch
  Stainless Steel:
  174 x 174 x 134 mm
  6.85 x 6.85 x 5.28 inch

• Temperature sensor

  Applicable:
  Pt100, Pt1000, NTC 30K

• Ex certification

  : ATEX, IECEx, FM, CSA, NEPSI, EAC, UKEx, JPN Ex

• Ingress protection

  IP66/67, NEMA 4X

• Input

  One channel transmitter for Memosens and analog (pH, ORP, conductivity)

• Output / communication

  1/2 x 4 to 20 mA, HART, Profibus PA, FF
  Additional second output possible, also later
