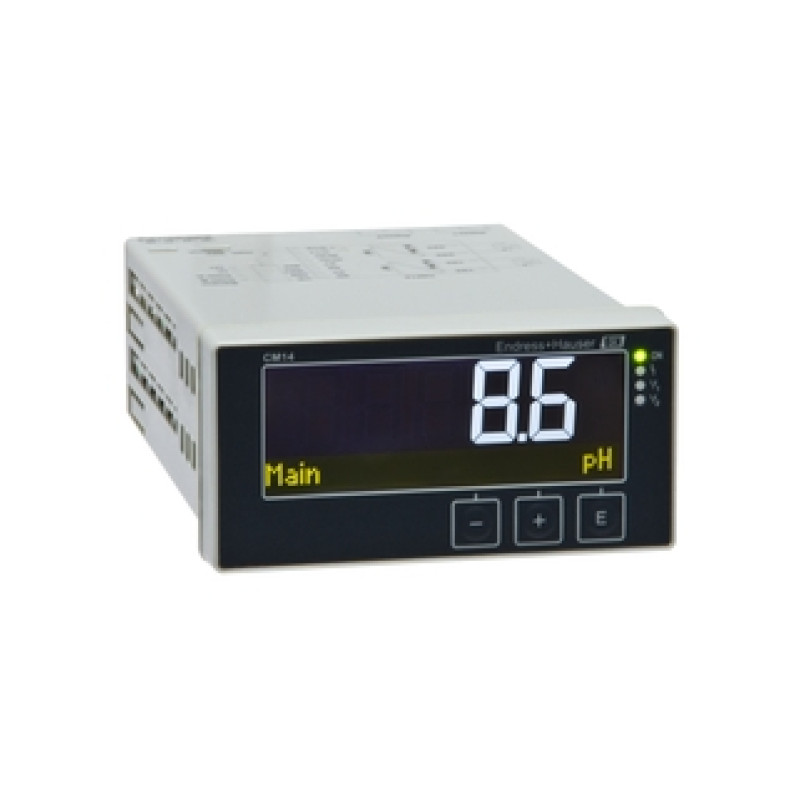

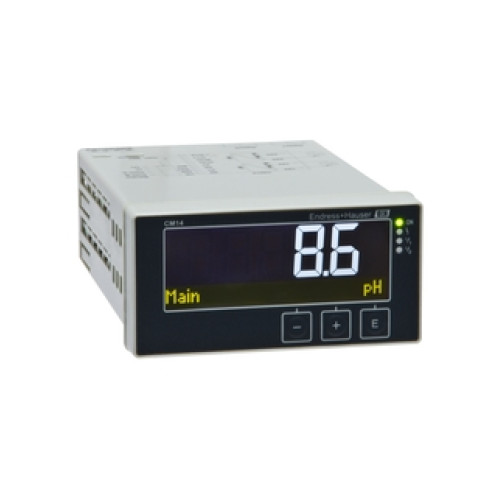

CM14 Liquiline 1-channel transmitter
- Brand: EH
- Product Code: CM14
- Availability: In Stock
-
2,577.60€
- Ex Tax: 2,148.00€
-
Measuring principle
Potentiometric
-
Application
Water, waste water
-
Characteristic
4-wire transmitter with a two-line display
-
Measuring principle
pH/ORP transmitter for digital Memosens sensors.
-
Design
panel housing (48x96 mm)
-
Material
panel housing, polycarbonate
front membrane polyester -
Dimension
48 mm x 96 mm x 152 mm(built in depth)
3.74x3.74x5.98 inch (built in depth) -
Temperature sensor
Display and current output
-
Ex certification
no
-
Ingress protection
Front IP65 , NEMA 4X, Body IP20
-
Input
One-channel-transmitter
-
Output / communication
0/4-20mA
-
Additional certifications
CSA C/US general purpose
UL listed
