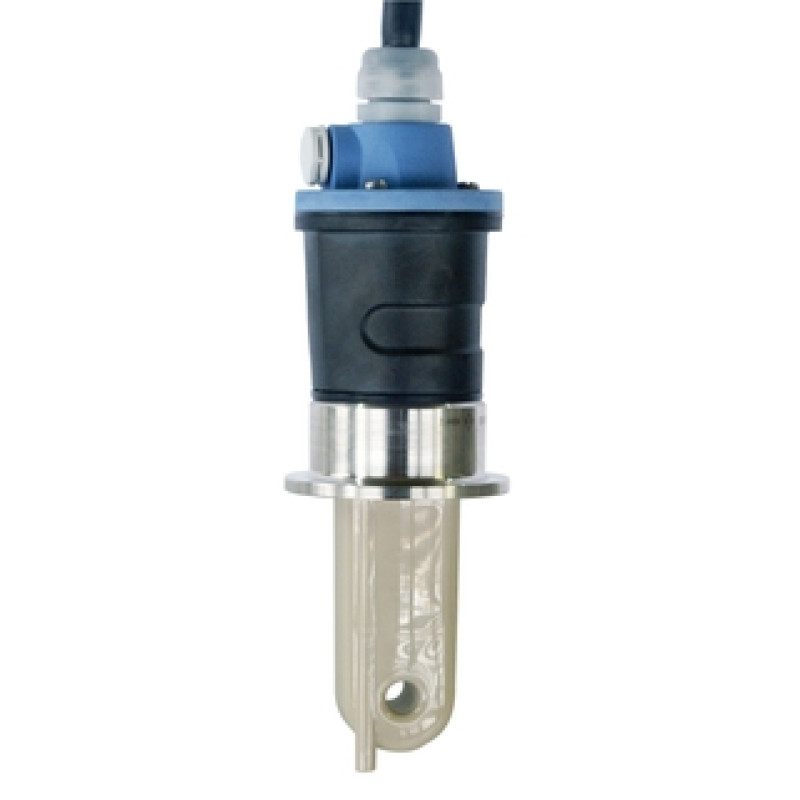

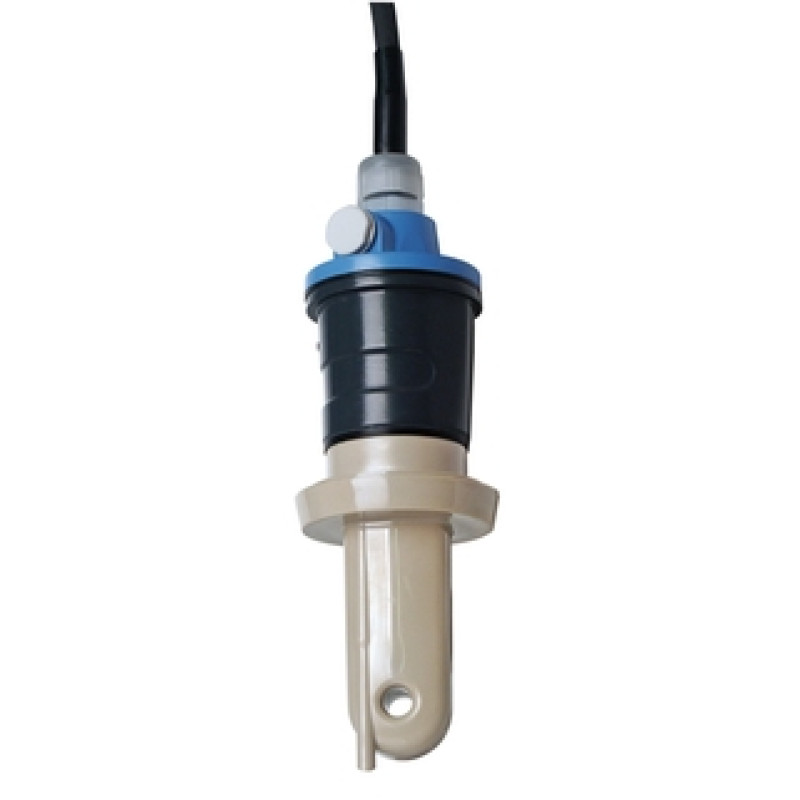

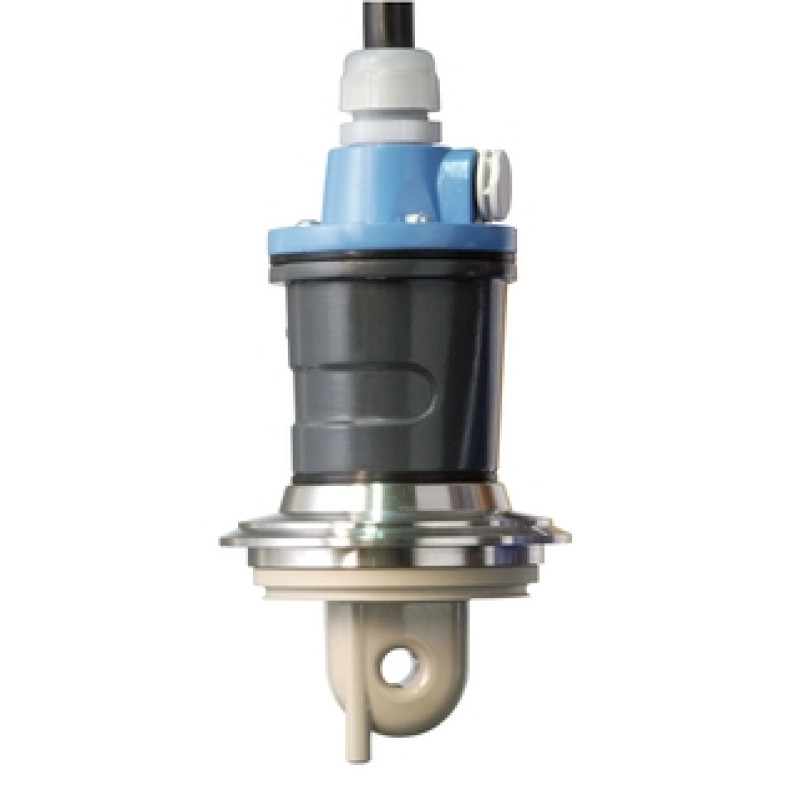

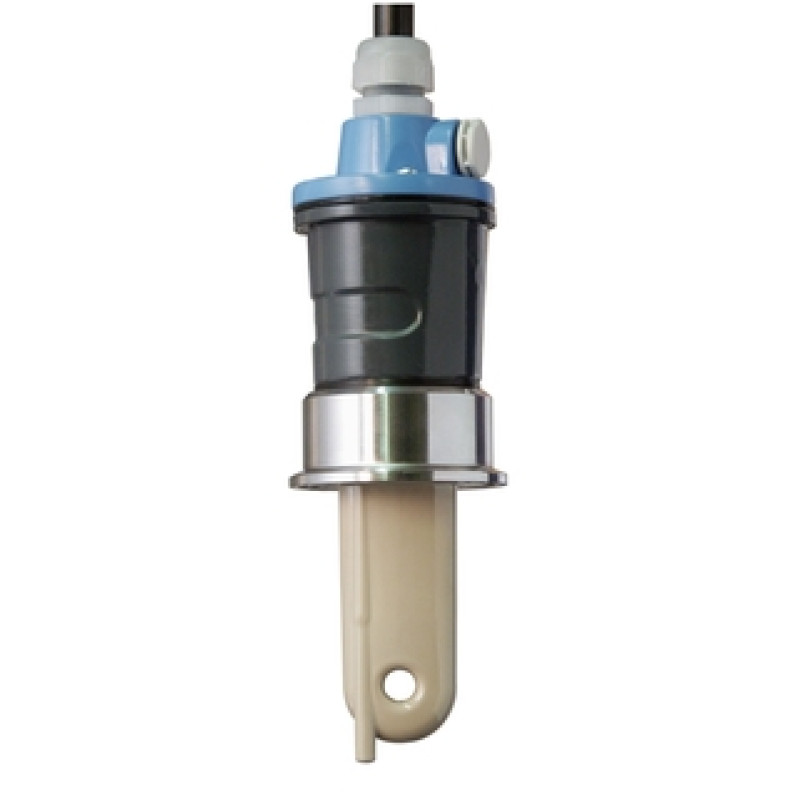

CLS54 Indumax Analog conductivity sensor
- Brand: EH
- Product Code: CLS54
- Availability: In Stock
-
3,620.16€
- Ex Tax: 3,016.80€
-
Measuring principle
Inductive
-
Application
Food, beverage and pharmaceutical industries and in biotechnology.
-
Characteristic
Specifically intended for use in hygienic applications and especially suitable for following applications:
Phase separation, control of CIP, concentration control, product monitoring, leakage monitoring. -
Measurement range
100 µS/cm - 2000 mS/cm Cell constant k: 6,3 1/cm
-
Measuring principle
Inductive conductivity measurement
-
Design
Hygienic design with food-grade virgin PEEK body in jointless and creviceless design including all hygienic certifications.
-
Material
In contact with medium: Virgin PEEK
Surface roughness: Ra<0.9µm -
Process temperature
Process temperature: -10°C - +125°C
(14°F - 257°F)
Sterilisation: 150°C/5 bar (max. 60 min.)
(302°F / 72.5 psi) -
Process pressure
12 bar(174 psi)/20°C(68°F)
8 bar(116 psi)/125°C(257°F) -
Temperature sensor
Pt1000 (class A)with a temperature response time T90 < 27s.
-
Ex certification
ATEX II G EEx ia IIc T3/T4/T6
FM/CSA IS NI CL.I,II,III,Div.1&2 group A-G in connection with the transmitter CM42. -
Connection
Dairy pipe, Aseptic-fitting, Clamp ISO 2852, SMS-2", Varivent N DN 40-125, Neumo Biocontrol D50.
-
Ingress protection
IP68/NEMA6P
-
Additional certifications
FDA, EHEDG, 3-A, Biological reactivity (USP class VI part 87 and 88)
