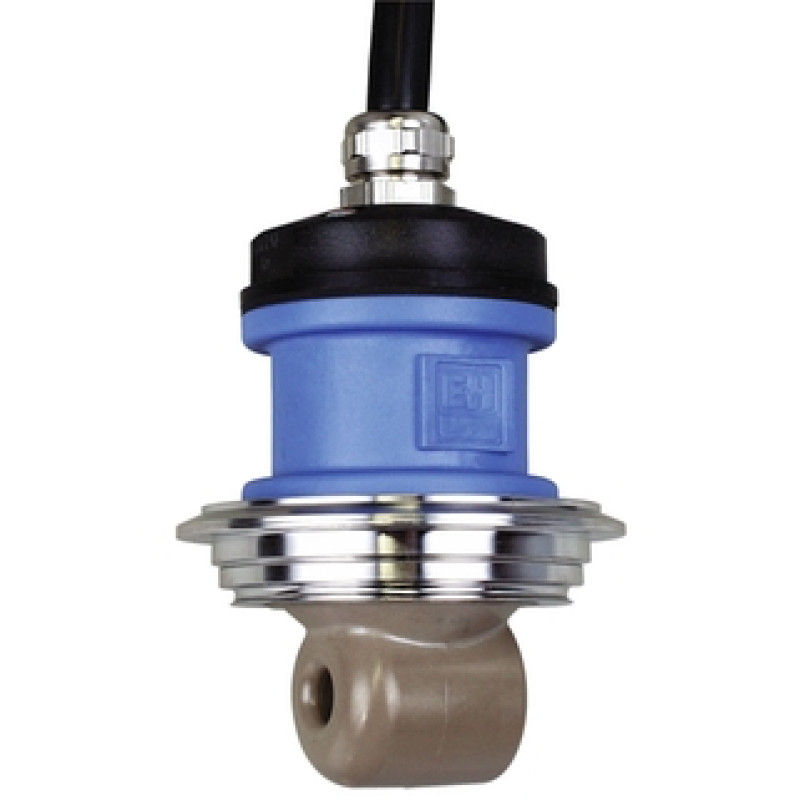

CLS52 Indumax Analog conductivity sensor
- Brand: EH
- Product Code: CLS52
- Availability: In Stock
-
3,945.60€
- Ex Tax: 3,288.00€
-
Measuring principle
Inductive
-
Application
Food, pharmaceuticals
-
Characteristic
Hygienic inductive measuring cell for conductivity measurements, concentration control, CIP-control, cleaning and phase separation.
-
Measurement range
0.1 to 2000 mS/cm
-
Measuring principle
Inductive conductivity measurement.
-
Design
Hygienic inductive conductivity cell with an outside temperature sensor for a faster temperature reading.
-
Material
Sensor: PEEK
Heat contact nut: stainless steel 1.4435
Sealing: Chemraz -
Dimension
Coil: outside diameter: appr. 47 mm inside diameter: appr. 15 mm
-
Process temperature
Max. 125°C (short time up to 140°C)
max. 257°F (short time up to 284°F) -
Process pressure
Max. 16 bar at 90 °C
(Max. 232 psi at 194 °F) -
Temperature sensor
Integrated Pt100 in a heat contact nut
-
Ex certification
ATEX
-
Connection
Process connections: dairy fitting, Clamp, thread 1,5", Varivent, APV, Perlick, SMS cable: fixed cable connection.
-
Ingress protection
IP67
-
Additional certifications
Calibration certification.
