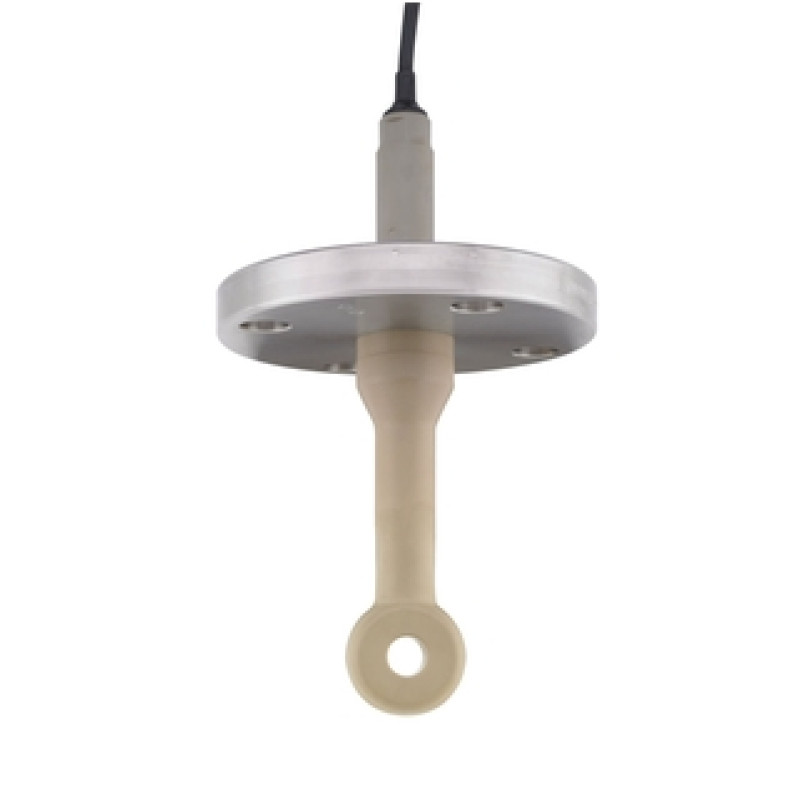

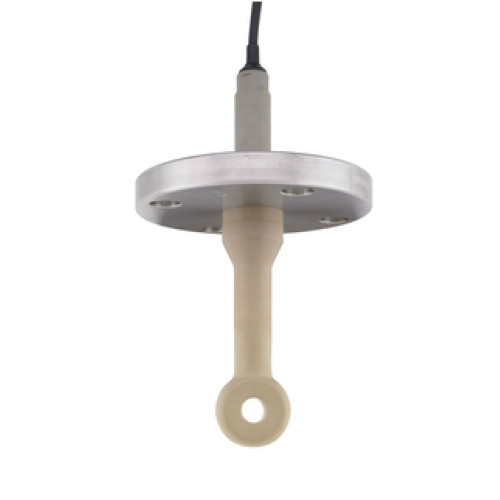

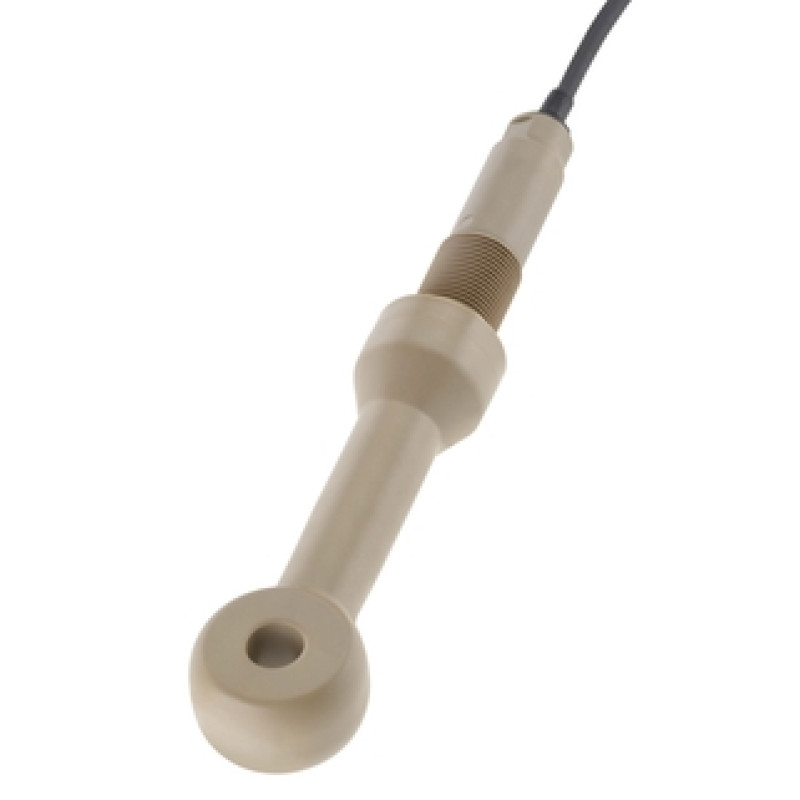

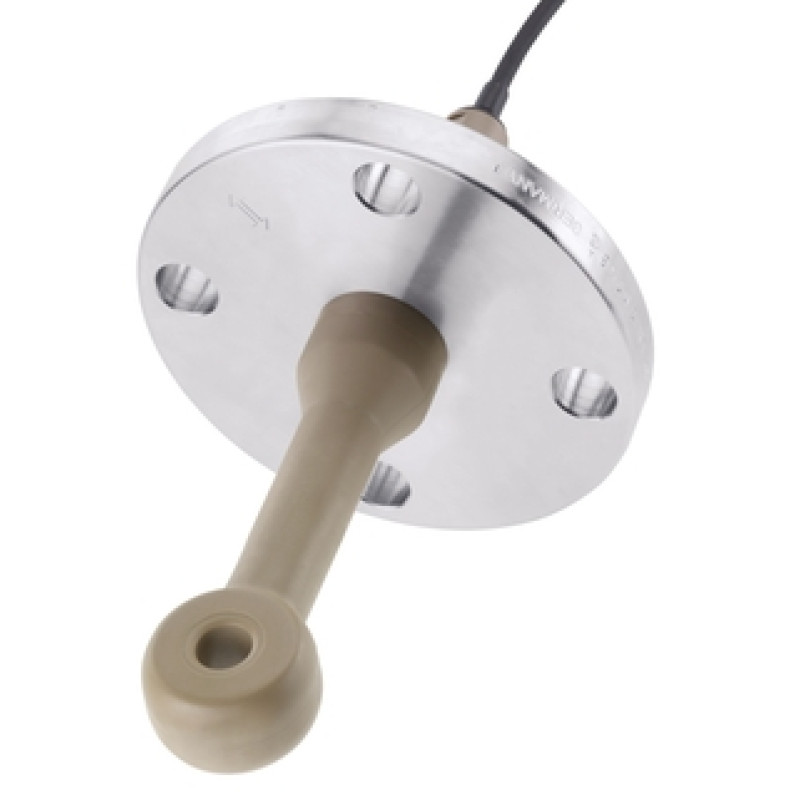

CLS50D Indumax Digital conductivity sensor
- Brand: EH
- Product Code: CLS50D
- Availability: In Stock
-
4,334.40€
- Ex Tax: 3,612.00€
-
Measuring principle
Inductive
-
Application
Chemical industry, process
-
Characteristic
Analog or digital, inductive conductivity sensor for standard, Ex and
high-temperature applications -
Measurement range
2µS/cm to 2000 mS/cm
-
Measuring principle
Inductive conductivity measurement
-
Design
No direct contact with the media because of the sensor coating made of highly resistant material
-
Material
PEEK or PFA
-
Dimension
Electrode:
Outside diameter: 47.5 mm (1.87 inch)
Inside diameter: 15 mm (0.59 inch)
Inside diameter (PEEK version): 15.5 mm (0.61 inch) -
Process temperature
PEEK: max. 125°C (max. 260 °F)
PFA: max. 110°C (max. 230 °F) -
Process pressure
PEEK: max. 21 bar (max. 304.5 psi)
PFA: max. 17 bar (max. 246.5 psi) -
Temperature sensor
Integrated Pt1000
-
Ex certification
ATEX, IECEx, NEPSI, FM, CSA, TIIS, EAC
-
Connection
Process connection: NPT1", DN50, AINSI, JIScable: fixed cable connection
-
Ingress protection
IP 68 / NEMA type 6
-
Additional certifications
Calibration certification of the cell constant
