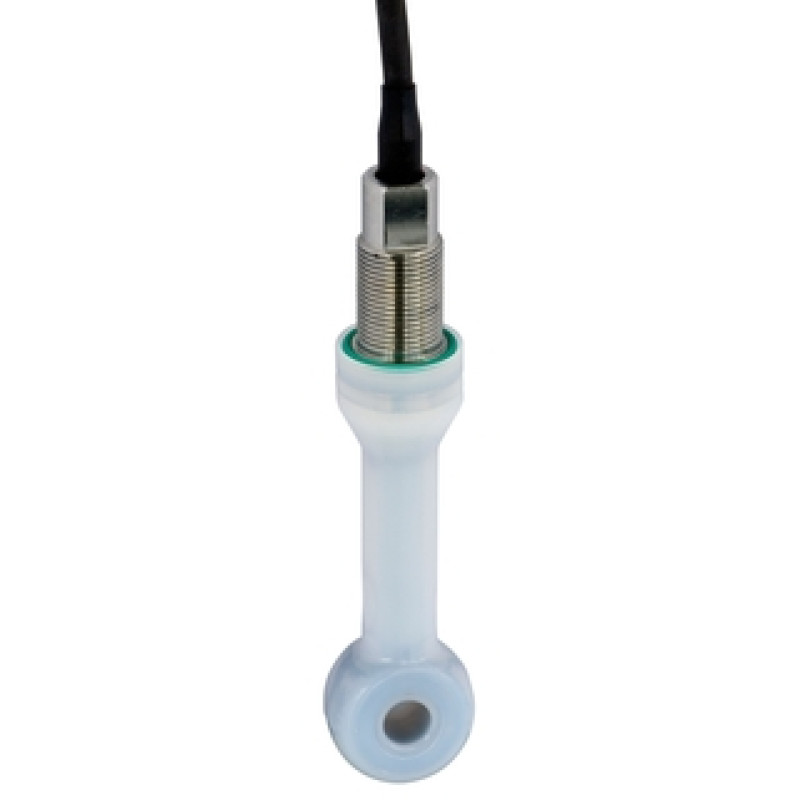

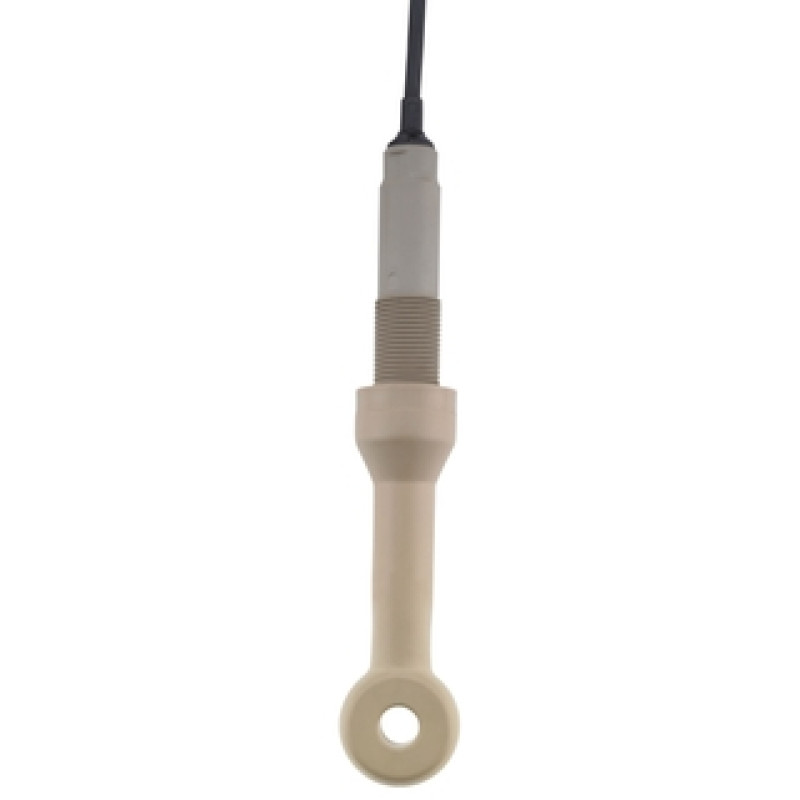

CLS50 Indumax Analog conductivity sensor
- Brand: EH
- Product Code: CLS50
- Availability: In Stock
-
4,066.56€
- Ex Tax: 3,388.80€
-
Measuring principle
Inductive
-
Application
Waste water, process
-
Characteristic
Inductive conductivity cell made of highly resistant material for conductivity and concentration neasurements in process applications.
-
Measurement range
2µS/cm - 2000 mS/cm
-
Measuring principle
Inductive conductivity measurement
-
Design
- No direct contact with the media because of the sensor coating made of highly resistant material.
-
Material
PEEK or PFA
-
Dimension
Electrode: outside diameter: appr. 47 mm inside diameter: appr. 15 mm
-
Process temperature
max. 180°C (PEEK)
(356°F)max. 125°C (PFA)
(254°F) -
Process pressure
max. 20 bar (PEEK)
(290 psi) max. 16 bar (PFA)
(233 psi) -
Temperature sensor
Integrated Pt100
-
Ex certification
ATEX
-
Connection
Process connection: NPT1", DN50, AINSI, JIScable: fixed cable connection.
-
Ingress protection
IP67
-
Additional certifications
Calibration certification of the cell constant.
