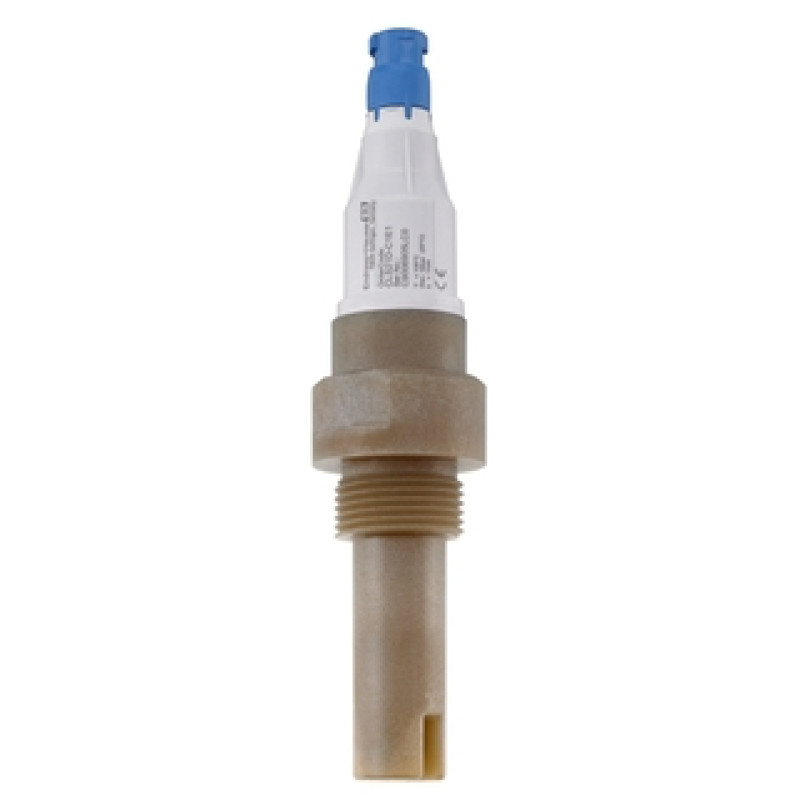

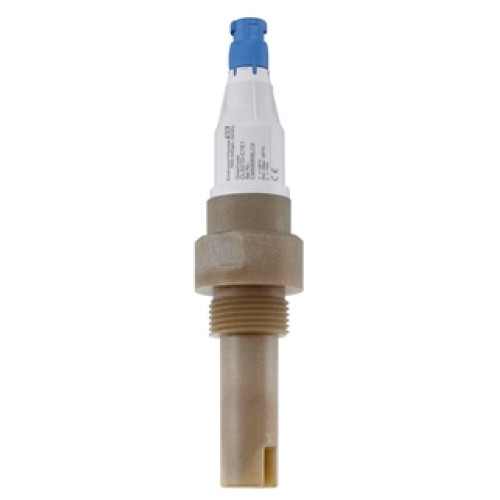

CLS21D Condumax Digital conductivity sensor
- Brand: EH
- Product Code: CLS21D
- Availability: In Stock
-
4,057.92€
- Ex Tax: 3,381.60€
-
Measuring principle
Conductive
-
Application
Water, waste water, process, media separation, industrial water
-
Characteristic
2-electrode system for application in the middle application range
-
Measurement range
k=1: 10 µS/cm to 20 mS/cm
-
Measuring principle
Conductive conductivity cell with graphite electrodes for applications in the middle range
-
Design
2-electrode system with parallel arranged electrodes
-
Material
Sensor shaft: PES
Electrodes: graphite -
Dimension
Diameter: 24 mm (0.94 inch)
Length: 61 mm (2.40 inch) -
Process temperature
-20 to 135 °C at 3.5 bar abs
(-4 to 275 °F at 50 psi) -
Process pressure
17 bar abs at 20 °C
(246 psi at 68 °F) -
Temperature sensor
NTC 30K
-
Ex certification
ATEX, NEPSI, EAC
-
Connection
Process connection: DN25, DN40, G1, NPT 1"
Cable: Memosens connector CYK10 -
Ingress protection
IP68 (connector)
