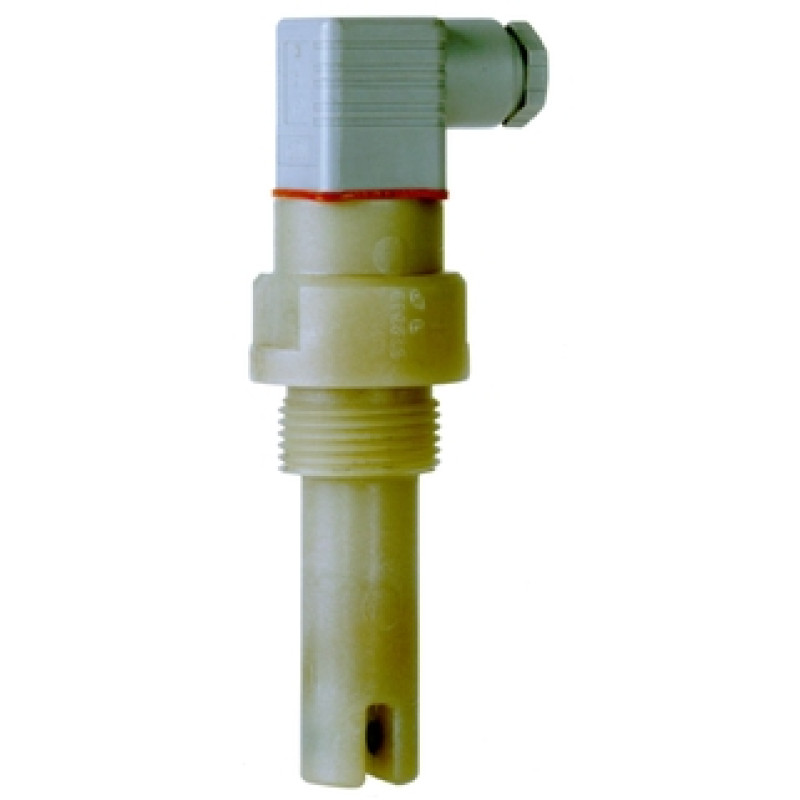

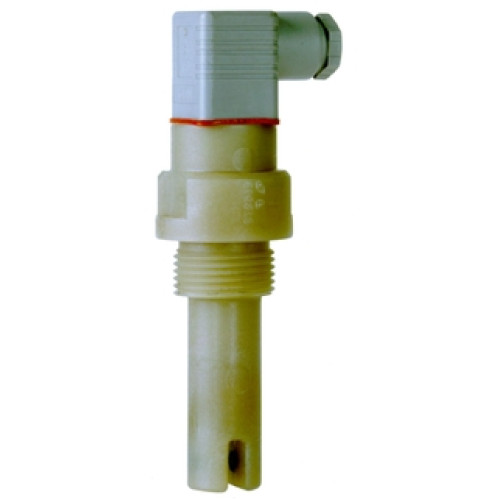

CLS21 Condumax Analog conductivity sensor
- Brand: EH
- Product Code: CLS21
- Availability: In Stock
-
3,415.68€
- Ex Tax: 2,846.40€
-
Measuring principle
Conductive
-
Application
Water, waste water, process, media separation, industrial water.
-
Characteristic
2-electrode system for application in the middle application range.
-
Measurement range
k=1: 10,0 µS/cm - 20,0 mS/cm
-
Measuring principle
Conductive conductivity cell with graphite electrodes for applications in the middle range.
-
Design
2-electrode system with parallel arranged electrodes
-
Material
Cell shaft: PES
Electrodes: graphite -
Dimension
Diameter: 24 mm
(0.936 inch)
Length: 61 mm
2.37 inch) -
Process temperature
max. 135°C
(max. 275°F) -
Process pressure
max. 16 bar at 20°С
(max. 232psi at 68°F) -
Temperature sensor
Optional with integrated Pt100 or PTC temperature sensor.
-
Ex certification
ATEX
-
Connection
Process connection: DN25, DN40, G1", Cable: 4-pole connector with thread Pg9 or fixed cable.
-
Ingress protection
IP65 (connector)IP67 (fixed cable)
