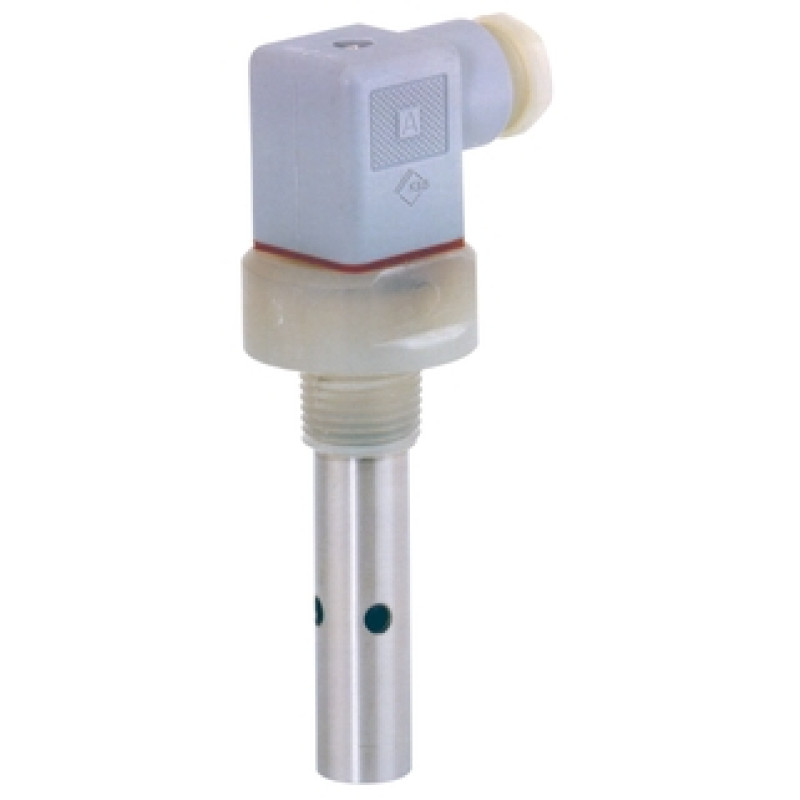

CLS19 Condumax Analog conductivity sensor
- Brand: EH
- Product Code: CLS19
- Availability: In Stock
-
976.32€
- Ex Tax: 813.60€
-
Measuring principle
Conductive
-
Application
Pure and ultrapure water
-
Characteristic
2-electrode conductivity cell for pure water applications.
-
Measurement range
k=0,01: 0-20 µS/cm
k=0,1: 0-200 µS/cm -
Measuring principle
Conductive conductivity cell.
-
Design
2-electrode conductivity cell with coaxially arranged electrodes
-
Material
Cell shaft: PES
Electrode: Stainless steel 1.4571 -
Dimension
Electrode diameter: 16 mm
(0.62 inch) -
Process temperature
max. 60°C
max. 140°F -
Process pressure
max. 6 bar at 20°C
(max.87 psi at 68°F) -
Temperature sensor
Optional with integrated Pt100
-
Connection
Process connection: NPT 1/2"
cable:4-pole DIN-connector with Pg9 -
Ingress protection
IP65
-
Additional certifications
Quality certification
