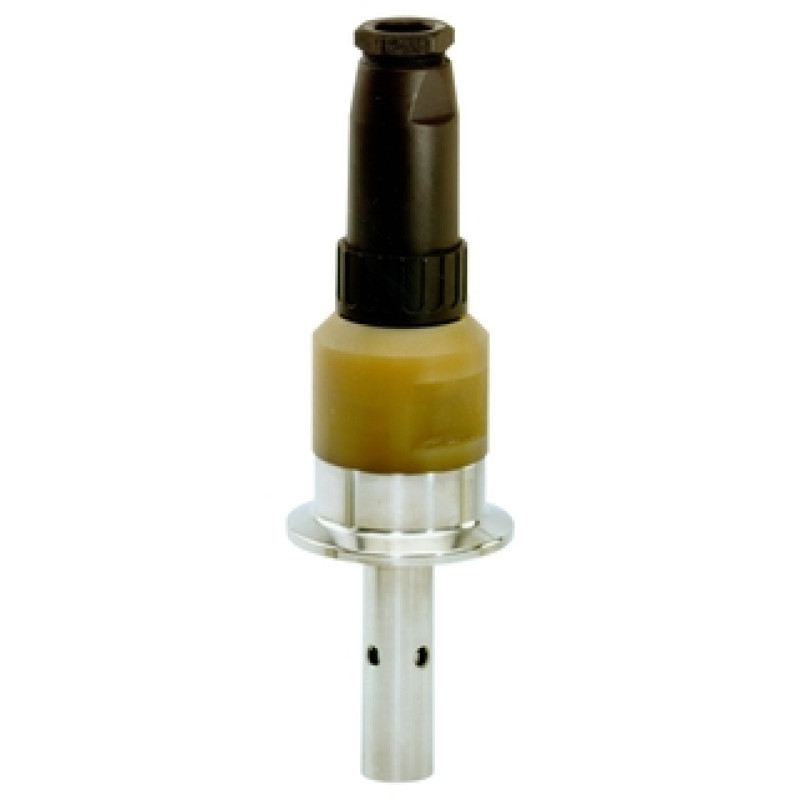

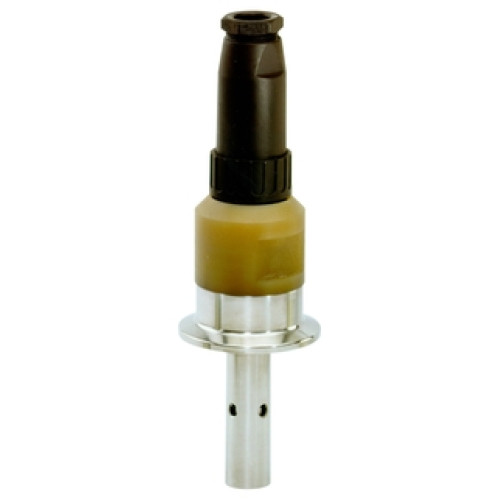

CLS15 Condumax Analog conductivity sensor
- Brand: EH
- Product Code: CLS15
- Availability: In Stock
-
2,845.44€
- Ex Tax: 2,371.20€
-
Measuring principle
Conductive
-
Application
Water, power plant, process
-
Characteristic
2-electrode conductivity cell for pure and ultrapure water
-
Measurement range
k=0,01: 0-20 µS/cm
k=0,1: 0-200 µS/cm -
Measuring principle
Conductive conductivity cell with polished stainless steel electrodes
-
Design
2-electrode conductivity sensor with coaxially arranged electrodes, electropolished
-
Material
Electrode: 1.4435
Electrode shaft: PES -
Dimension
Electrode diameter: 16 mm
(0.62 inch)
Electrode length: appr. 55 mm
(2.14 inch) -
Process temperature
max. 130°C (150°C / 30 min.)
(max. 266°F (302°F/30 min.) -
Process pressure
max. 12 bar at 20°C
(174 psi at 68°F) -
Temperature sensor
Pt100
-
Ex certification
ATEX
-
Connection
Process connection: 1/2" NPT, 3/4" NPT, 1 1/2" Clamp
cable : 4-pole SXP connector or fixed cable -
Ingress protection
IP67
-
Additional certifications
Calibration certification of the cell constante.
