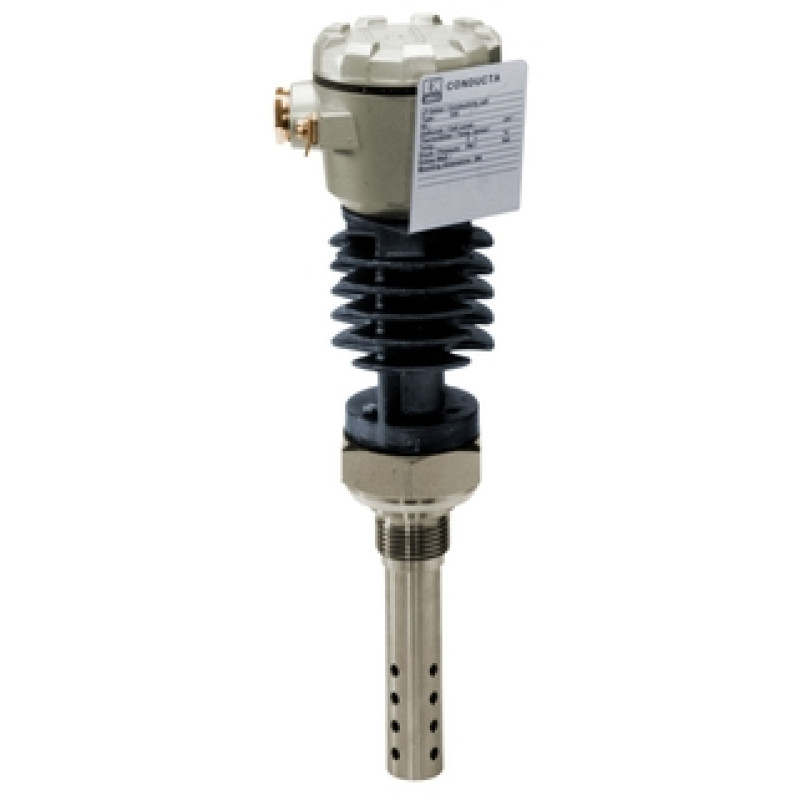

CLS13 Condumax Analog conductivity sensor
- Brand: EH
- Product Code: CLS13
- Availability: In Stock
-
7,888.32€
- Ex Tax: 6,573.60€
-
Measuring principle
Conductive
-
Application
Process, power plant
-
Characteristic
2-electrode conductivity cell for high temperature applications.
-
Measurement range
k=0,01: 0-20,0 µS/cm
k=0,1: 0-200,0 µS/cm -
Measuring principle
Coaxially arranged electrodes for high temperature applications
-
Design
2-electrode conductivity cell with coaxially arranged electrodes
Connection head and cooling body made of casting aluminium with fixed cable connection PG16 -
Material
Electrode: 1.4571
Sealing: Kalrez, ceramic -
Dimension
Electrode diameter: 25 mm (0.984 inch)
Immersion depth: 50 to 115 mm (1.97 to 4.48 inch)
Weight: 3kg -
Process temperature
max. 250 °C (482 °F)
-
Process pressure
max. 40 bar (580 psi)
-
Temperature sensor
Integrated Pt100
-
Ex certification
ATEX
-
Connection
Process connection: G1"
-
Ingress protection
IP67
-
Additional certifications
Calibration certificate with cellconstant
