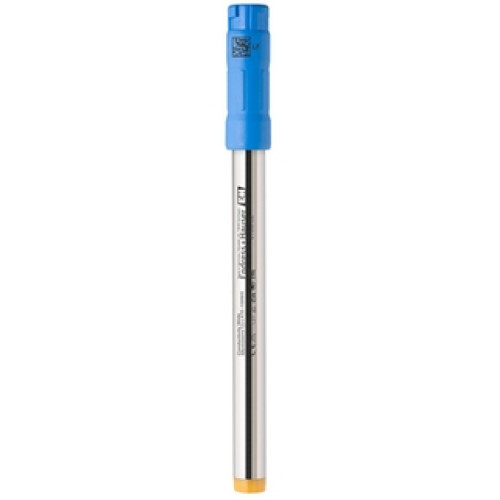

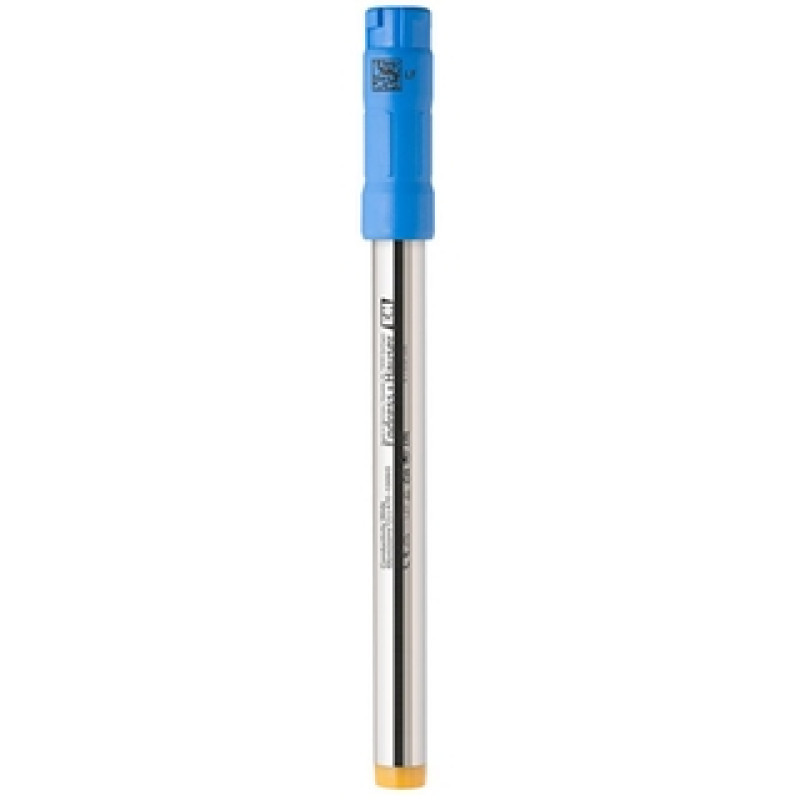

CLL47E Memosens Digital conductivity sensor
- Brand: EH
- Product Code: CLL47E
- Availability: In Stock
-
2,764.80€
- Ex Tax: 2,304.00€
-
Measuring principle
Conductive
-
Application
Measurements where a broad conductivity measurement range in one system is needed
-
Characteristic
Digital Memsoens 2.0 conductive conductivity sensor with four platinum electrodes for a broad measuring range.
-
Measurement range
5 μS/cm to 200 mS/cm
-
Material
Stainless steel, ceramic, platinum
-
Dimension
Diameter: 12 mm (0.47 inch)
Shaft length: 120 mm (4.72 inch) -
Process temperature
0 to 100 °C (32 to 212 °F)
-
Process pressure
1 bar, not intended for continuous measurement in process
-
Temperature sensor
Pt1000
-
Connection
Inductive, digital connection head with Memosens 2.0 technology
-
Ingress protection
IP68
