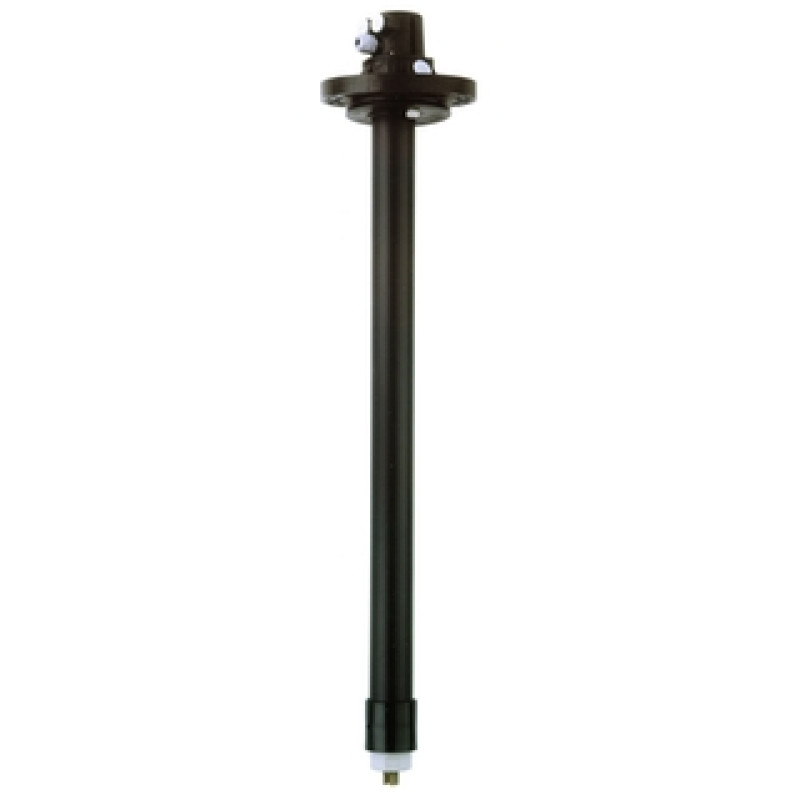

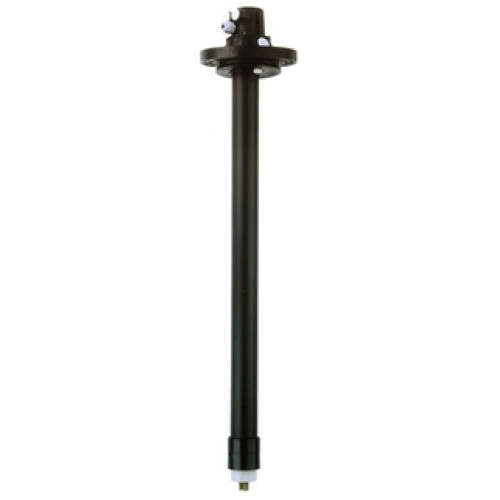

CLA111 Dipfit Conductivity assembly
- Brand: EH
- Product Code: CLA111
- Availability: In Stock
-
2,283.84€
- Ex Tax: 1,903.20€
-
Measuring principle
Conductive
-
Application
Water, waste water, process
-
Characteristic
Open and closed tank, open channel
-
Design
For use with G1" or G3/4" thread-bayonet-type holder system
Variable holder length
Process connection with fixed or sliding flange -
Material
Sensor holder: PP-GF 20
Immersion tube: PP -
Dimension
Length: 500 to 3000 mm (19.7 to 118 inch), special lengths on request
-
Process temperature
Max. 80 °C (176 °F)
-
Process pressure
Max. 4 bar at 20 °C
(Max. 58 psi at 68 °F)
