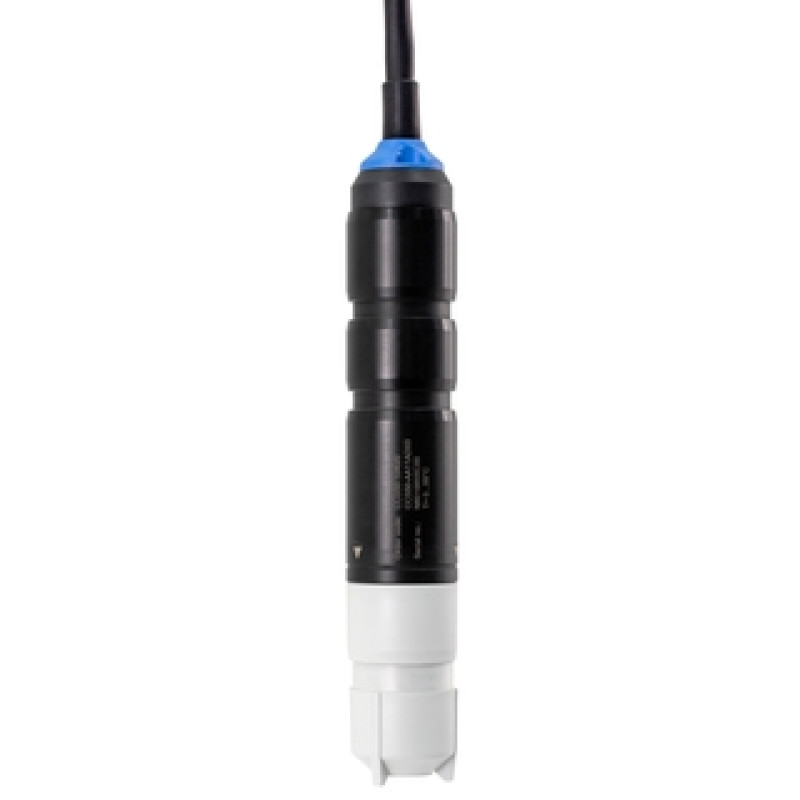

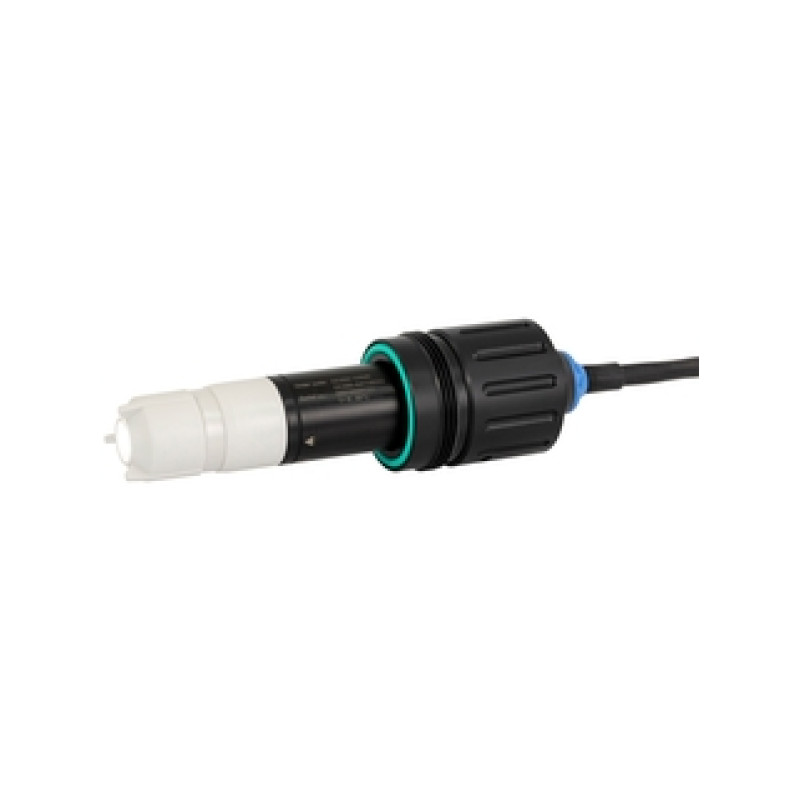

CCS50 Analog chlorine dioxide sensor

Previous: Chlorine dioxide CCS240, Trace Chlorine dioxide CCS241

• Measuring principle

  Chlorine dioxide

• Application

  Guarantees reliable disinfection in drinking water
  Prevents the growth of biofilms and pathogens in cooling water
  Ensures food quality
  Ensures the absence or presence of chlorine dioxide in Utilities

• Characteristic

  Amperometric measurement of dissolved chlorine dioxide

• Measurement range

  Trace: 0 to 5 mg/l ClO2
  Standard: 0 to 20 mg/l ClO2

• Measuring method

  Closed, membrane covered measuring cell
  Reduction of chlordioxide at the cathode

• Design

  Closed amperometric 2-electrode measuring cell with PVDF membrane

• Material

  Sensor shaft: POM
  Membrane: PVDF
  Membrane cap: PVDF
  Sealing ring: FKM

• Dimension

  Diameter: 25 mm (0.98 inch)
  Length: 126 mm (4.96 inch)

• Process temperature

  0 to 55 °C (32 to 130°F), non-freezing

• Process pressure

  Max.1 bar (max. 14.5 psi)

• Temperature sensor

  10k NTC

• Connection

  Analog with fixed cable
