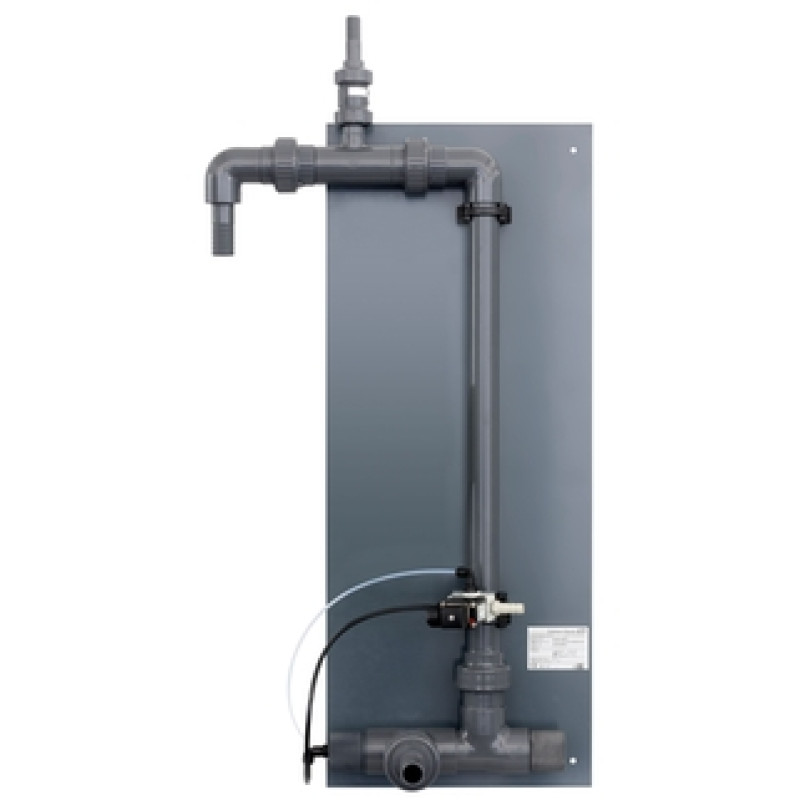

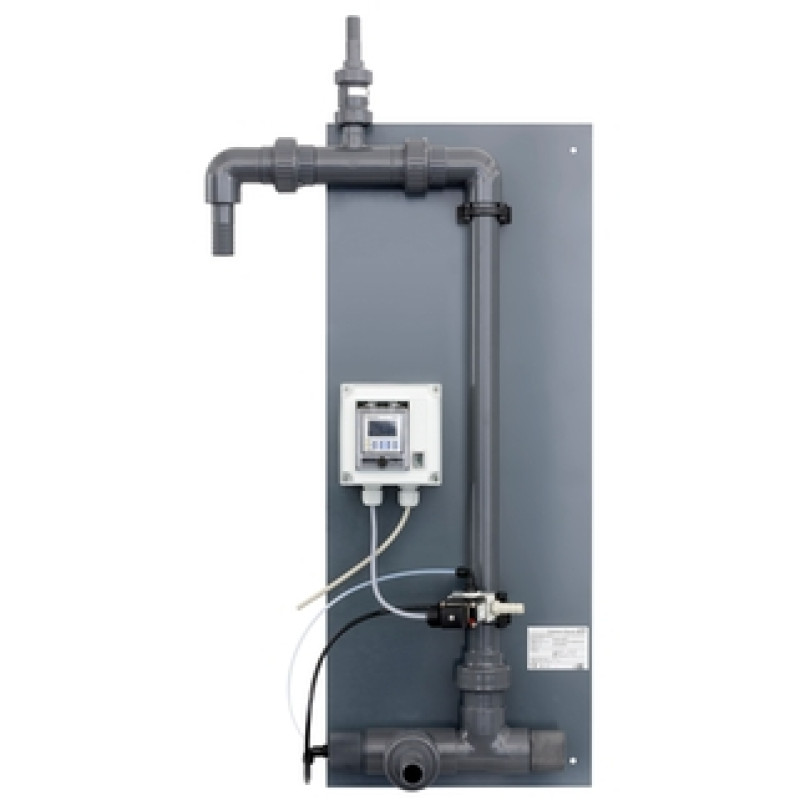

CAT810 Liquiline System Sample preparation
- Brand: EH
- Product Code: CAT810
- Availability: In Stock
-
7,718.40€
- Ex Tax: 6,432.00€
-
Measuring principle
Colorimetric
-
Characteristic
Automatic sample preparation system for supplying process measuring devices with filtered samples from pressurized pipes
-
Size
Panel version:
870 x 350 x 177 mm
34.25 x 13.78 x 6.97 inch
Prepared for stand housing CA80:
828 x 327 x 327 mm
32.6 x 12.87 x 12.87 inch
Basic version:
811 x 303 x 131 mm
31.93 x 11.93 x 5.16 inch -
Design
Back-wash filter system with various mounting options:
Panel version, Prepared for stand housing of CA80, Basic version - filter unit -
Process temperature
4 to 40 °C (39 to 104 °F)
-
Ambient temperature
4 to 40 °C (39 to 104 °F)
-
Process pressure
1.5 to 4.0 bar (21.76 to 58.01 psi)
For optional automatic cleaning:
2.0 to 5.0 bar (29.0 to 72.5 psi); but at least 0.5 bar (7.3 psi) > process pressure -
Specials
Optional back-flush with pressurizd air or water
Controling and parametrition via Lquiline System CA80
Stand-alone version with time-control available -
Application
Sampling from pressurized pipes
Preliminary and secondary clarification of municipal and industrial wastewater treatment plants
Sampling of aqueous media from industrial processes -
Power supply
100 to 120/200 to 240 V AC ±10%, 50/60 Hz
