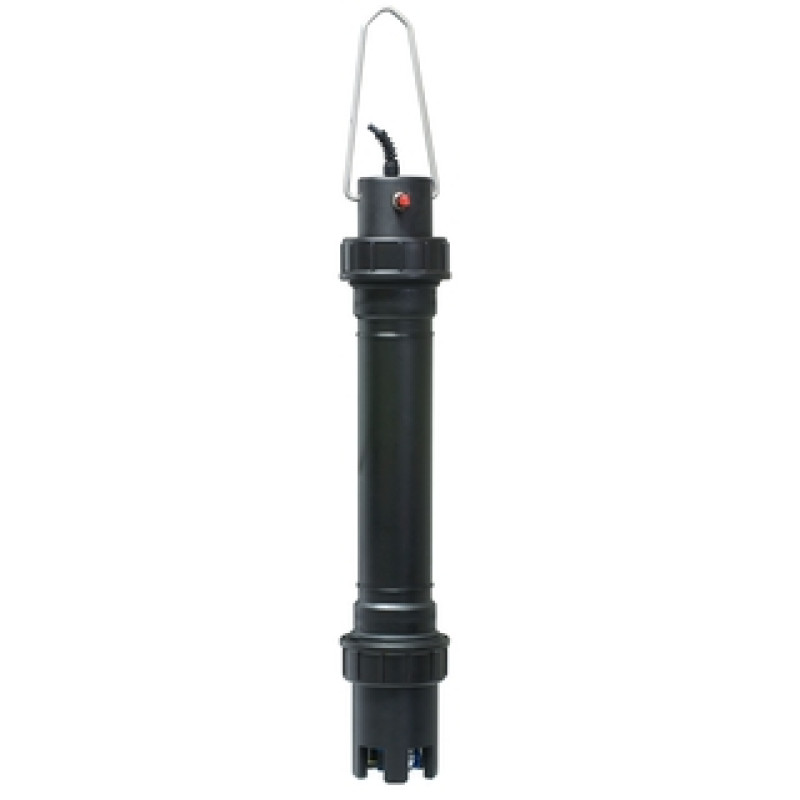

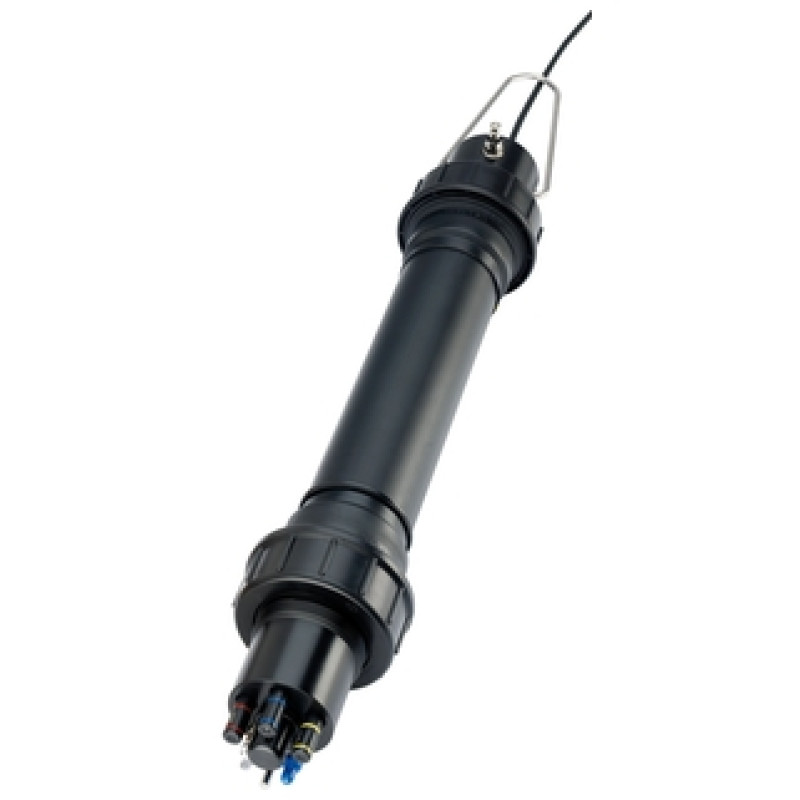

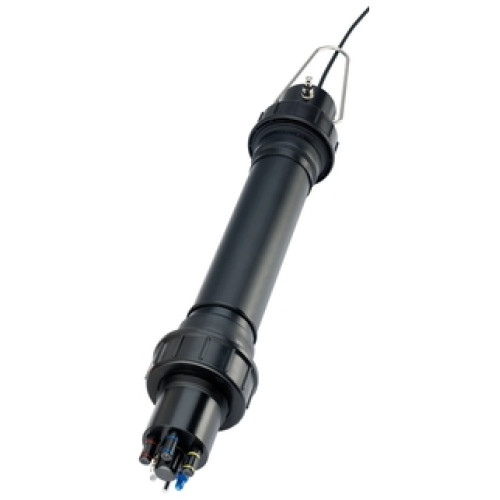

CAS40D ISEmax Digital ammonium and nitrate sensor
- Brand: EH
- Product Code: CAS40D
- Availability: In Stock
-
15,333.12€
- Ex Tax: 12,777.60€
-
Measuring principle
Potentiometric / ISE
-
Characteristic
Online measurement of nutrient parameters in
municipal wastewater treatment plants
Ion-selective electrode system for the continuous measurement of
ammonium and nitrate -
Size
Diameter: 112 mm (4.41 inch)
Immersion depth: 510mm (20.08 inch) -
Design
Ion-selective electrode(s) for ammonium and/or nitrate, potassium or chloride
pH - (Reference) electrode
Ion-selective electrode for compensating cross-interference
Temperature sensor -
Process temperature
2 °C to 40°C (36 to 100 °F)
-
Ambient temperature
-20 °C to 50 °C (-4 to 120 °F)
-
Process pressure
400 mbar (160 in H2O) max. permitted overpressure
-
Application
Wastewater treatment plants
-
Measurement range
Ammonium:
0.1 to 1000 mg/l (NH4-N)
Nitrate:
0.1 to 1000 mg/l (NO3-N)
Potassium:
1 to 1000 mg/l
Chloride:
1 to 1000 mg/l
